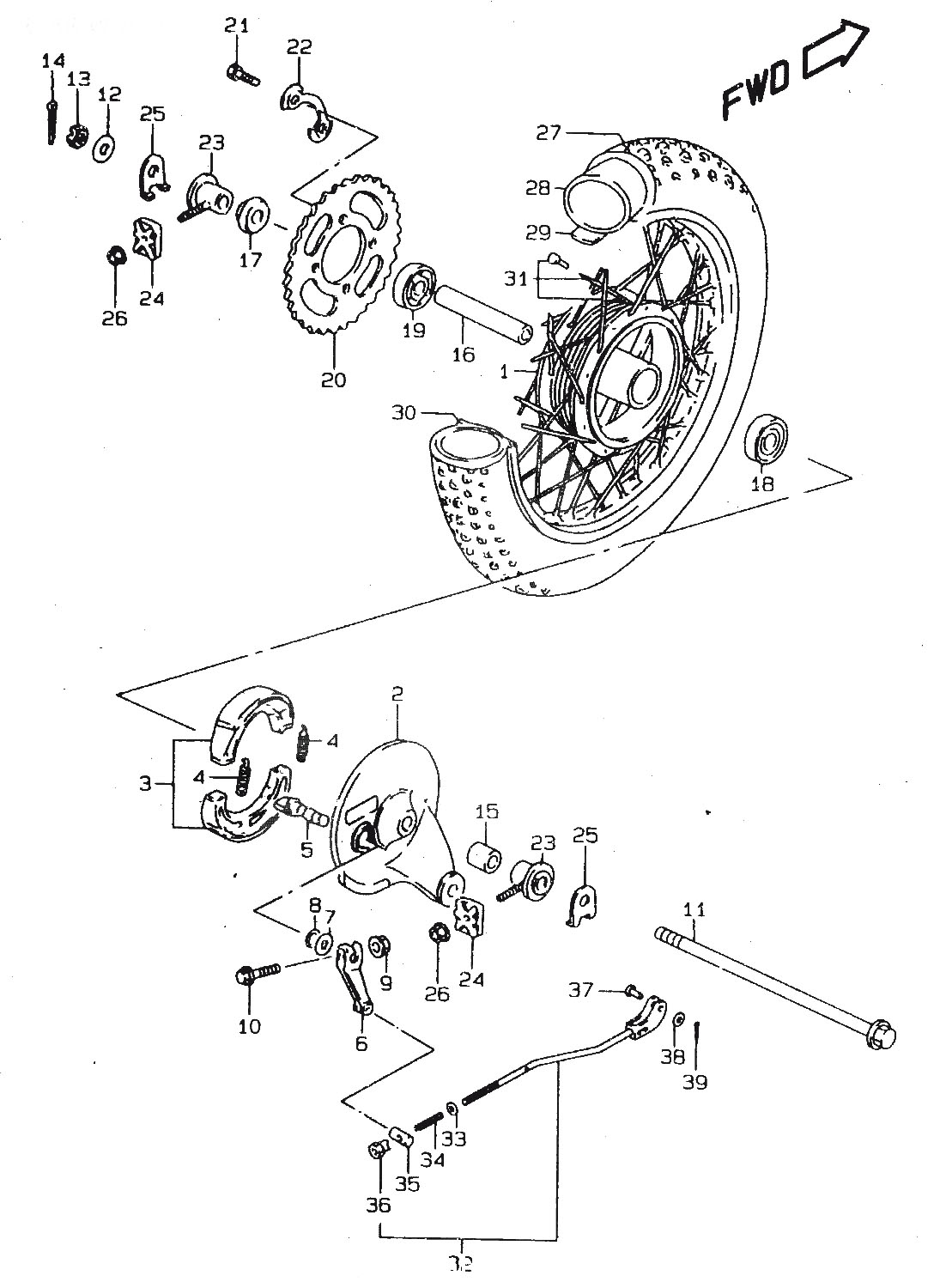

1
64110-46401
DRUM, REAR HUB
1580:-
2
64210-46024
PANEL, REAR BRAKE ANCHOR
1075:-
3
54401-43810
SHOE SET, BRAKE
419:-
4
09443-07025
SPRING, åtgår 2st
29:-
5
54441-29305
CAM, BRAKE
148:-
6
64451-17300
LEVER, REAR BRAKE CAM
562:-
7
09160-14055
WASHER
33:-
8
09280-14011
O RING (D:2.5,ID:13.8)
70:-
11
64711-04711
AXLE, REAR
333:-
15
09180-12092
SPACER, RH (12.1X22X22)
73:-
16
09180-12078
SPACER, HUB (12.6X19X91)
133:-
17
64750-46000
SPACER, REAR AXLE LH
78:-
18
08143-63017
BEARING, LH
379:-
20
64511-46431
SPROCKET, REAR (NT:34)
524:-
21
09100-08140
BOLT, åtgår 4st
27:-
22
09169-08011
WASHER, åtgår 2st
28:-
23
61410-04701
ADJUSTER, CHAIN, åtgår 2st
104:-
24
61431-04702
PLATE, ADJUSTER GUIDE, åtgår 2st
43:-
25
64712-20900
WASHER, CHAIN ADJUSTER, åtgår 2st
28:-
26
08319-31067
NUT, AXLE HOLDER, åtgår 2st
32:-
27
65100-46470
TIRE, REAR (3.00-12) IRC
795:-
28
65200-46410
TUBE, INNER
212:-
29
65261-46410
PROTECTOR, INNER TUBE
72:-
30
65311-46420
RIM, WHEEL (1.60X12)
1718:-
31
65320-46430
SPOKE SET, REAR WHEEL
362:-
32
43300-03400
ROD ASSY, REAR BRAKE
142:-
34
09440-09004
SPRING (M12MARK2,M15D,M12 OD=8(05(5.71))
27:-
35
09209-11002
PIN
28:-
37
09200-06013
PIN
30:-
