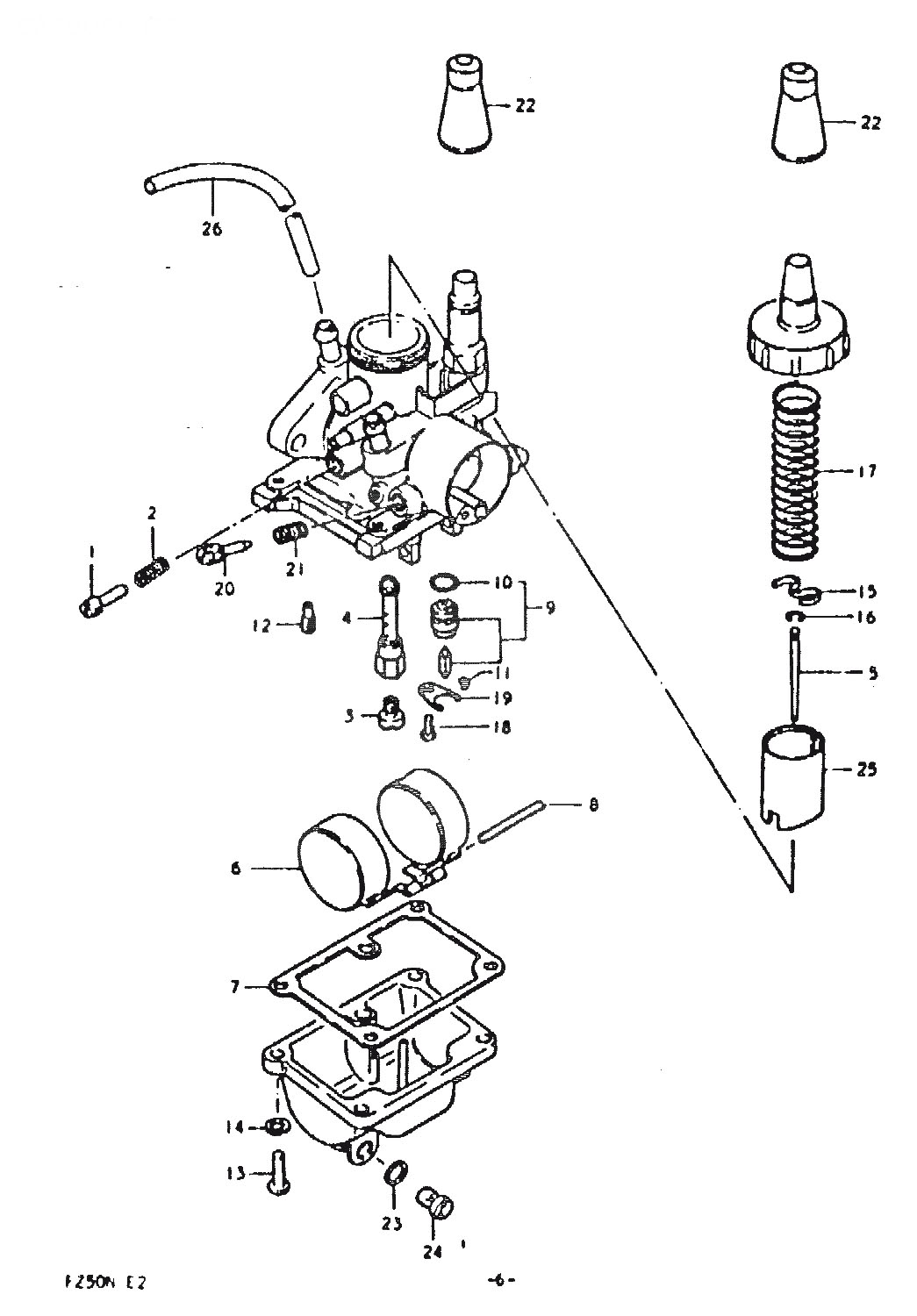

1
13267-01010
SCREW, THROTTLE STOP
65:-
2
13268-01010
SPRING (M12MARK2,M15D,M12M12MARK2,M15D,M12)
50:-
3
09491-57003
JET, MAIN
150:-
4
09494-00234
JET, NEEDLE (E-2)
*
5
13383-02400
NEEDLE, JET (3D13-3)
*
6
13252-02410
FLOAT
*
7
13251-02410
GASKET
90:-
8
13254-20010
.PIN, FLOAT
40:-
9
13370-02411
VALVE ASSY, NEEDLE
*
10
13374-47610
O RING
*
11
13377-02410
CLIP
95:-
12
09492-15002
JET, PILOT (15)
*
17
13573-46710
SPRING, THROTTLE VALVE
75:-
19
13373-46710
PLATE
85:-
20
13269-04010
SCREW, PILOT AIR
120:-
21
13268-01010
SPRING (M12MARK2,M15D,M12M12MARK2,M15D,M12)
50:-
22
13681-16601
BOOT, åtgår 2st
150:-
23
13249-05010
GASKET, DRAIN PLUG
20:-
24
13247-05010
PLUG, DRAIN
55:-
25
13551-02400
VALVE, THROTTLE (CA:2.0)
760:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
