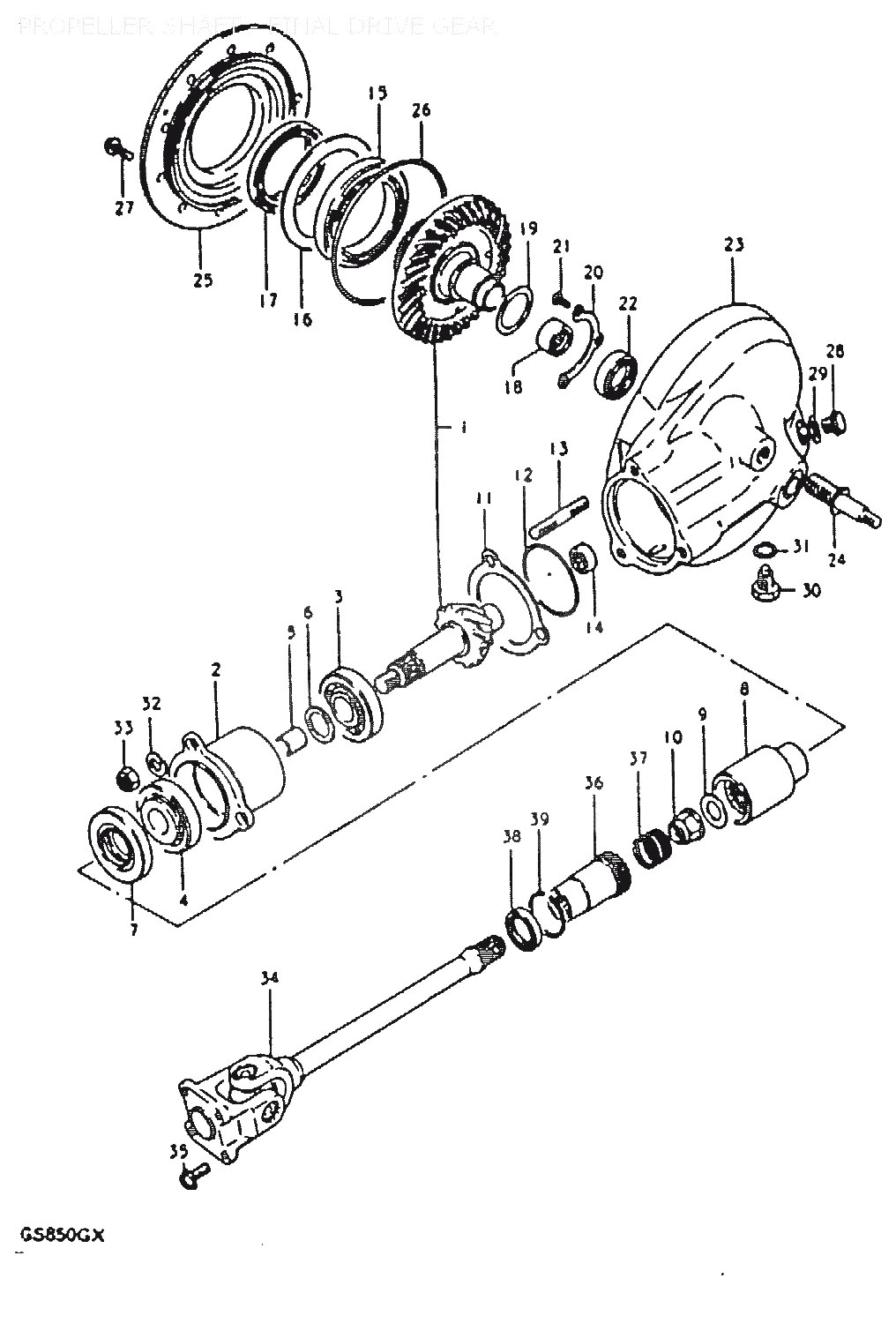

2
27441-45100
HOUSING, DRIVE BEVEL GEAR
550:-
3
09265-25013
BEARING, REAR
1250:-
5
09180-25057
SPACER
*
6
09181-25006
SHIM (T:1.60)
*
6
09181-25007
SHIM (T:1.62)
*
6
09181-25008
SHIM (T:1.64)
*
6
09181-25009
SHIM (T:1.66)
*
6
09181-25010
SHIM (T:1.68)
60:-
6
09181-25011
SHIM (T:1.70)
*
6
09181-25012
SHIM (T:1.80)
*
6
09181-25013
SHIM (T:1.90)
*
6
09181-25014
SHIM (T:2.00)
50:-
7
09283-32017
OIL SEAL
244:-
8
27172-45100
COUPLING, FINAL DRIVE DEAR
1310:-
9
09160-14021
WASHER, ROTOR (14X29X4)
85:-
10
09159-14010
NUT, RR PROP SHAFT COUP
180:-
11
27445-45100
SHIM (T:0.15)
*
11
27445-45102
SHIM (T:0.30)
*
11
27445-45101
SHIM (T:0.35)
*
11
27445-45103
SHIM (T:0.40)
*
12
09280-63004
O RING
65:-
14
09263-24012
BEARING (24X33X17)
745:-
15
09262-70001
BEARING, FINAL DRIVEN RH
2355:-
16
27327-45100
SHIM (T:0.35)
*
16
27327-45102
SHIM (T:0.40)
*
16
27327-45103
SHIM (T:0.50)
*
16
27327-45104
SHIM (T:0.60)
*
17
09289-70001
SEAL, FINAL DRIVEN GEAR OIL R
825:-
18
09263-35004
BEARING, LH
1180:-
19
27326-45104
SHIM (T:1.35)
*
19
27326-45100
SHIM (T:1.25)
*
19
27326-45101
SHIM (T:1.20)
*
19
27326-45103
SHIM (T:1.10)
*
19
27326-45102
SHIM (T:1.05)
*
20
27329-45100
HOLDER, BEARING
110:-
22
09283-30028
OIL SEAL (30X42X7)
150:-
23
27450-45102
CASE, FINAL GEAR
*
24
09108-10025
.STUD BOLT
*
25
27460-45101
CASE, FINAL GEAR BEARING
*
26
09280-00014
O RING
157:-
29
09168-14004
GASKET (14.1X18X1.5) (M12MARK2,M15D,M12 2 PCSO.M10-152331)
25:-
31
09168-14004
GASKET (14.1X18X1.5) (M12MARK2,M15D,M12 2 PCSO.M10-152331)
25:-
33
09159-10027
NUT, REAR CUSHION ROD RR, åtgår 3st
50:-
34
27100-45101
SHAFT, PROPELLER
*
34
27100-49110
SHAFT, PROPELLER
*
35
09103-08031
BOLT, åtgår 4st
*
35
09103-08050
BOLT, åtgår 4st
*
36
27171-45101
COUPLING, PROPELLER SHAFT
*
37
09440-27005
SPRING
*
38
09283-30026
SEAL, COUPLING OIL
170:-
39
09381-40003
CIRCLIP
75:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
