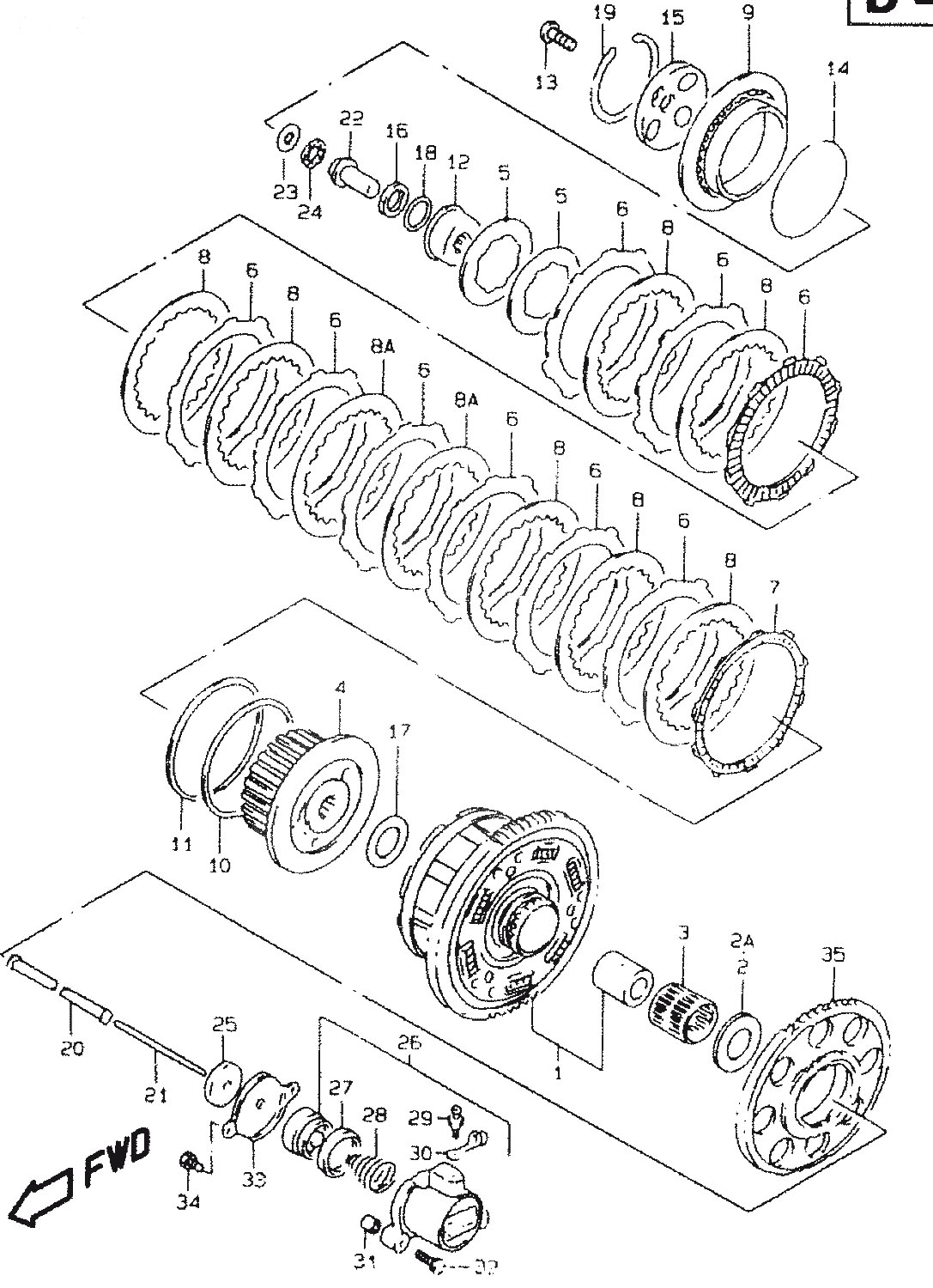

1
21200-31861
GEAR ASSY, PRIMARY DRIVEN
7403:-
2
09160-25037
WASHER (25X54X2.5)
144:-
3
09263-35017
BEARING (35X40X35.8)
654:-
5
21413-31E20
SPRING, CLUTCH, åtgår 2st
203:-
6
21441-31E00
PLATE, CLUTCH DRIVE NO.1, åtgår 9st
359:-
7
21442-31E00
PLATE, CLUTCH DRIVE
453:-
8
21451-31E00
PLATE, CLUTCH DRIVEN,NO.1, åtgår 7st
112:-
8
21451-31E10
PLATE, CLUTCH DRIVEN NO.2, åtgår 2st
120:-
9
21462-31E20
DISK, CLUTCH PRESSURE
1249:-
10
21471-31E20
SEAT, WAVE WASHER
199:-
11
21472-31E20
WASHER, CLUTCH PLATE
240:-
12
21611-31E20
HOLDER, CLUTCH SPRING
660:-
13
21614-31E20
SCREW, CLUTCH SPRING, åtgår 3st
48:-
14
21623-31E20
SEAT, CLUTCH SPRING
95:-
15
21463-40C01
LIFTER, CLUTCH PRESSURE DISK
738:-
16
09159-24010
NUT, CLUTCH SLEEVE HUB
179:-
17
09160-25056
WASHER (25X50X25)
157:-
18
09164-24006
WASHER (24.2X35X2)
55:-
20
23110-38B00
ROD, PUSH RH
320:-
21
23111-31301
ROD
272:-
22
23121-31E00
PIECE, CLUTCH PUSH
322:-
23
09160-15045
WASHER (15.5X28X1)
52:-
24
09263-15003
BEARING (15X28X2)
145:-
25
09285-06015
OIL SEAL (6X34X5.5)
120:-
27
23163-06B00
CUP
103:-
28
23164-05A00
SPRING
58:-
29
59121-01A00
BLEEDER
85:-
30
59122-01A00
CAP, BLEEDER
38:-
31
04211-09129
PIN, CL RLSE CYL, åtgår 2st
25:-
33
23117-46E00
COVER, CYLINDER
108:-
35
22721-27A03
GEAR, GENERATOR DRIVE
3723:-
