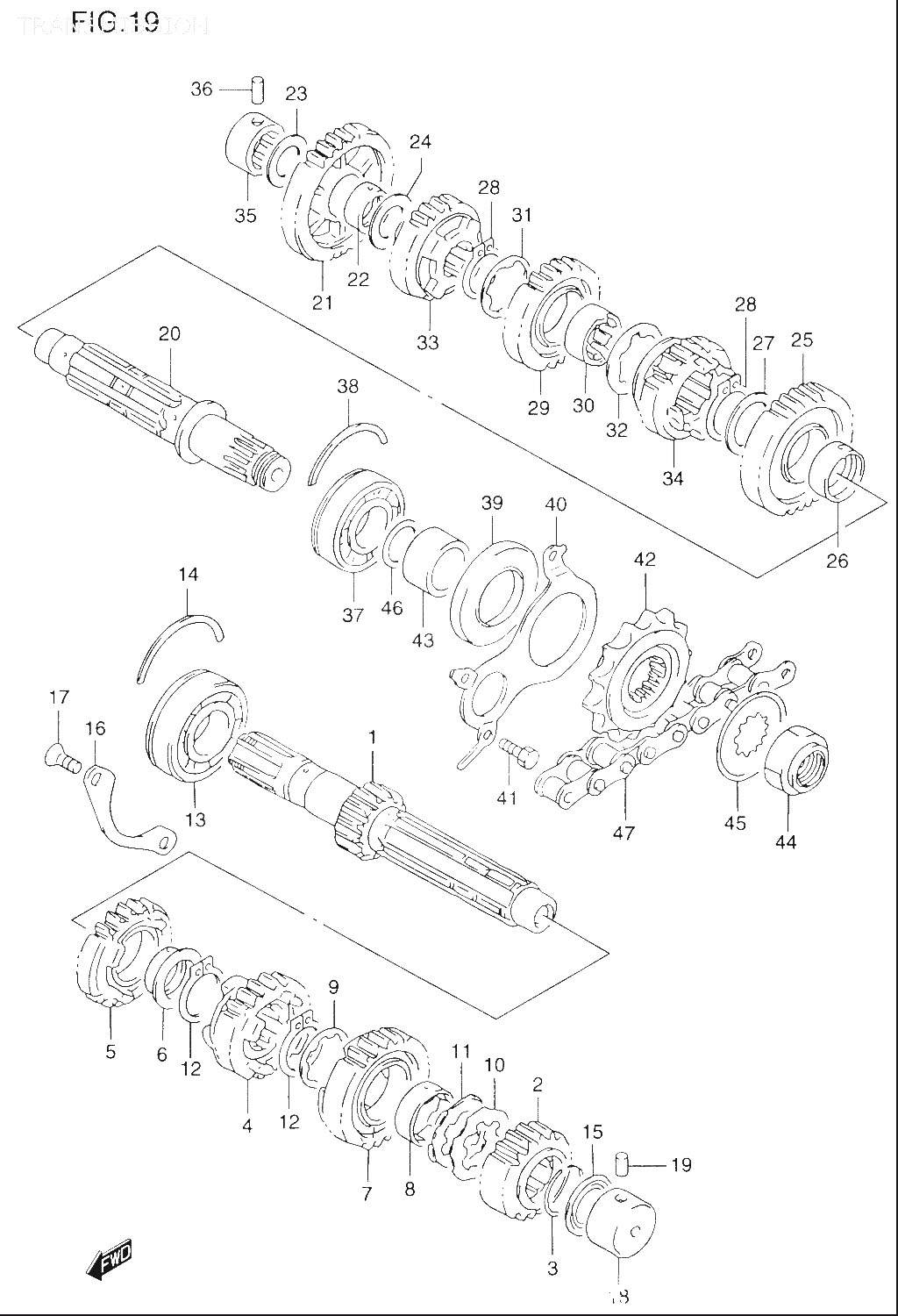

1
24121-40C21
SHAFT, COUNTER (NT:13)
3205:-
2
24221-40C00
GEAR, 2ND DRIVE (NT:19)
1505:-
3
09380-25013
CIRCLIP, 2ND DRIVE
55:-
4
24231-48B10
GEAR,3RD DRIVE,
2460:-
5
24241-48B50
GEAR,4TH DRIVE,
2230:-
6
24322-19F00
BUSH, 2ND DRIVEN
305:-
7
24251-48B30
GEAR,5TH DRIVE
2220:-
8
24252-48B00
BUSH
295:-
9
09167-25021
WASHER, 3RD DRIVEN
50:-
10
09167-25013
LOCK WASHER, 3RD DRIVEN
45:-
11
09169-25001
WASHER, 3RD DRIVEN LOCK
35:-
12
09380-25003
CIRCLIP, åtgår 2st
50:-
13
09262-25105
BEARING, LH (25X62X17)
1140:-
14
09390-62012
C RING, CNTR SHAFT BRG RH
115:-
15
09285-20006
SEAL, OIL
105:-
16
24741-27A00
RETAINER, CNTR SHAFT
130:-
17
02122-0612A
SCREW, åtgår 2st
35:-
18
09263-20049
BEARING, CNTR SHAFT, LH
1110:-
19
04221-07129
PIN
30:-
20
24131-40C21
SHAFT, DRIVE
3280:-
21
24311-48B20
GEAR, 1ST DRIVEN (NT:31)
*
22
24312-02F00
BUSH, 1ST DRIVEN
370:-
23
09181-20251
SHIM (T:1.0)
45:-
24
09181-22223
WASHER, 1ST DRIVEN LH
50:-
25
24321-48B10
GEAR, 2ND DRIVEN (NT:31)
2015:-
26
09300-28002
BUSH, 2ND DRIVEN
230:-
27
09181-28167
WASHER, 2ND DRIVEN (28X36X1.0
60:-
30
24332-48B01
BUSH
480:-
31
09167-28001
WASHER (28.1X38X1.0)
60:-
32
09167-28008
WASHER, LH (T:2)
90:-
34
24351-48B06
GEAR, 5TH DRIVEN (NT:21)
2000:-
35
09263-20040
BEARING, DRIVE SHAFT RH
955:-
36
04221-07209
PIN, DRIVE SHAFT BRG RH
30:-
37
09267-25011
BEARING, DRIVE SHAFT LH
2420:-
38
09390-62012
C RING, CNTR SHAFT BRG RH
115:-
39
09283-34005
SEAL, DRIVE SHAFT OIL
205:-
40
24751-40C01
RETAINER, DRIVE SHAFT
115:-
41
01500-0612A
BOLT, åtgår 4st
30:-
42
27510-17C10
SPROCKET, ENGINE (NT:15)
1160:-
43
09180-25100
SPACER (25X34X19)
240:-
44
09159-20004
NUT, ENGINE SPROCKET
245:-
45
09167-25019
WASHER (25X40X1.4)
35:-
46
09280-25001
O RING (D:1.0,ID:24.5)
25:-
47
27600-24F10-114
CHAIN ASSY,DRIV (GSF1200SAVCOLLER:GOLDRK GB50MF0Z1)
3280:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
