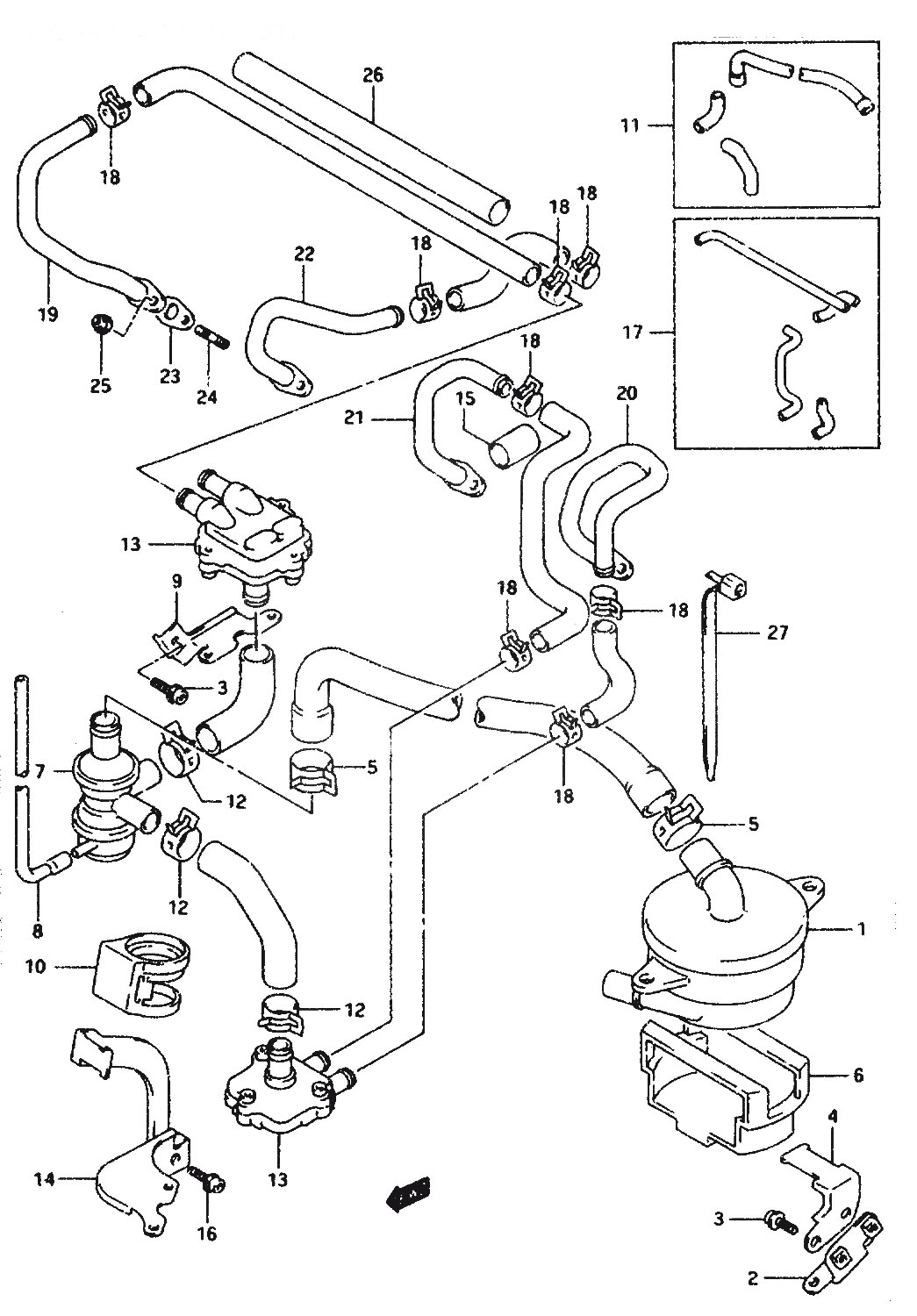

1
18700-48B03
CLEANER ASSY, 2ND AIR
*
1
18700-17C03
CLEANER ASSY, 2ND AIR
*
2
18760-46E00
BRACKET, 2ND AIR
*
4
18751-46E00
BRACKET, 2ND AIR CLEANER
*
5
09401-25402
CLIP, åtgår 2st
*
6
18774-46E00
CUSHION, 2ND AIR CLEANER
*
7
18510-46E00
VALVE ASSY, AIR SWITCHING
3920:-
8
09359-45852-600
HOSE, 2ND AIR VALVE VACUUM
195:-
9
18731-46E00
BRACKET, 2ND AIR VALVE
*
10
18487-01D00
CUSHION, AIR VALVE
475:-
11
18420-46810
HOSE SET, 2ND AIR NO.2
*
12
09401-21401
CLIP, åtgår 3st
*
12
09401-21403
CLIP, åtgår 3st
*
13
18450-48B00
VALVE ASSY, 2ND AIR REED, åtgår 2st
*
14
18720-46E00
BRACKET, REED VALVE LH
*
14
18720-46E01
BRACKET, REED VALVE LH
*
15
44312-46E00
PROTECTOR, REED VALVE
*
15
44312-46E01
PROTECTOR, REED VALVE
*
17
18410-46810
HOSE, SET, 2ND AIR NO. 1
*
18
09401-13408
CLIP, åtgår 8st
*
19
18440-46E00
PIPE, 2ND AIR NO.4
*
19
18440-46E10
PIPE, 2ND AIR NO.4
*
20
18410-46E00
PIPE, 2ND AIR NO.1
1095:-
21
18420-46E00
PIPE, 2ND AIR NO.2
875:-
22
18430-46E00
PIPE, 2ND AIR NO.3
*
24
01421-06165
STUD BOLT, åtgår 8st
25:-
26
44311-46E00
PROTECTOR, REED VALVE HOSE
*
26
44311-46E01
PROTECTOR, REED VALVE HOSE
*
27
09407-18402
CLAMP (L:165)
35:-
39
34850-50A00
GAUGE ASSY, WATER TEMPERATURE
1100:-
35
17981-17E00
HOSE, RESERVOIR TANK INLET
*
36
09401-08407
CLIP, åtgår 2st
*
37
17982-17E00
HOSE, RESERVOIR TANK INLET
*
38
09407-22404
KLEM
35:-
39
09407-18402
CLAMP (L:165), åtgår 2st
35:-
40
44552-24B00
MOLDING, REAR
220:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
