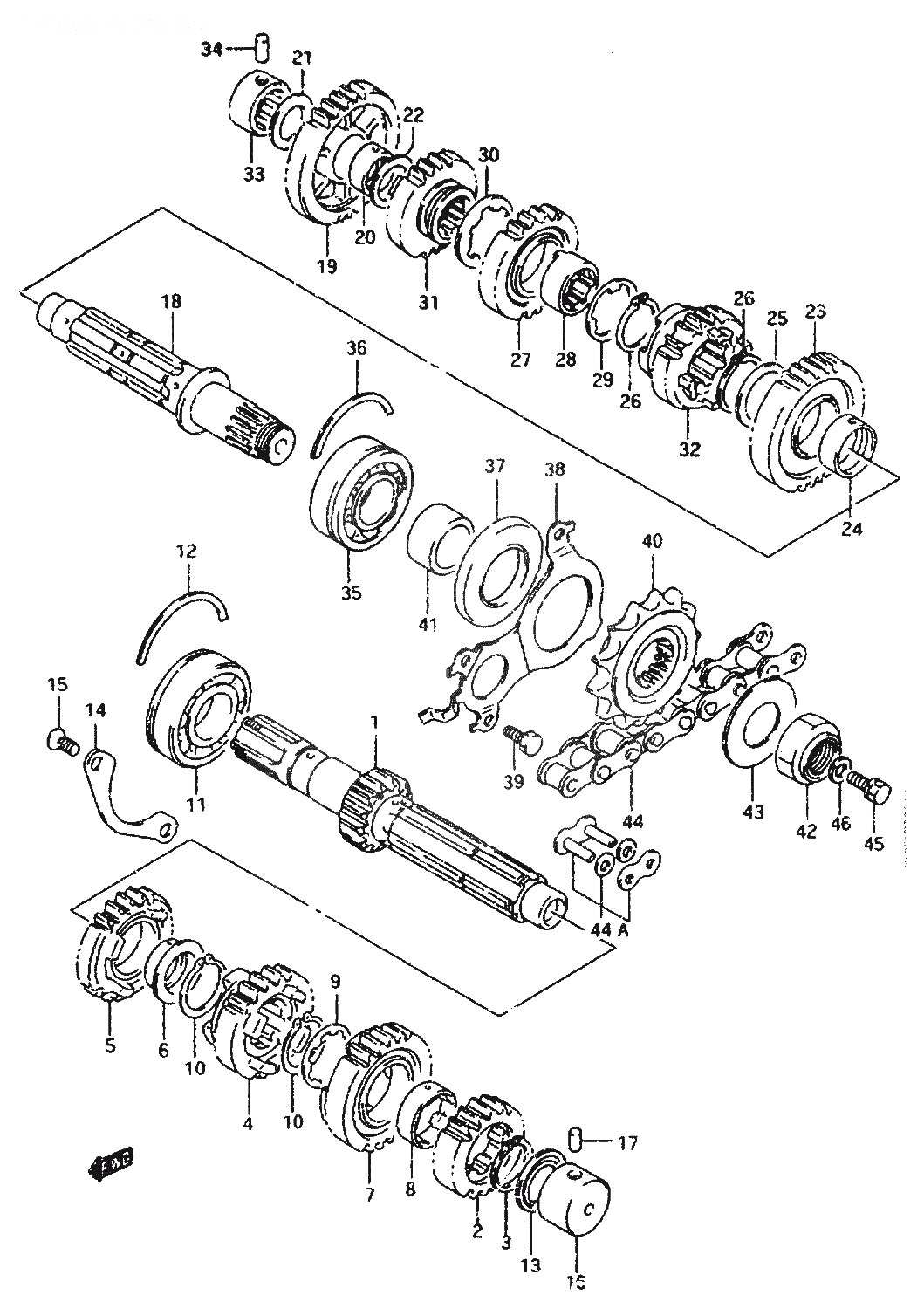

1
24120-26D10
COUNTERSHAFT (NT:14)
4650:-
2
24221-26D00
GEAR, 2ND DRIVE (NT:21)
2155:-
3
09380-28008
CIRCLIP
90:-
4
24231-26D02
GEAR, 3TH DRIVE (NT:22)
3090:-
5
24241-26D10
GEAR, 4TH DRIVE (NT:22)
*
6
09301-28001
BUSH, 3RD DRIVE GEAR
260:-
7
24251-26D01
GEAR, 5TH DRIVE (NT:26)
*
8
24332-24A00
BUSH
430:-
9
09167-28001
WASHER (28.1X38X1.0)
60:-
11
09262-25105
BEARING, LH (25X62X17)
1140:-
12
09390-62012
C RING, CNTR SHAFT BRG RH
115:-
13
09285-20006
SEAL, OIL
105:-
14
24741-27A00
RETAINER, CNTR SHAFT
130:-
15
02122-06167
SCREW, åtgår 2st
25:-
15
02122-06163
SCREW, åtgår 2st
20:-
17
04221-07129
PIN
30:-
18
24131-46E10
DRIVESHAFT
3975:-
19
24311-26D00
GEAR, 1ST DRIVEN (NT:38)
*
19
24311-26D10
GEAR, 1ST DRIVEN (NT:38)
*
19
24311-26D10
GEAR, 1ST DRIVEN (NT:38)
*
21
08211-20341
WASHER, RH
40:-
21
09181-20251
SHIM (T:1.0)
45:-
22
08211-22341
WASHER, LH
50:-
22
09181-22223
WASHER, 1ST DRIVEN LH
50:-
23
24321-26D01
GEAR, 2ND DRIVEN (NT:38)
*
24
09300-28002
BUSH, 2ND DRIVEN
230:-
25
09181-28195
WASHER, RR FINAL DR GR
60:-
27
24331-26D10
GEAR, 3RD DRIVEN (NT:31)
5405:-
29
09167-28001
WASHER (28.1X38X1.0)
60:-
30
09167-28008
WASHER, LH (T:2)
90:-
31
24341-26D00
GEAR, 4TH DRIVEN (NT:26)
2720:-
31
24341-26D11
GEAR, 4TH DRIVEN (NT:26)
2770:-
32
24351-26D21
GEAR, 5TH DRIVEN (NT:27)
2780:-
33
09263-20040
BEARING, DRIVE SHAFT RH
955:-
34
04221-07209
PIN, DRIVE SHAFT BRG RH
30:-
35
09262-28025
BEARING, DRIVE SHAFT, L
2370:-
36
09390-70001
C-RING, DRIVE SHAFT BRG, L
105:-
37
09283-36008
SEAL, DRIVE SHAFT OIL
330:-
38
24751-17E00
PLATE, OIL SEAL
225:-
40
27510-48B00
SPROCKET, ENGINE (NT:15)
1075:-
40
27510-46E00
SPROCKET, ENGINE (NT:16)
1260:-
41
09180-25098
SPACER (25X36X17.7)
*
42
09159-20004
NUT, ENGINE SPROCKET
245:-
43
09181-25268
SHIM (25X36X1.5)
50:-
44
27600-40C20-114
CHAIN, DRIVE (RK532GSV2X114LE)
*
44
27600-46E20-116
CHAIN, DRIVE (RK532GSV2X116LE
*
44
27620-46E20
JOINT SET
*
46
08212-06222
WASHER
25:-
