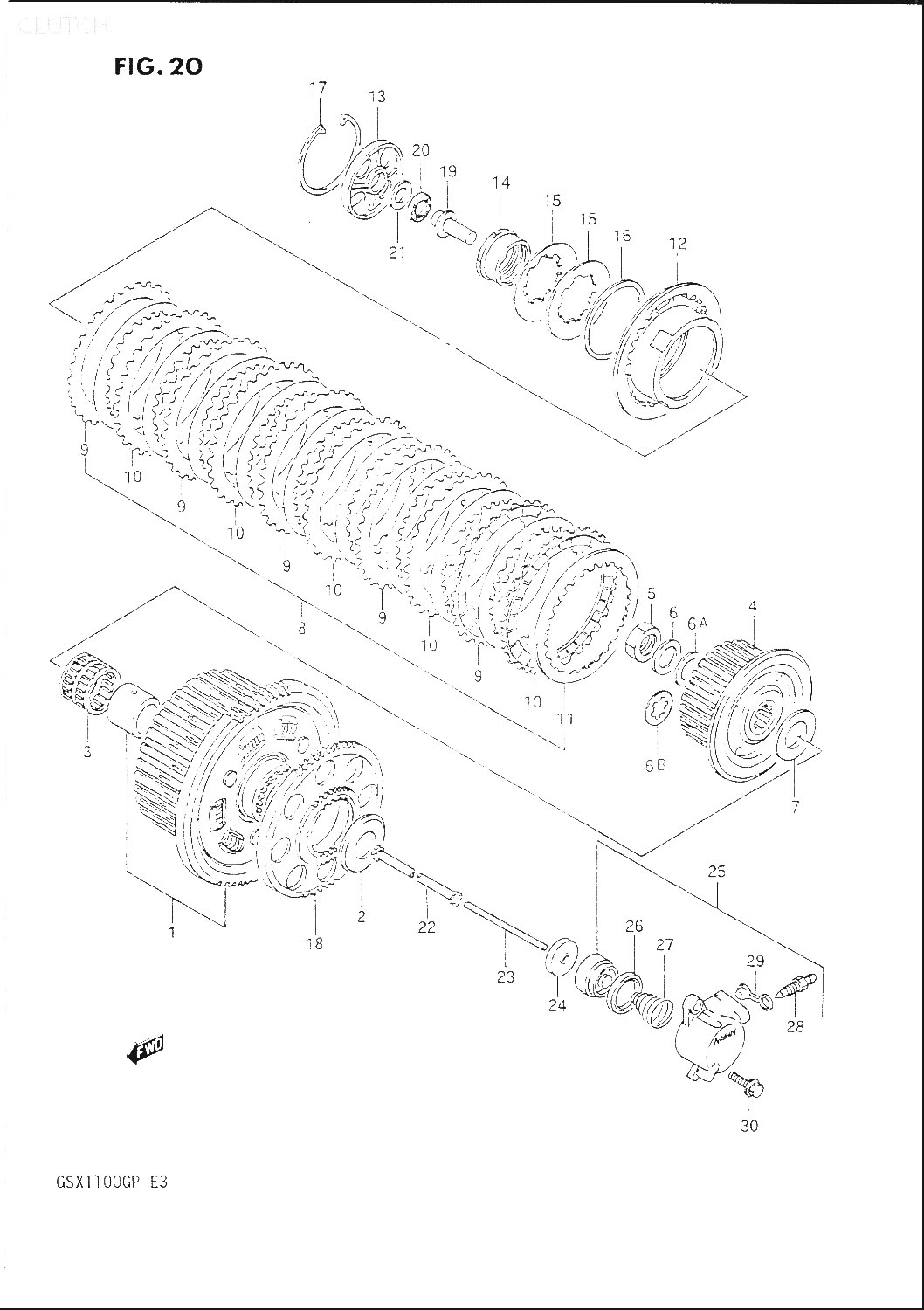

1
21200-26820
GEAR, PRIMARY DRIVEN (NT:74)
*
3
09263-35017
BEARING (35X40X35.8)
654:-
4
21410-40C01
HUB, SLEEVE
*
5
09140-24014
NUT
115:-
6
09164-24006
WASHER (24.2X35X2)
55:-
6
09181-25186
SHIM (T:0.50)
54:-
6
09167-25024
WASHER
*
7
09160-25056
WASHER (25X50X25)
157:-
8
21400-26D00
PLATE ASSY, CLUTCH
*
9
21441-06B01
PLATE, DRIVE (T:2.6), åtgår 5st
329:-
10
21441-48B00
PLATE, DRIVE NO.1 (T:2.6), åtgår 5st
305:-
11
21451-48B00
PLATE, DRIVEN (T:2), åtgår 10st
169:-
12
21462-40C02
DISC, PRESSURE
*
13
21463-40C01
LIFTER, CLUTCH PRESSURE DISK
738:-
14
21611-40C01
HOLDER, CLUTCH SPRING
2770:-
15
09164-47001
SPRING, åtgår 2st
150:-
16
21623-40C00
SEAT, CLUTCH SPRING
95:-
17
09381-84003
CIRCLIP, CLUTCH PRESSURE
173:-
19
23121-31E00
PIECE, CLUTCH PUSH
322:-
20
09263-15003
BEARING (15X28X2)
145:-
21
09160-15045
WASHER (15.5X28X1)
52:-
22
23110-38B00
ROD, PUSH RH
320:-
23
23111-26D00
ROD, CLUTCH PUSH, LH
222:-
24
09285-06015
OIL SEAL (6X34X5.5)
120:-
25
23160-26D00
CYLINDER, CLUTCH RELEASE
*
26
23163-06B00
CUP
103:-
27
23164-05A00
SPRING
58:-
28
59121-01A00
BLEEDER
85:-
29
59122-01A00
CAP, BLEEDER
38:-
30
01550-08257
.BOLT, UPPER
42:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
