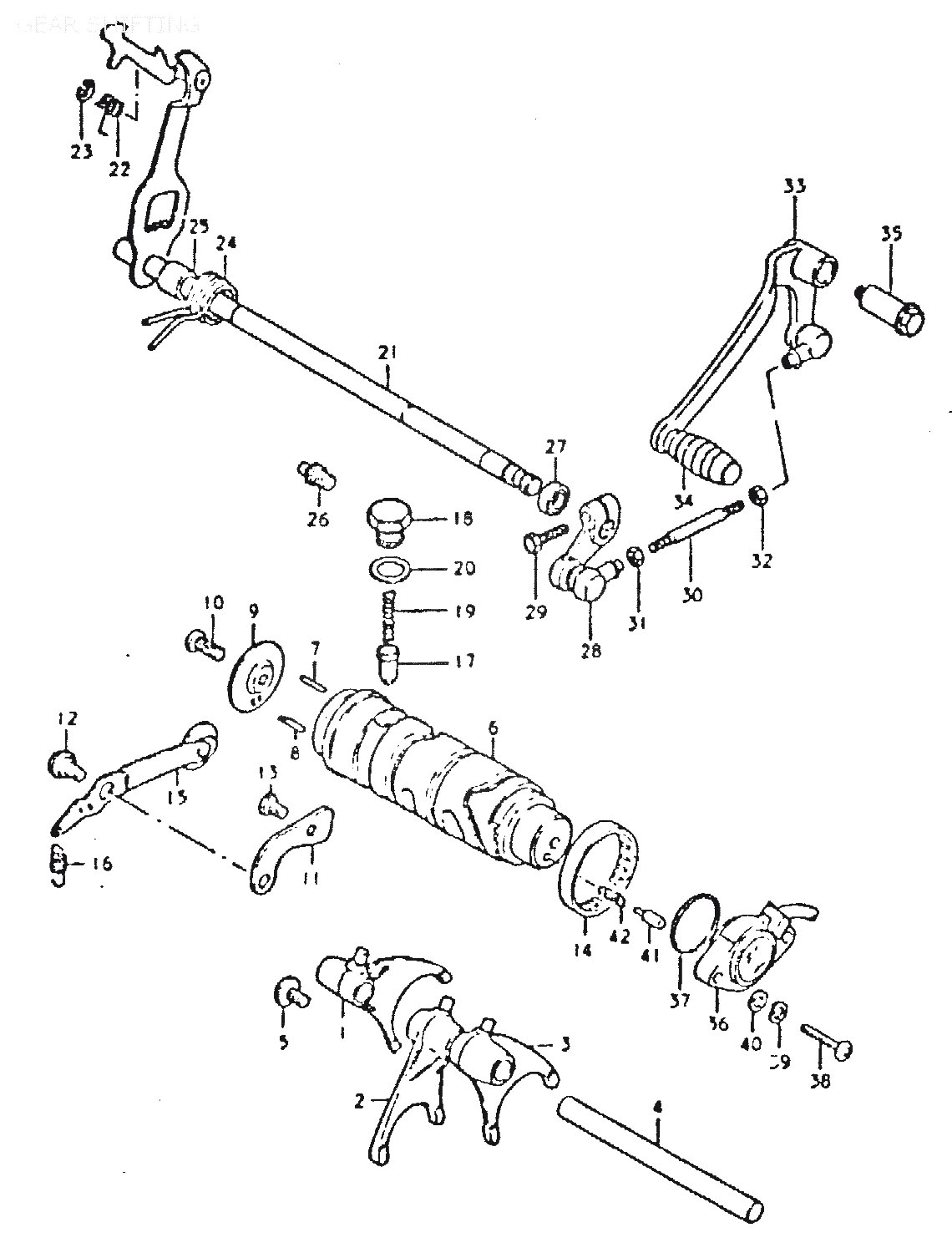

1
25211-44001
FORK, GEAR SHIFTING NO. 1
1357:-
2
25221-44001
FORK, GEAR SHIFTING NO. 2
1357:-
3
25231-44000
FORK, GEAR SHIFTING NO. 3
1357:-
7
09261-04001
PIN (4X18.5), åtgår 5st
20:-
8
09209-04013
PIN
74:-
9
25322-44000
HOLDER, DRIVE PIN
50:-
11
25341-44000
GUIDE, ARM
*
12
09111-06019
BOLT
*
14
09263-40001
BEARING (40X47X12)
513:-
15
25350-44000
STOPPER, CAM NO. 1
227:-
16
09443-09007
SPRING
229:-
17
25351-30010
STOPPER, CAM NO. 2
89:-
18
25354-30000
HOLDER, SPRING
135:-
19
09440-06014
SPRING
*
20
09168-14004
GASKET (14.1X18X1.5) (M12MARK2,M15D,M12 2 PCSO.M10-152331)
37:-
21
25510-44100
SHAFT, GEAR SHIFTING
1517:-
22
09448-13008
SPRING
228:-
25
09180-12068
SPACER (12X20X15.3)
40:-
32
09140-06011
NUT
19:-
33
25600-44100
LEVER ASSY, GEAR SHIFTING
1340:-
36
37720-45100
BODY, SWITCH
1130:-
41
09209-05011
CONTACT
27:-
42
09440-04010
SPRING (00; ID=3.4(0.13) D=0.L=12.5(0.49))
20:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
