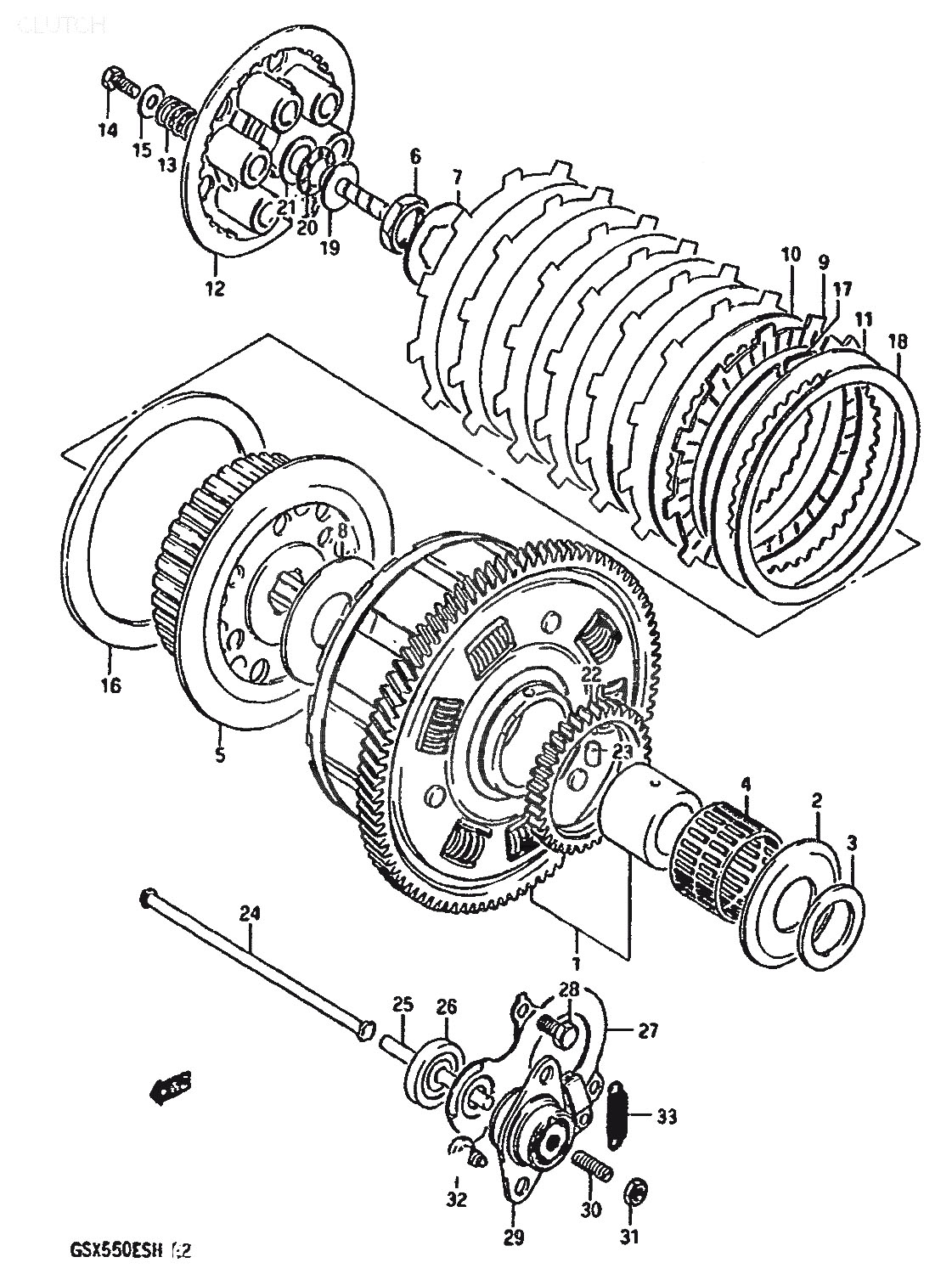

1
21200-43810
GEAR ASSY, PRIMARY DRIVEN
*
2
09160-25038
WASHER
*
3
08211-25405
WASHER
*
4
09263-40004
BEARING (40X45X31.8)
*
5
21410-43401
HUB, SLEEVE
3405:-
6
09140-24007
NUT, PIVOT LOCK
65:-
7
09167-25007
WASHER
35:-
8
09160-25038
WASHER
*
9
21441-45001
PLATE, DRIVE, åtgår 7st
295:-
11
21451-31000
PLATE, DRIVEN
130:-
12
21462-16501
DISK, PRESSURE
990:-
13
09440-19004
SPRING, åtgår 6st
40:-
16
21471-45101
SEAT, WAVE WASHER
160:-
17
21481-45100
RING, WAVE WASHER STOPPER
95:-
18
09164-00003
WASHER (117X132.5X1.2)
195:-
19
23121-44100
PIECE, CLUTCH PUSH
345:-
20
09263-15003
BEARING (15X28X2)
160:-
22
16321-43400
GEAR, OIL PUMP DRIVE (NT:36)
*
23
09261-06005
PIN
*
24
23110-31300
ROD, PUSH (R)
*
25
23111-15501
ROD, CLUTCH PUSH, LH
220:-
26
09285-06018
OIL SEAL
160:-
27
23117-43400
HOLDER, OIL SEAL
*
29
23200-31300
SCREW ASSY, CLUTCH RELEASE
860:-
30
09134-06010
SCREW
50:-
32
03111-06168
SCREW, åtgår 2st
55:-
33
09443-08001
SPRING
30:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
