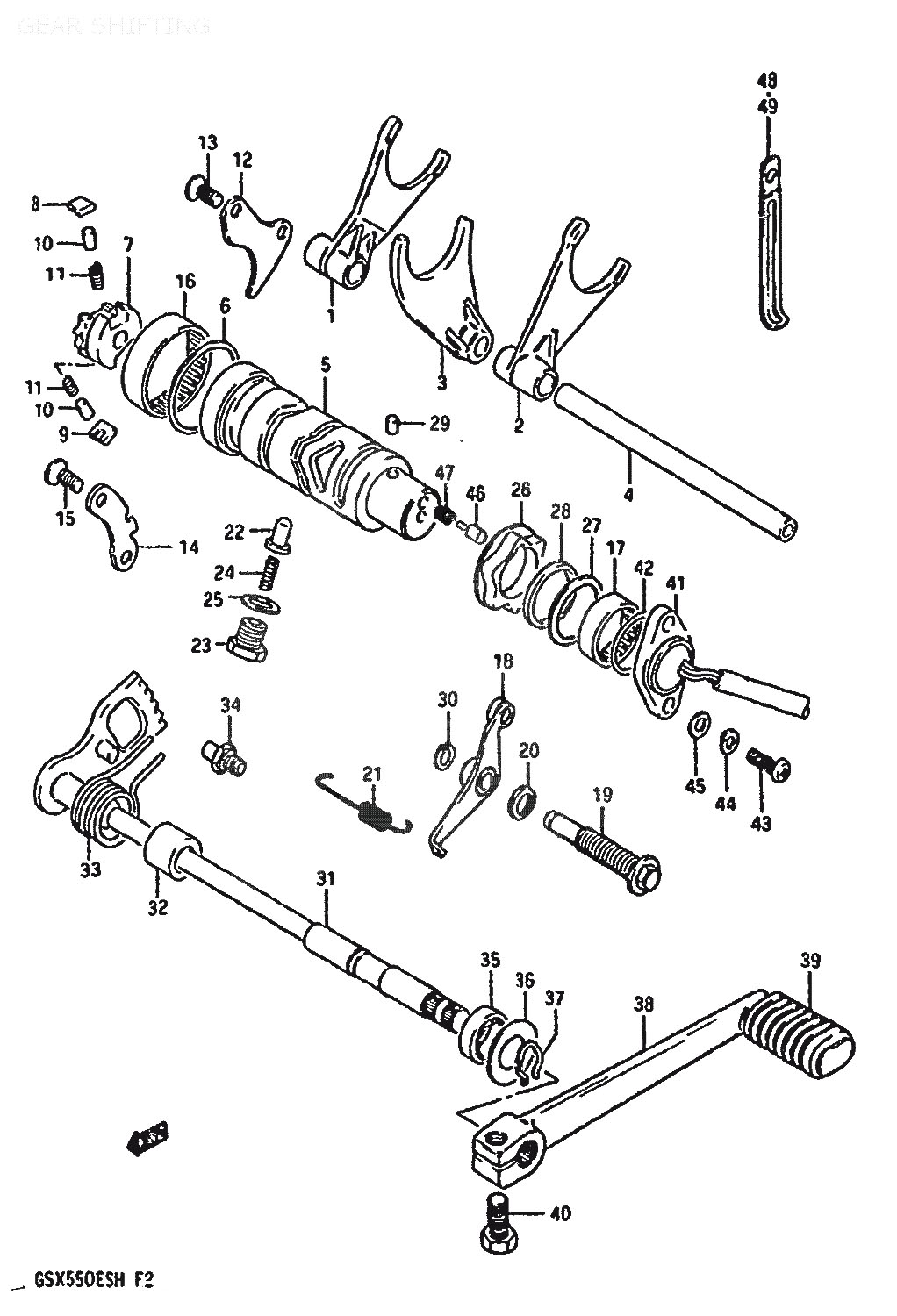

1
25211-43400
FORK, GEAR SHIFTING NO.1
*
3
25231-43400
FORK, GEAR SHIFTING NO.3
*
4
25411-15501
SHAFT, GEAR SHIFTING FORK
*
5
25310-43400
CAM, GEAR SHIFTING
*
6
09160-40006
WASHER
*
10
09261-05003
PIN, SHIFT POLE (5X8), åtgår 2st
20:-
11
09440-04003
SPRING, SHIFT PAWL RETURN, åtgår 2st
20:-
12
25331-15501
LIFTER,GEAR SHI
*
14
25341-43400
GUIDE, CAM
*
16
09263-43001
BEARING, GEAR RH (43X49X12)
652:-
17
09263-25018
BEARING (25X32X12)
355:-
18
25350-43400
STOPPER, CAM
*
19
25353-43400
SHAFT
*
20
09168-10002
GASKET, OIL GALLERY PLUG
27:-
21
09443-08032
SPRING
*
23
25354-30000
HOLDER, SPRING
135:-
24
09440-06027
SPRING
*
25
09168-14004
GASKET (14.1X18X1.5) (M12MARK2,M15D,M12 2 PCSO.M10-152331)
37:-
26
25381-04700
PLATE, GEAR SHIFT CAM STOPPER
253:-
27
08211-25321
WASHER
40:-
28
08212-25305
WASHER
*
31
25510-43400
SHAFT, GEAR SHIFTING
*
32
09180-12068
SPACER (12X20X15.3)
40:-
33
09444-26013
SPRING
40:-
39
25652-49300
RUBBER
103:-
41
37720-43400
BODY, GEAT SHIFTING SWITCH
*
43
09125-05102
SCREW, åtgår 2st
30:-
46
09209-05011
CONTACT
27:-
47
09440-04010
SPRING (00; ID=3.4(0.13) D=0.L=12.5(0.49))
20:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
