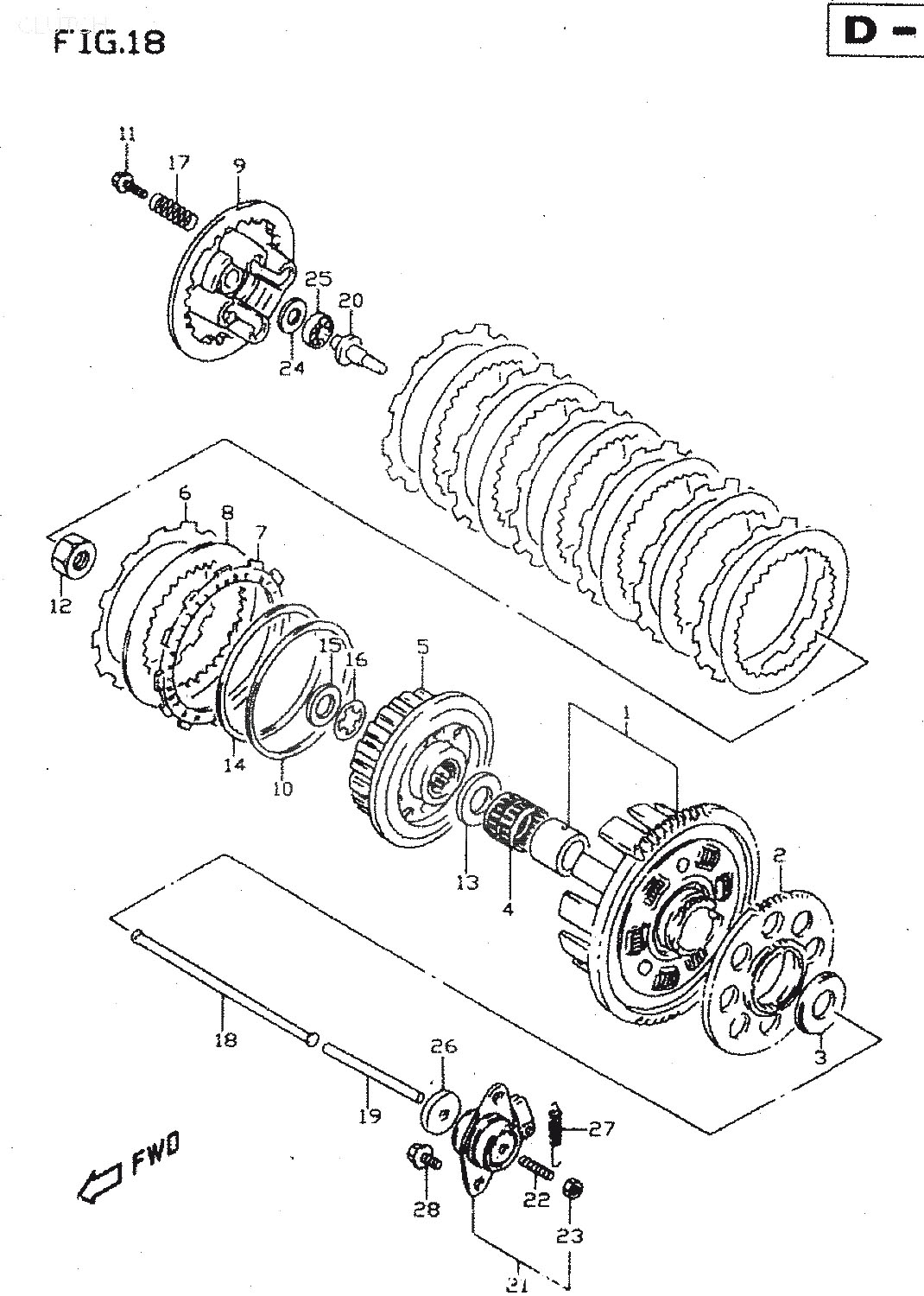

2
22721-17D02
GEAR, GENERATOR (NT:34/64)
3065:-
3
09160-25037
WASHER (25X54X2.5)
144:-
4
09263-35017
BEARING (35X40X35.8)
654:-
5
21410-27A02
HUB, CLUTCH SLEEVE
2162:-
6
21441-37420
PLATE, CLUTCH DRIVE, NO.1, åtgår 7st
357:-
7
21442-37401
PLATE, CLUTCH DRIVE NO.2
197:-
8
21451-05A00
PLATE, DRIVEN, åtgår 7st
150:-
9
21462-27A00
DISC, PRESSURE
802:-
10
21471-37400
SEAT, WAVE WASHER
137:-
11
09116-06167
BOLT, åtgår 4st
33:-
11
09116-06150
BOLT, åtgår 4st
37:-
12
09140-22008
NUT
78:-
13
09160-25056
WASHER (25X50X25)
157:-
14
09164-00004
WASHER (110.5X119X0.9)
179:-
15
09164-22007
WASHER
78:-
16
09181-22251
WASHER (22X36X1.0)
58:-
17
09440-20020
SPRING, CLUTCH, åtgår 4st
133:-
18
23110-20C00
ROD, CLUTCH PUSH, RH
409:-
19
23111-08A00
ROD, CLUTCH PUSH,LH
272:-
20
23121-27A00
PIECE, CLUTCH PUSH
364:-
21
23200-31300
SCREW ASSY, CLUTCH RELEASE
1104:-
22
09134-06010
SCREW
40:-
23
08310-00067
NUT
32:-
24
09160-15045
WASHER (15.5X28X1)
52:-
25
09263-15003
BEARING (15X28X2)
145:-
26
09285-06015
OIL SEAL (6X34X5.5)
120:-
27
09443-07038
SPRING, CLUTCH RETURN
55:-
