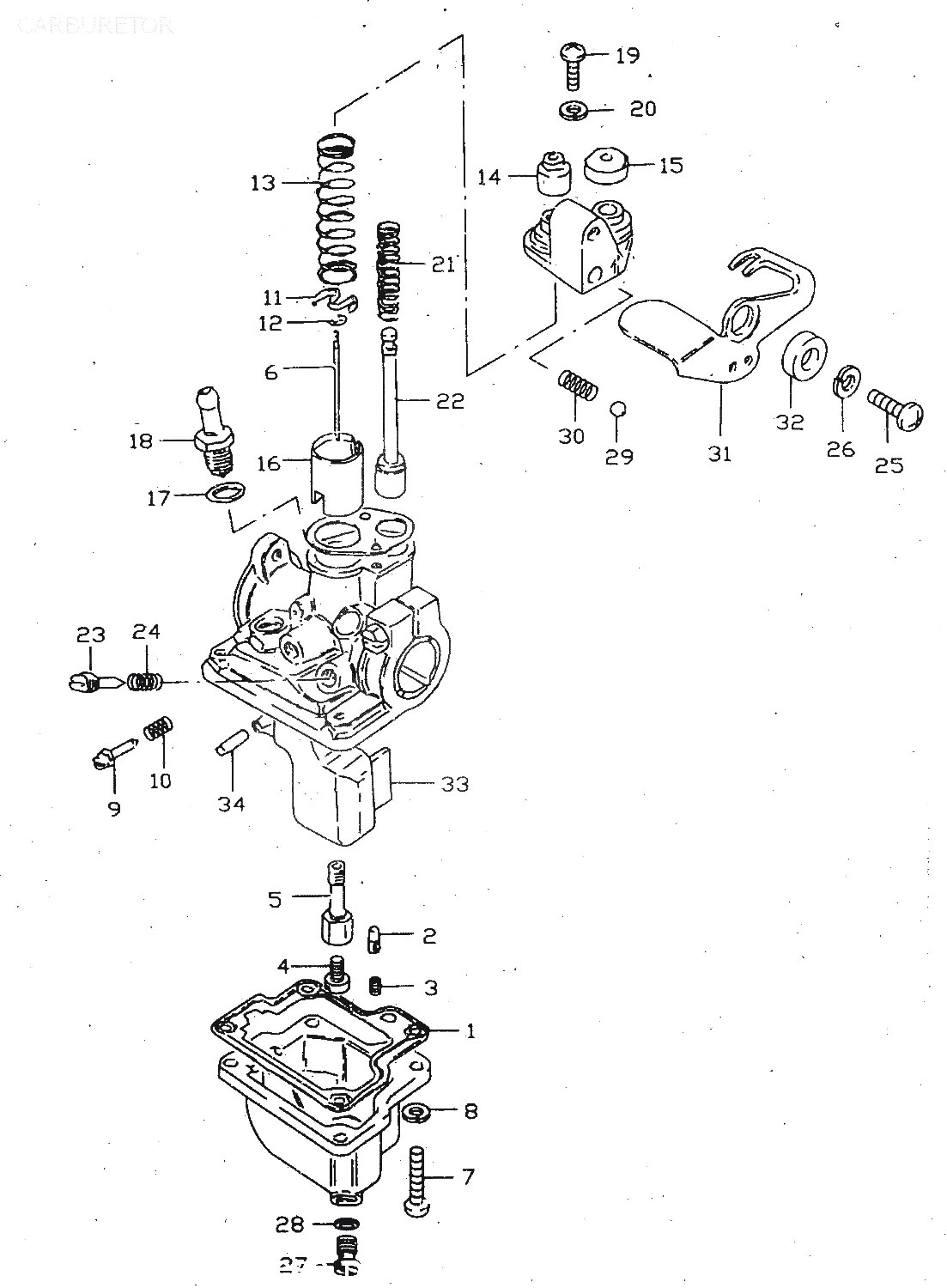

1
13251-04110
GASKET, FLOAT CHAMBER
73:-
2
09492-15002
JET, PILOT (15)
*
2
09492-15015
JET, PILOT NO.1 (15)
288:-
3
09492-15009
JET, PILOT NO.2
167:-
4
09491-52002
JET, MAIN (52.5)
140:-
5
09494-00210
JET, NEEDLE (E-4)
*
6
13383-19010
NEEDLE, JET (3E3-3)
199:-
9
13267-01010
SCREW, THROTTLE STOP
90:-
10
13268-01010
SPRING (M12MARK2,M15D,M12M12MARK2,M15D,M12)
48:-
11
13581-04010
SEAT, THROTTLE VALVE SP
54:-
12
13394-40D00
CLIP, NEEDLE
43:-
13
13573-01010
SPRING, THROTTLE VALVE
63:-
15
13682-98010
CAP, STARTER
43:-
16
13551-04110
VALVE, THROTTLE (CA:3.0)
333:-
17
13663-31010
GASKET, VALVE SEAT
35:-
18
13370-04110
VALVE, NEEDLE
319:-
19
02112-04103
SCREW, åtgår 2st
20:-
21
13417-18630
SPRING
67:-
22
13411-04410
VALVE, STARTER
177:-
23
13269-04010
SCREW, PILOT AIR
148:-
24
13268-01010
SPRING (M12MARK2,M15D,M12M12MARK2,M15D,M12)
48:-
27
13247-05010
PLUG, DRAIN
67:-
28
13249-05010
GASKET, DRAIN PLUG
23:-
29
13435-33110
BALL
24:-
30
13434-30650
SPRING
42:-
31
13413-04410
LEVER, STARTER
*
32
13424-30650
RING
73:-
33
13252-04011
FLOAT
319:-
34
13254-04010
PIN, FLOAT
47:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
