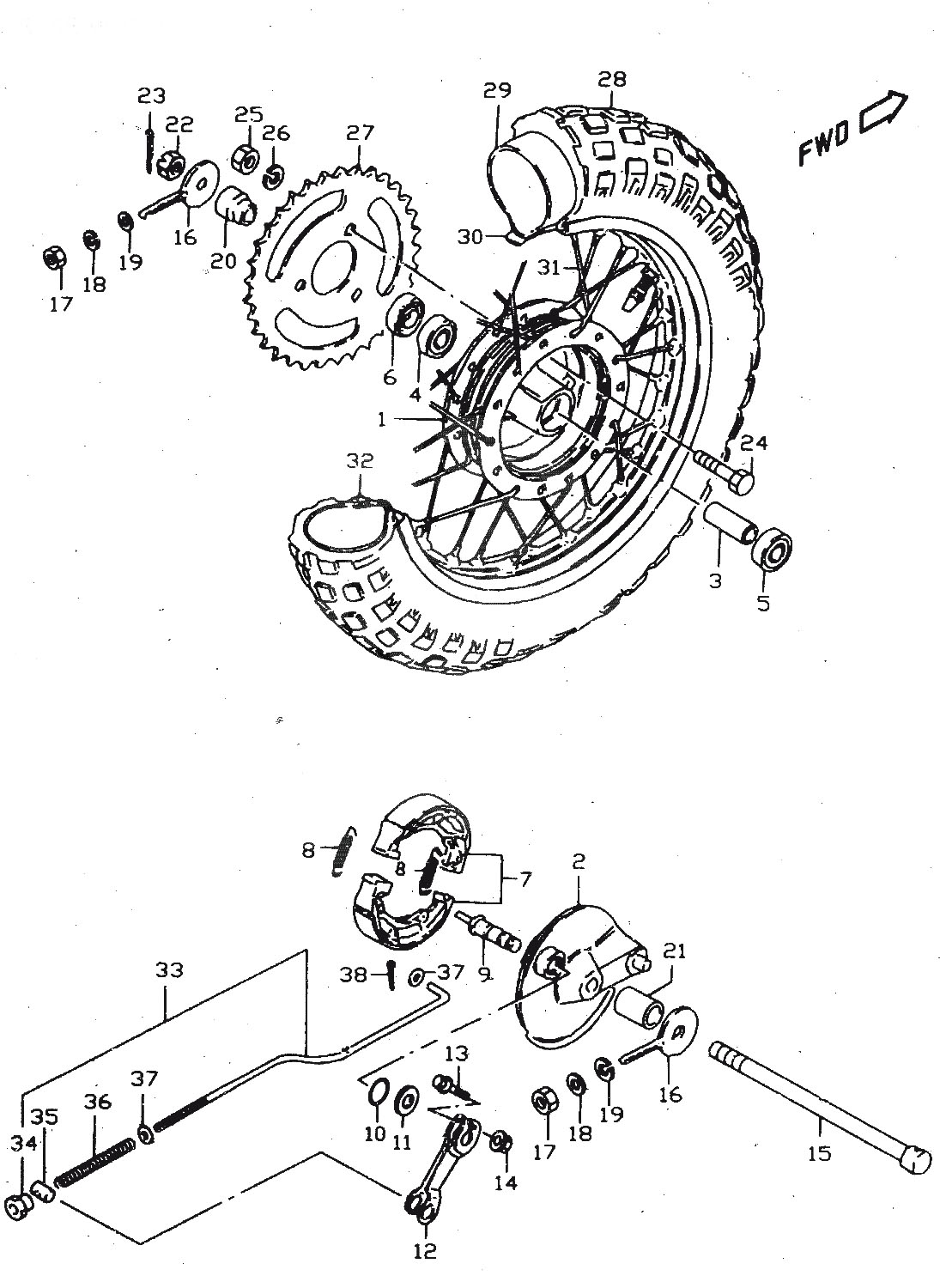

1
64110-04400
HUB, REAR WHEEL
2210:-
2
64210-04400
PANEL, REAR BRAKE ANCHOR
627:-
3
09180-10149
SPACER (10.2X16X55)
80:-
4
09262-10015
BEARING (10X26X8)
239:-
5
08143-60007
BEARING, RH
280:-
6
09284-15004
OIL SEAL (15X27X6)
74:-
7
64400-04811
SHOE SET, BRAKE
419:-
8
09443-07025
SPRING, åtgår 2st
29:-
9
54441-04001
CAM, BRAKE
194:-
10
09280-10013
O RING, PROTECTION COVER
110:-
11
09160-10121
WASHER, SEAT CUSHION
28:-
12
64451-04000
LEVER, BRAKE CAM
424:-
15
54711-04410
AXLE, REAR
384:-
16
61411-04000
ADJUSTER, CHAIN, åtgår 2st
79:-
20
64751-04410
SPACER, LH (L:22)
67:-
21
64741-04410
SPACER, RH (10X20X21)
52:-
22
09141-10006
NUT
49:-
24
09105-08011
BOLT (8X36), åtgår 3st
29:-
26
09162-08008
WASHER, åtgår 3st
30:-
27
64511-04411
SPROCKET, REAR (NT:28)
344:-
28
55100-04410
TIRE, REAR (2.50-10)
1588:-
29
55200-04410
TUBE ASSY, WHEEL INNER
704:-
30
55261-04410
PROTECTOR, INNER TUBE
138:-
31
55300-04820
SPOKE SET, REAR WHEEL
867:-
32
55311-04410
RIM, WHEEL (1.40X10)
8443:-
33
43300-04410
ROD ASSY, REAR BRAKE
94:-
34
09150-05003
NUT
58:-
35
09209-10001
PIN
27:-
36
09440-09004
SPRING (M12MARK2,M15D,M12 OD=8(05(5.71))
27:-
