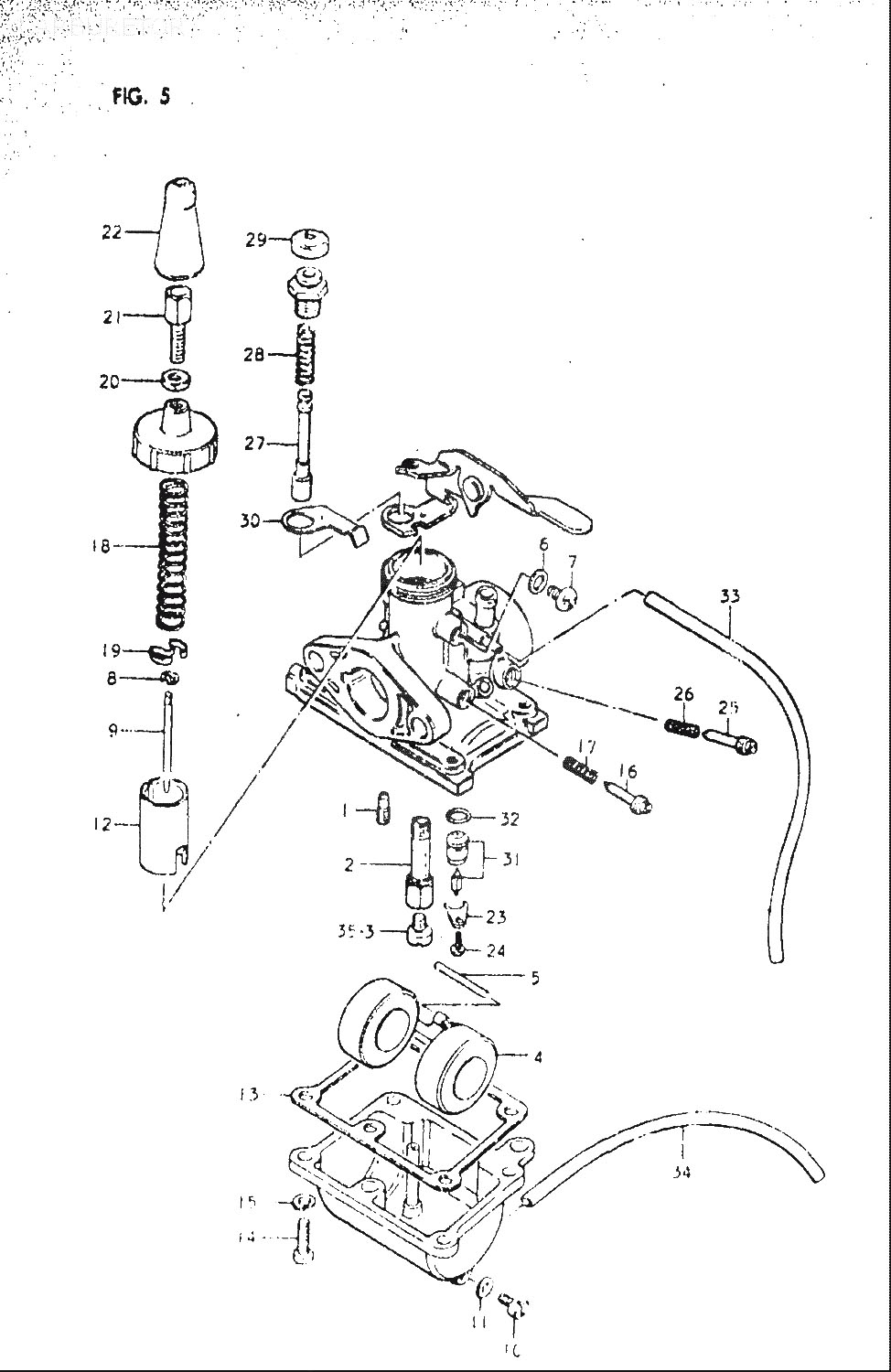

1
09492-15015
JET, PILOT NO.1 (15)
288:-
2
09494-00173
JET (E-1)
*
3
09491-75009
JET MAIN 75 (, OPT, OPT)
133:-
3
09491-67003
JET (#67.5) (.5, OPT.5, OPT)
155:-
4
13252-46110
FLOAT
390:-
5
13254-20010
.PIN, FLOAT
32:-
6
13523-46110
WASHER
30:-
7
09125-05122
SCREW
47:-
8
13394-40D00
CLIP, NEEDLE
43:-
10
13247-05010
PLUG, DRAIN
67:-
11
13249-05010
GASKET, DRAIN PLUG
23:-
13
13251-46110
GASKET, FLOAT CHAMBER
155:-
16
13267-01010
SCREW, THROTTLE STOP
90:-
17
13268-01010
SPRING (M12MARK2,M15D,M12M12MARK2,M15D,M12)
48:-
18
13573-46710
SPRING, THROTTLE VALVE
75:-
19
13581-07910
PLATE
95:-
20
13661-16600
.NUT, CABLE ADJUSTER LOCK
52:-
21
13577-48110
.ADJUSTER
133:-
22
13681-16601
BOOT
147:-
23
13373-46710
PLATE
77:-
25
13269-04010
SCREW, PILOT AIR
148:-
26
13268-01010
SPRING (M12MARK2,M15D,M12M12MARK2,M15D,M12)
48:-
28
13417-09110
SPRING
103:-
28
13417-01010
SPRING
60:-
31
13370-46710
VALVE ASSY, NEEDLE
1025:-
32
13374-46710
O RING
39:-
33
09352-30503-600
HOSE
104:-
34
13684-40A00
HOSE
130:-
35
09491-70010
JET MAIN (, OPT, OPT)
175:-
35
09491-72012
M/J 72.5 (N1022
205:-
35
09491-77005
JET, MAIN (75)
193:-
35
09491-80008
INJECTOR
*
35
09491-82003
JET, MAIN (82.5)
175:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
