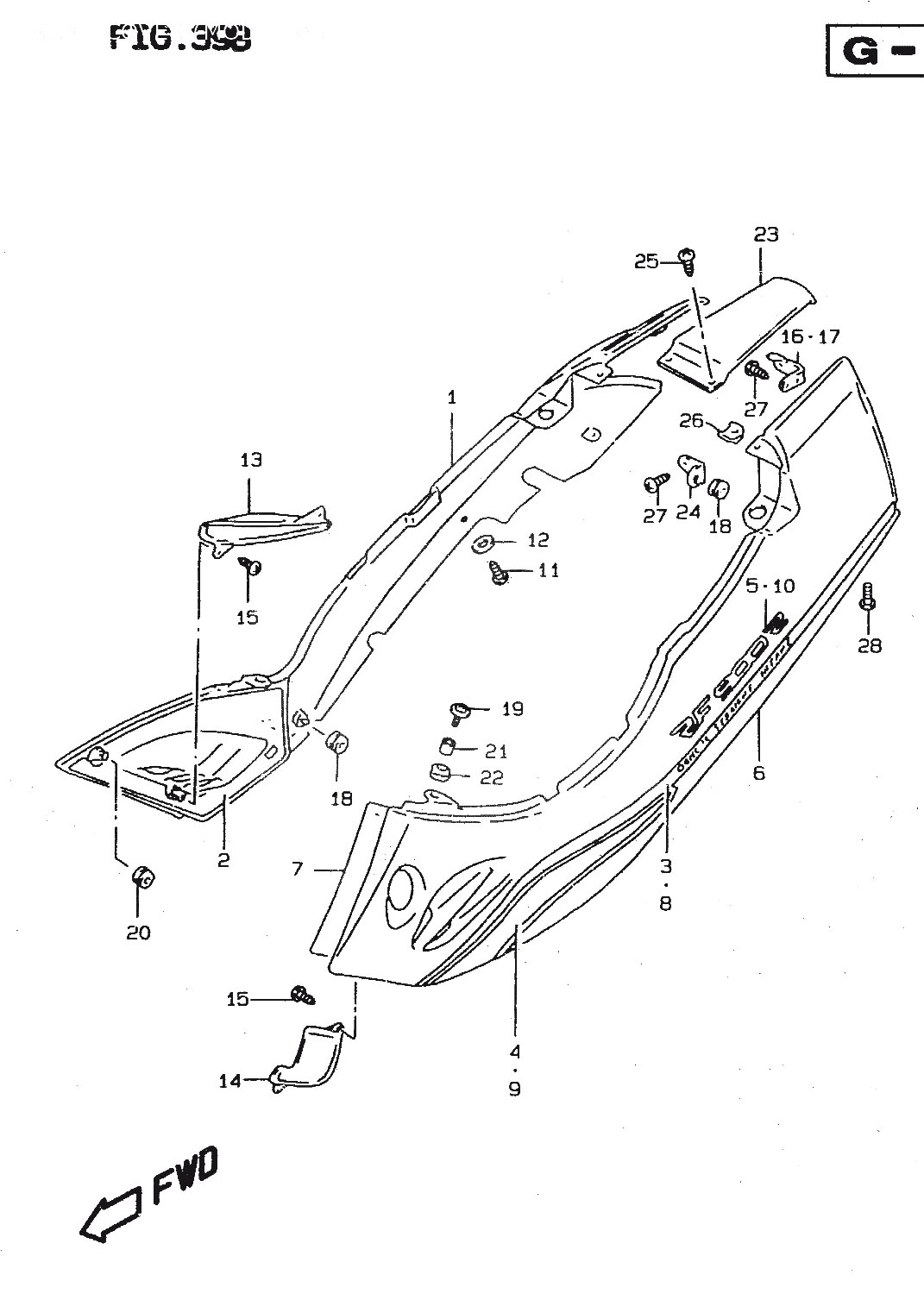

1
47100-31E50-22U
COVER, FRAME RH (MAROON)
*
1
47100-31E50-33J
COVER, FRAME RH (BLACK)
6840:-
2
47117-31E00
SHIELD, HEAT RH
770:-
3
68130-31E00-F3H
TAPE SET, STRIPING RH
1210:-
4
68135-31E00-G6M
TAPE, RH
*
4
68135-31E00-G7U
TAPE, RH
*
5
68131-31E00-J8N
EMBLEM
*
5
68131-31E00-C9Y
EMBLEM
*
6
47200-31E50-22U
COVER, FRAME LH (MAROON)
6240:-
6
47200-31E50-33J
COVER, FRAME LH (BLACK)
6840:-
7
47217-31E00
SHIELD, HEAT LH
840:-
8
68140-31E00-F3H
TAPE SET, STRIPING LH
*
9
68145-31E00-G6M
TAPE, LH
*
9
68145-31E00-G7U
TAPE, LH
*
10
68131-31E00-J8N
EMBLEM
*
10
68131-31E00-C9Y
EMBLEM
*
12
09161-05017
WASHER, åtgår 2st
45:-
13
47511-31E00
COVER, INNER RH
*
14
47611-31E00
COVER, INNER LH
305:-
16
47191-21E00
BRACKET, FRAME COVER RH
120:-
17
47192-21E00
BRACKET, FRAME COVER LH
*
19
09116-06131
BOLT, åtgår 2st
35:-
21
09180-06265
SPACER, åtgår 2st
55:-
22
09320-08061
CUSHION, åtgår 2st
65:-
23
47311-31E00-22U
COVER, FRAME CENTER (GRAY)
*
23
47311-31E00-33J
COVER, FRAME CENTER (BLACK)
1385:-
24
47193-21E00
BRACKET, REAR
*
26
09148-05021
NUT, FITTING, åtgår 2st
35:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
