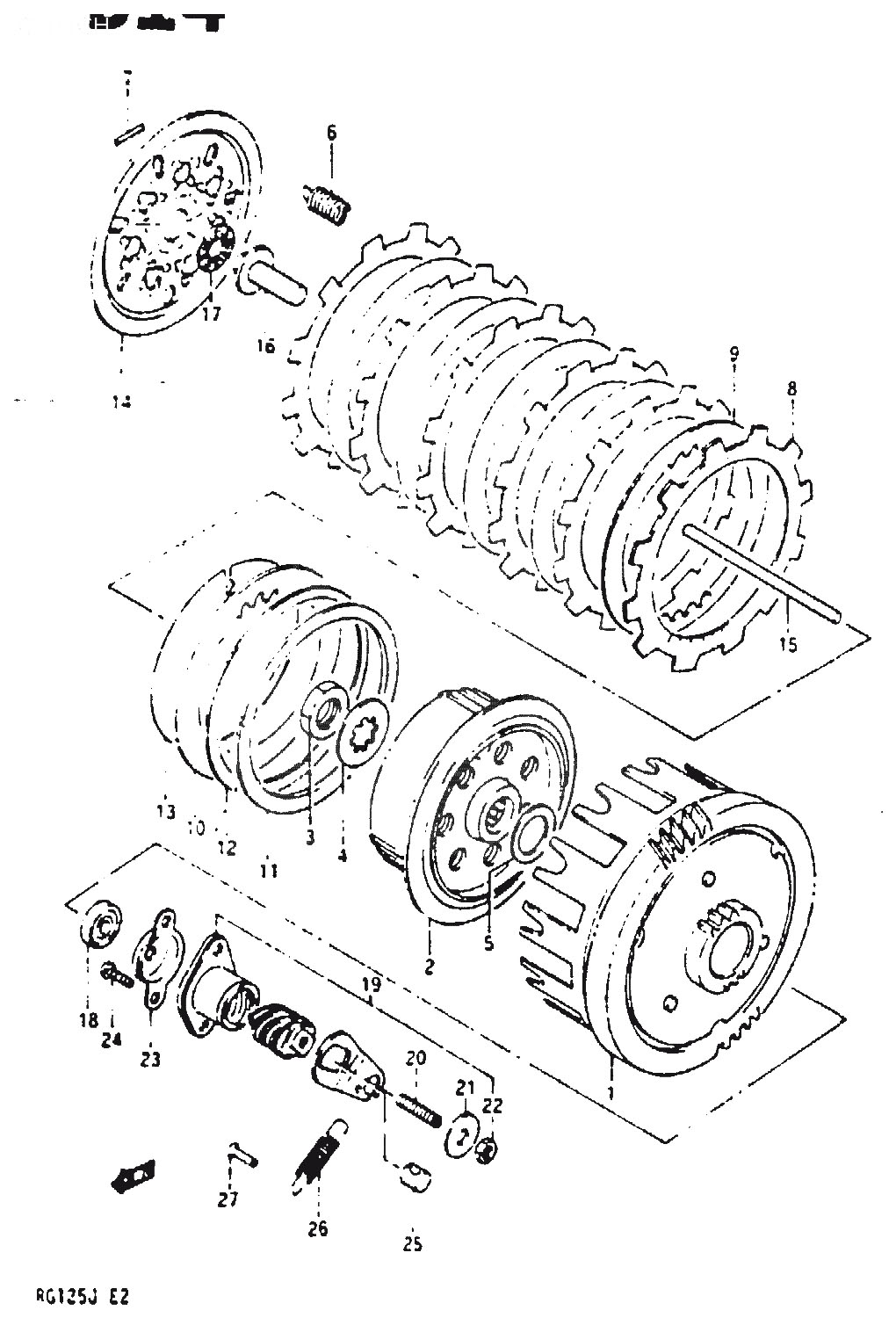

1
21200-36A02
GEAR, PRIMARY DRIVEN
2868:-
4
09167-17002
CLUTCH SLEEVE HUB WASHER
30:-
5
08211-17283
WASHER
*
6
09443-12018
SPRING, åtgår 7st
45:-
7
09261-02001
PIN, åtgår 7st
25:-
10
21451-36200
PLATE, DRIVEN (T:2)
100:-
11
21471-36200
SEAT, WAVE WASHER
205:-
12
09164-98001
WAVE WASHER
230:-
13
21481-39301
STOPPER RING
75:-
14
21461-39300
PLATE, PRESSURE
440:-
16
23121-39101
PIECE, CLUTCH PUSH
185:-
17
09263-10002
THRUST BEARING (10.1X22X2.8)
195:-
19
23200-36A00
SCREW ASSY, RELEASE
*
20
09134-06010
SCREW
50:-
23
23241-36A00
COVER, RELEASE SCREW
*
25
23222-36A00
PIECE, RELEASE ARM END
90:-
26
09443-08001
SPRING
30:-
27
23223-36A00
PROTECTOR
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
