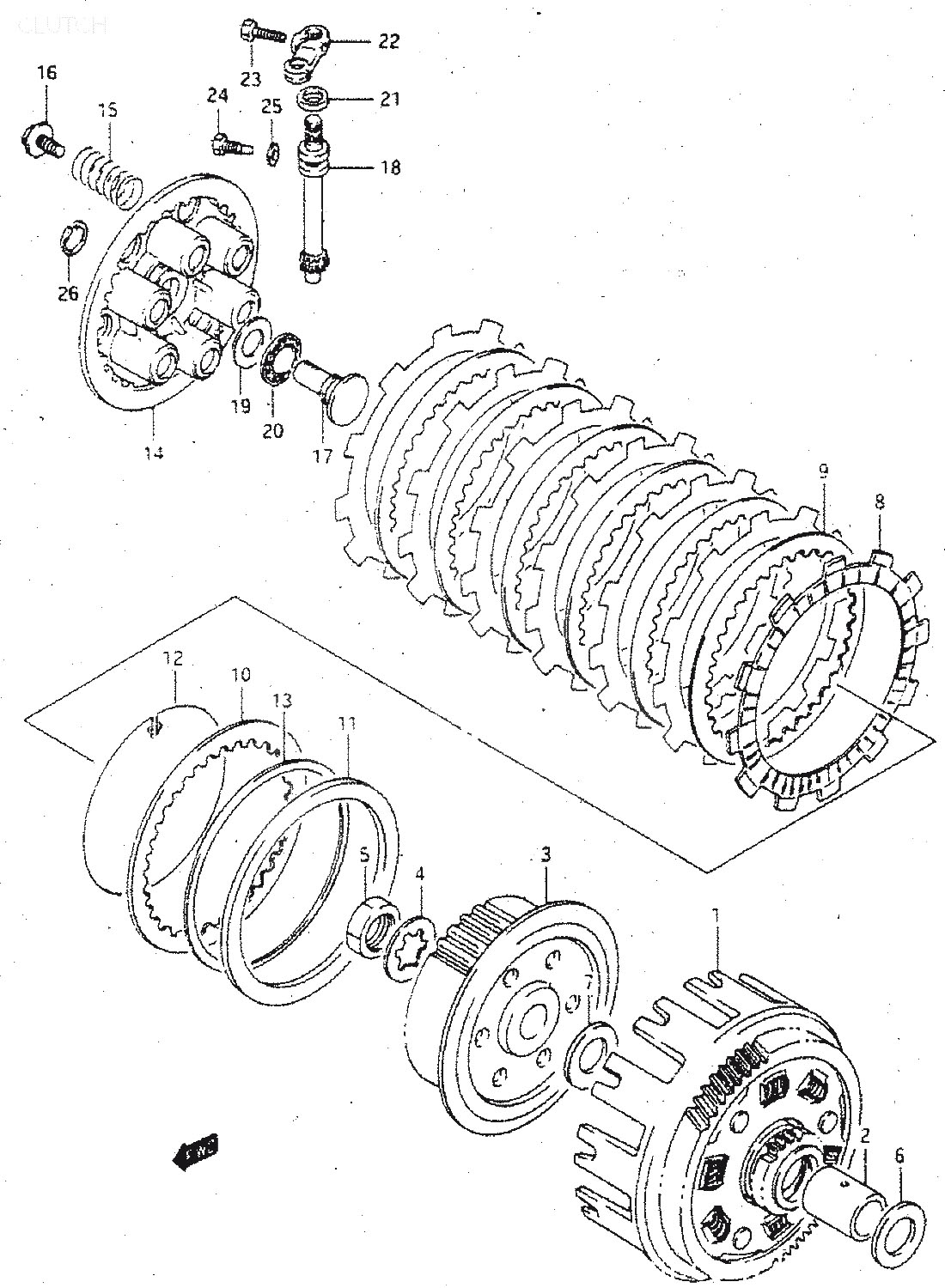

1
21200-12C17
GEAR ASSY, PRIMARY DRIVEN
*
2
21251-12C01
SPACER, PRIMARY DRIVEN
580:-
3
21410-40A00
HUB, CLUTCH SLEEVE
1210:-
4
09167-20009
WASHER
35:-
5
09140-20001
NUT
55:-
6
09160-20067
WASHER (20X36X3)
125:-
7
09160-20063
WASHER
95:-
10
21451-31000
PLATE, DRIVEN
130:-
11
21471-45101
SEAT, WAVE WASHER
160:-
12
21481-45100
RING, WAVE WASHER STOPPER
95:-
13
09164-00003
WASHER (117X132.5X1.2)
195:-
14
21462-12C00
DISK,CLUTCH PRE
815:-
15
09440-19023
SPRING, åtgår 6st
50:-
16
09116-06168
BOLT, åtgår 6st
40:-
17
23165-21A11
RACK, CLUTCH RELEASE
*
18
23261-20A01
PINION
465:-
19
09160-15045
WASHER (15.5X28X1)
65:-
20
09263-15003
BEARING (15X28X2)
160:-
21
09285-10004
OIL SEAL (10X17X5)
55:-
22
23271-12C00
ARM, CLUTCH RELEASE
810:-
24
09135-06009
BOLT
35:-
26
09380-15001
SNAP RING
30:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
