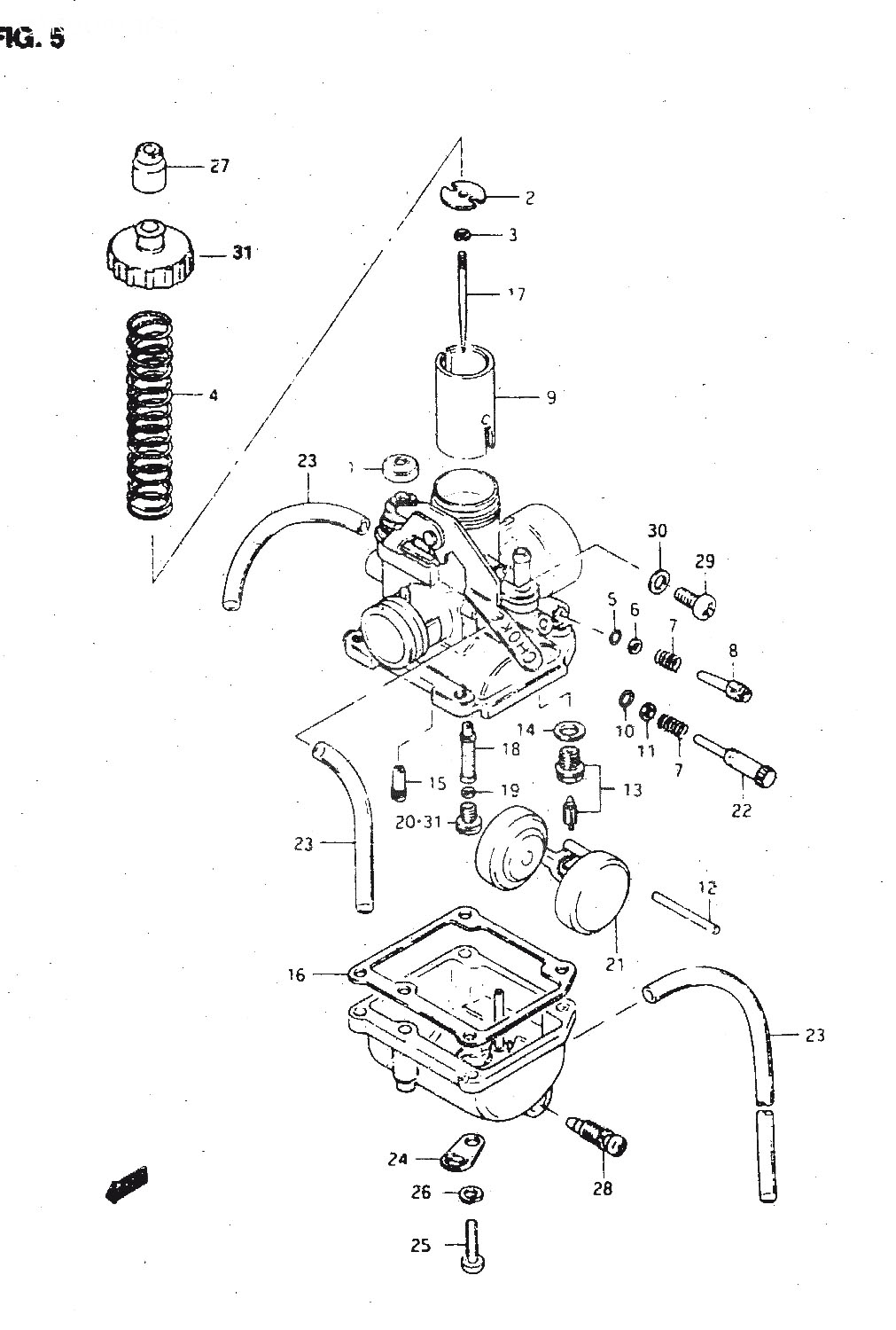

1
13682-09210
CAP (O.D.=13(0.51), I.D.=4.2(0.16), H.=6(0.23))
55:-
1
13682-98010
CAP, STARTER
43:-
2
13581-36212
SEAT, THROTTLE VALVE SPRING
98:-
3
13394-40D00
CLIP, NEEDLE
43:-
4
13573-04700
SPRING
125:-
6
13291-29900
WASHER
17:-
7
13268-35010
.SPRING (K,L,M,A,BR), åtgår 2st
39:-
8
13269-29900
SCREW, PILOT AIR
199:-
9
13551-04700
THROTTLE VALVE
625:-
9
13551-136B0
THROTTLE VALVE
660:-
10
13295-33010
O RING (K,LM,A,B)
39:-
11
13291-35010
WASHER
32:-
12
13254-01010
PIN
32:-
13
13370-43011
VALVE,NEEDLE
1003:-
14
13392-01010
NEEDLE VALVE SEAT GASKET
22:-
15
09492-20008
JET, PILOT (20)
193:-
15
09492-12007
JET, PILOT (12.5)
205:-
16
13251-23010
GASKET
*
17
13383-136A0
NEEDLE, JET (3CV1-3)
212:-
18
09494-00419
JET, NEEDLE (E-7)
335:-
18
09494-00460
JET, NEEDLE (F-1)
285:-
19
13386-04700
GASKET
35:-
20
09491-77005
JET, MAIN (75)
193:-
20
09491-70010
JET MAIN (, OPT, OPT)
175:-
21
13250-04700
FLOAT
268:-
22
13267-29A00
ADJUSTER, THROTTLE
170:-
23
09352-30503-600
HOSE, åtgår 3st
104:-
24
13693-30010
PLATE, åtgår 2st
50:-
28
13247-13A00
SCREW, DRAIN
67:-
29
02112-05063
SCREW
*
30
13523-46110
WASHER
30:-
31
13261-04700
MIXING CAP ASSY
503:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
