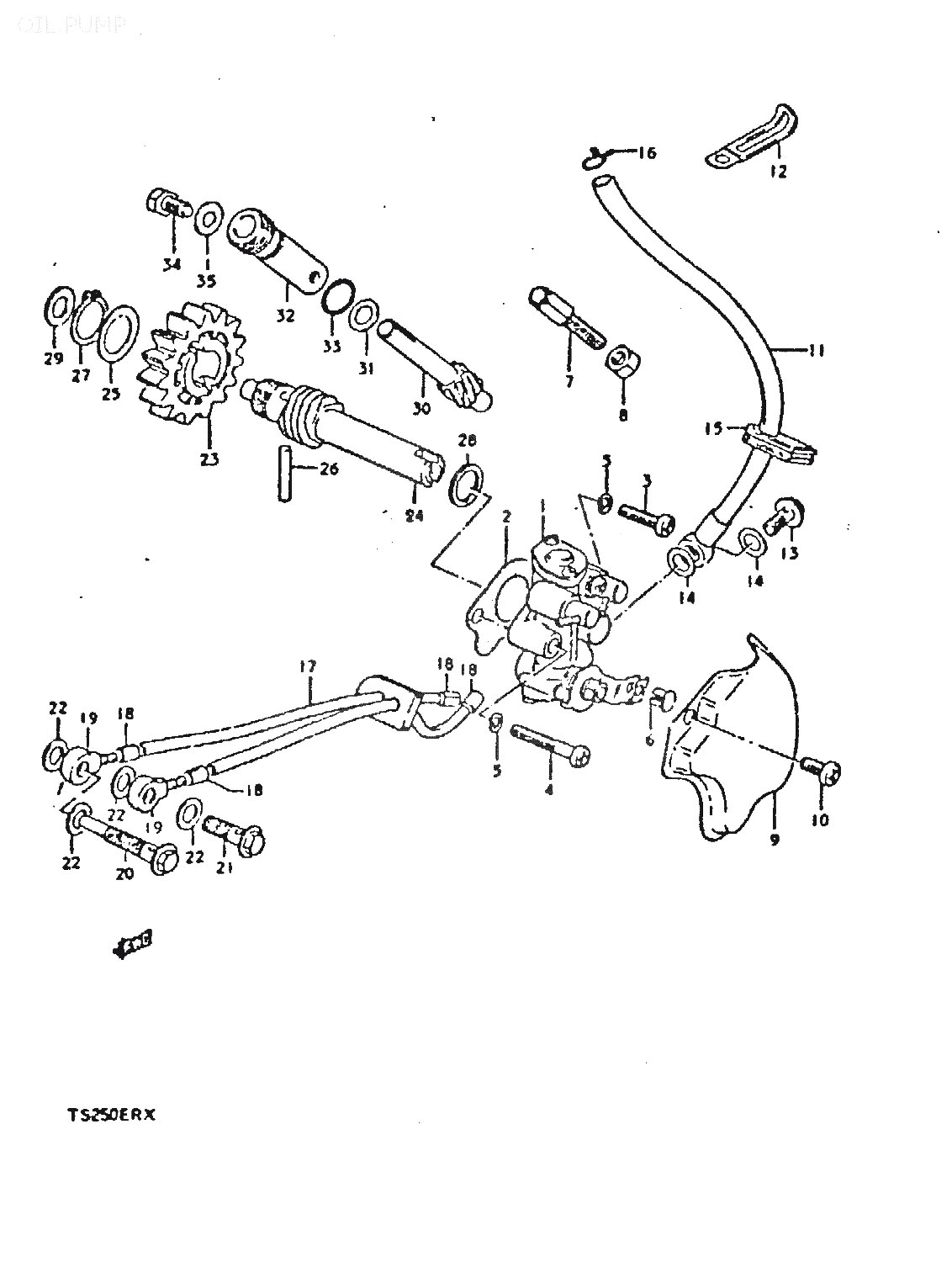

1
16100-30910
PUMP ASSY, OIL
*
2
16731-03101
GASKET
28:-
7
09119-08014
ADJUSTER, CABLE
49:-
9
11385-30000
CAP, OIL INSPECTION
*
12
09404-10403
CLAMP (L:80)
*
13
09360-06003
UNION BOLT
72:-
14
09168-06004
GASKET (6.2X11X1.2) (P; O.D.=120.47.ID =6.2(0.24).06)), åtgår 2st
20:-
15
09309-08002
GROMMET
32:-
16
09401-08401
CLIP
24:-
17
16820-30500
HOSE, OIL OUTLET
*
18
09401-04401
CLIP, åtgår 4st
37:-
20
09360-06009
UNION BOLT
127:-
21
09360-06003
UNION BOLT
72:-
22
09168-06004
GASKET (6.2X11X1.2) (P; O.D.=120.47.ID =6.2(0.24).06)), åtgår 4st
20:-
23
16321-30030
GEAR, DRIVE (NT:15)
*
24
16322-30001
SHAFT, OIL PUMP DRIVE (NT:6)
*
25
08211-14241
WASHER, INNER
*
26
09261-04005
PIN 4X24
20:-
28
08211-12202
WASHER
28:-
29
08221-08166
THRUST WASHER
*
30
26431-30000
GEAR, TACHOMETER DRIVEN (NT:9)
*
30
26431-30001
GEAR, TACHO. DRIVEN (NT:9)
*
31
09160-08003
WASHER
29:-
32
26441-30000
SLEEVE, TACHOMETER GEAR
*
32
26441-48000
SLEEVE, TACHOMETER GEAR
*
33
09280-10001
O RING (D:1.3,ID:9.6)
29:-
34
09135-06002
BOLT
25:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
