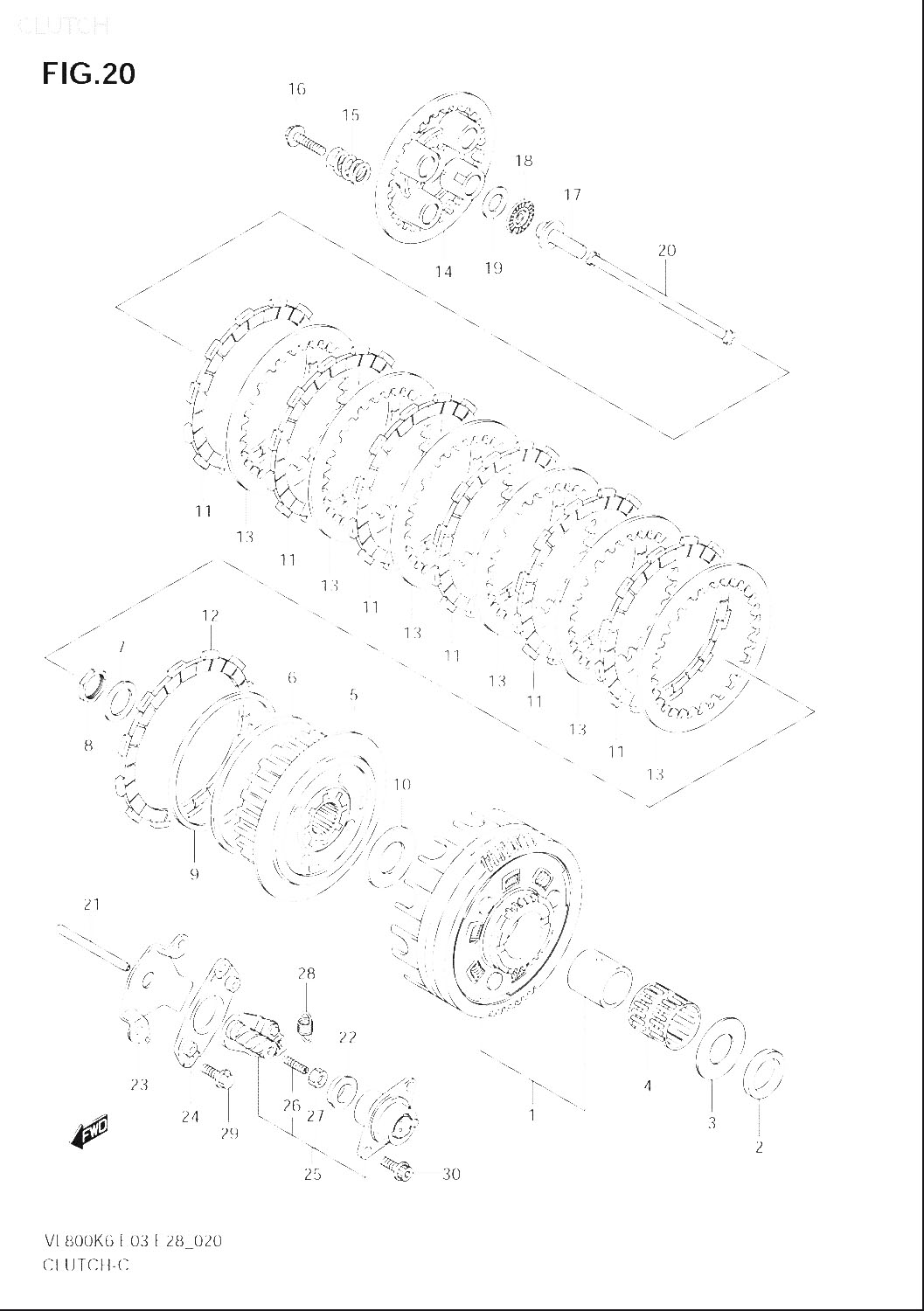

1
21200-38840
GEAR, PRIMARY DRIVEN (NT:71)
4873:-
2
09180-25077
SPACER (25X38X6.5)
145:-
4
09263-35017
BEARING (35X40X35.8)
654:-
5
21410-41F00
HUB, SLEEVE
1702:-
6
21471-37400
SEAT, WAVE WASHER
137:-
7
09164-22007
WASHER
78:-
8
09140-22008
NUT
78:-
9
09164-00004
WASHER (110.5X119X0.9)
179:-
12
21442-37401
PLATE, CLUTCH DRIVE NO.2
197:-
13
21451-14A00
PLATE, DRIVEN, åtgår 6st
104:-
14
21462-27A00
DISC, PRESSURE
802:-
15
21413-41F00
SPRING, CLUTCH, åtgår 4st
64:-
16
09116-06203
BOLT (6X30), åtgår 4st
40:-
17
23121-31E00
PIECE, CLUTCH PUSH
322:-
18
09263-15003
BEARING (15X28X2)
145:-
19
09160-15045
WASHER (15.5X28X1)
52:-
20
23110-27A00
ROD, CLUTCH PUSH, RH
294:-
21
23111-45C00
ROD, PUSH LH
192:-
22
09285-06017
OIL SEAL (6X34X11.0)
228:-
23
23117-45C00
RETAINER
80:-
24
23130-45C00
BRACKET, RELEASE SCREW
288:-
25
23200-41F00
SCREW ASSY, CLUTCH RELEASE
1112:-
26
09134-06010
SCREW
40:-
27
08310-00067
NUT
32:-
28
09443-09050
SPRING, RELEASE ARM
52:-
