1
69600-38B01

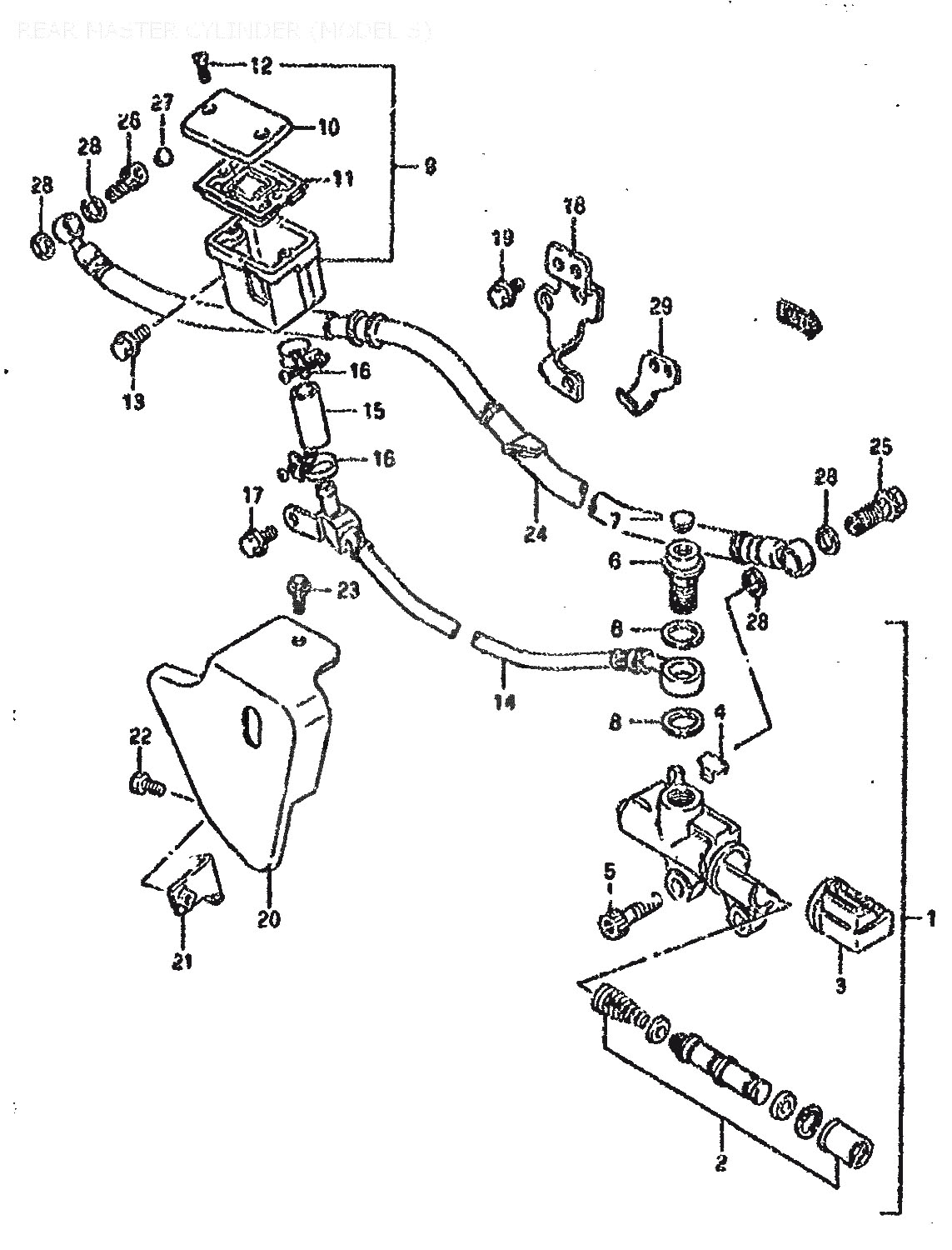

CYLINDER ASSY, REAR MASTER (MODEL H/J/L/M/N->69600-38B01)
3840:-
2
69600-38810
PISTON/CUP SET
540:-
3
69691-38B00
BOOT
150:-
4
69696-38B00
PLATE, STOP
105:-
5
09106-08081
BOLT (8X23), åtgår 2st
40:-
7
09250-08014
CAP
45:-
8
69662-38B00
WASHER, åtgår 2st
55:-
9
69740-38B21
TANK ASSY, REAR RESERVOIR (MODEL L/M/N->69740-38B21)
*
10
59669-05D00
CAP
175:-
11
59667-04700
DIAPHRAGM
160:-
12
69689-04A00
SCREW, åtgår 2st
30:-
14
69730-38B00
HOSE, TANK
4255:-
15
69731-38B00
HOSE, TANK
95:-
18
69750-38B00
BRACKET, TANK
*
20
69795-38B10
COVER, TANK (WITH HOLE)
755:-
21
69790-38B00
BRACKET, COVER
*
23
01547-06107
BOLT
30:-
26
09360-10028
BOLT (10X1.00X24)
120:-
27
09250-08012
CAP, RH
30:-
28
09161-10009
WASHER (10X15X1.5), åtgår 4st
30:-
29
69244-38B00
CLAMP, HOSE
90:-
23
69750-38B00
BRACKET, TANK
*
27
69795-38B10
COVER, TANK (WITH HOLE)
755:-
28
69790-38B00
BRACKET, COVER
*
30
01547-06107
BOLT
30:-
33
09360-10028
BOLT (10X1.00X24)
120:-
34
09250-08012
CAP, RH
30:-
35
09161-10009
WASHER (10X15X1.5), åtgår 4st
30:-
36
69244-38B00
CLAMP, HOSE
90:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
