0
13220-45C10

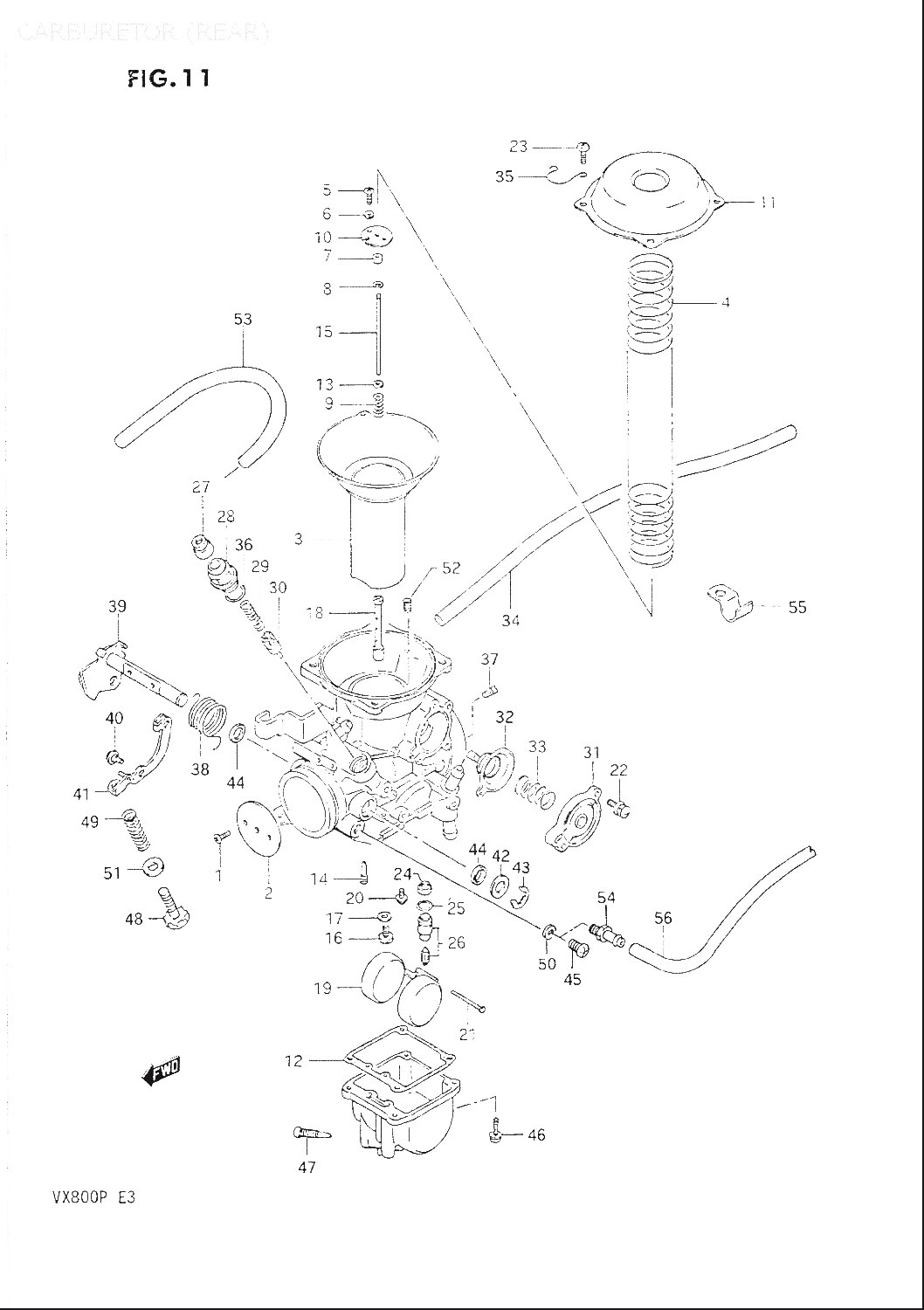

CARBURETOR ASSY, REAR
*
1
13604-44080
SCREW, åtgår 2st
45:-
3
13500-38A10
DIAPHRAGM ASSY
2900:-
4
13503-38B00
SPRING
170:-
6
08321-21033
LOCK WASHER, åtgår 2st
20:-
7
13387-47010
RING
80:-
8
13394-10010
CLIP, NEEDLE
65:-
9
13388-44030
SPRING
110:-
10
13389-37400
PLATE
95:-
11
13502-45C00
COVER
*
12
13251-38A10
GASKET
125:-
13
13382-44030
WASHER
60:-
14
09492-45016
JET, PILOT (45)
150:-
15
13383-45C30
NEEDLE, JET (5F69-1)
*
16
09491-26012
JET, MAIN (132.5)
155:-
17
13382-03110
WASHER
30:-
18
09494-00689
JET, NEEDLE (P-7)
*
19
13252-23010
FLOAT
330:-
20
13602-05A10
SCREW
40:-
21
13254-92311
PIN, FLOAT
35:-
22
13602-19B50
SCREW, åtgår 2st
55:-
23
02112-04087
SCREW, åtgår 4st
20:-
24
13376-19F00
FILTER
110:-
25
13374-35C00
O RING
120:-
26
13370-38B00
VALVE ASSY, NEEDLE
945:-
28
13418-43410
HOLDER, GUIDE
120:-
29
13417-22010
SPRING
60:-
30
13411-01400
PLUNGER ASSY
220:-
31
13484-45C00
COVER
260:-
32
13480-05A10
DIAPHRAGM ASSY
1190:-
33
13481-45C10
SPRING
75:-
35
13692-02500
CLIP
110:-
37
09492-65005
JET, PILOT AIR (65)
155:-
40
13602-05A30
SCREW
60:-
41
13554-45C20
LEVER ASSY
530:-
42
13557-47070
WASHER
60:-
43
13617-44080
E RING
30:-
44
13556-05A10
SEAL, åtgår 2st
60:-
45
09125-05122
SCREW
35:-
46
13601-04148
SCREW, åtgår 4st
30:-
47
13247-02340
SCREW, DRAIN
55:-
49
13271-93011
SPRING
*
50
13523-46110
WASHER
30:-
51
13277-37100
WASHER
25:-
51
13277-37100
WASHER
25:-
52
09493-40003
JET, PILOT AIR (2.0)
255:-
54
13685-45C00
NIPPLE
*
55
09403-09306
CLAMP
30:-
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
