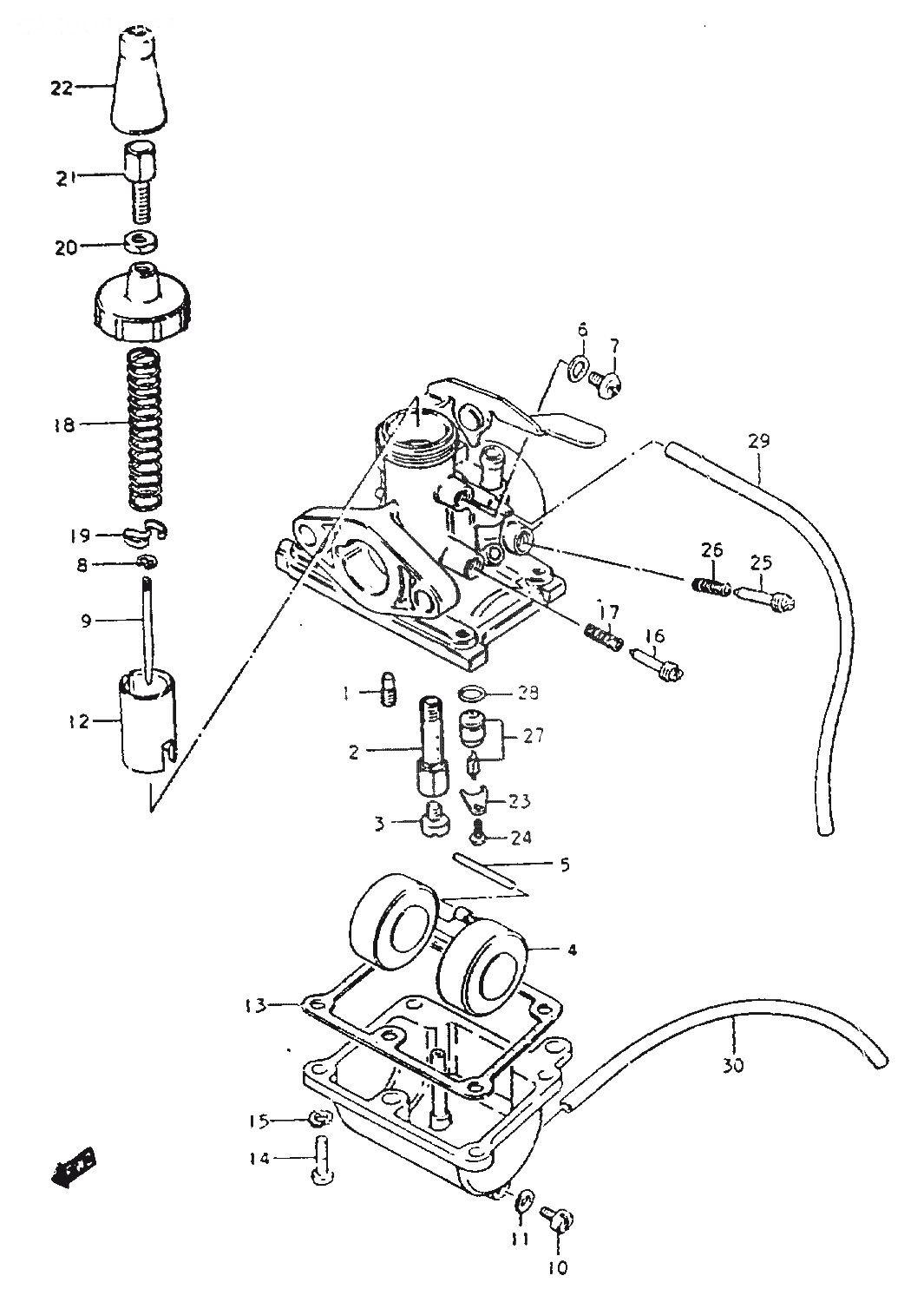

1
09492-15002
JET, PILOT (15)
*
2
09494-00233
JET, NEEDLE (E-7)
*
3
09491-70010
JET MAIN (, OPT, OPT)
175:-
3
13252-46110
FLOAT
390:-
5
13254-20010
.PIN, FLOAT
32:-
6
13663-46710
GASKET
*
9
13383-06111
NEEDLE, JET (3L4-2)
*
10
13247-05010
PLUG, DRAIN
67:-
11
13249-05010
GASKET, DRAIN PLUG
23:-
12
13551-46750
VALVE, THROTTLE (CA:2.0)
*
13
13251-46110
GASKET, FLOAT CHAMBER
155:-
16
13267-01010
SCREW, THROTTLE STOP
90:-
17
13268-01010
SPRING (M12MARK2,M15D,M12M12MARK2,M15D,M12)
48:-
18
13573-46710
SPRING, THROTTLE VALVE
75:-
20
13661-16600
.NUT, CABLE ADJUSTER LOCK
52:-
21
13577-48110
.ADJUSTER
133:-
22
13681-16601
BOOT
147:-
23
13373-46710
PLATE
77:-
25
13269-04010
SCREW, PILOT AIR
148:-
26
13268-01010
SPRING (M12MARK2,M15D,M12M12MARK2,M15D,M12)
48:-
27
13370-46710
VALVE ASSY, NEEDLE
1025:-
28
13374-47610
O RING
*
30
13684-30650
TUBE, AIR VENT
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
