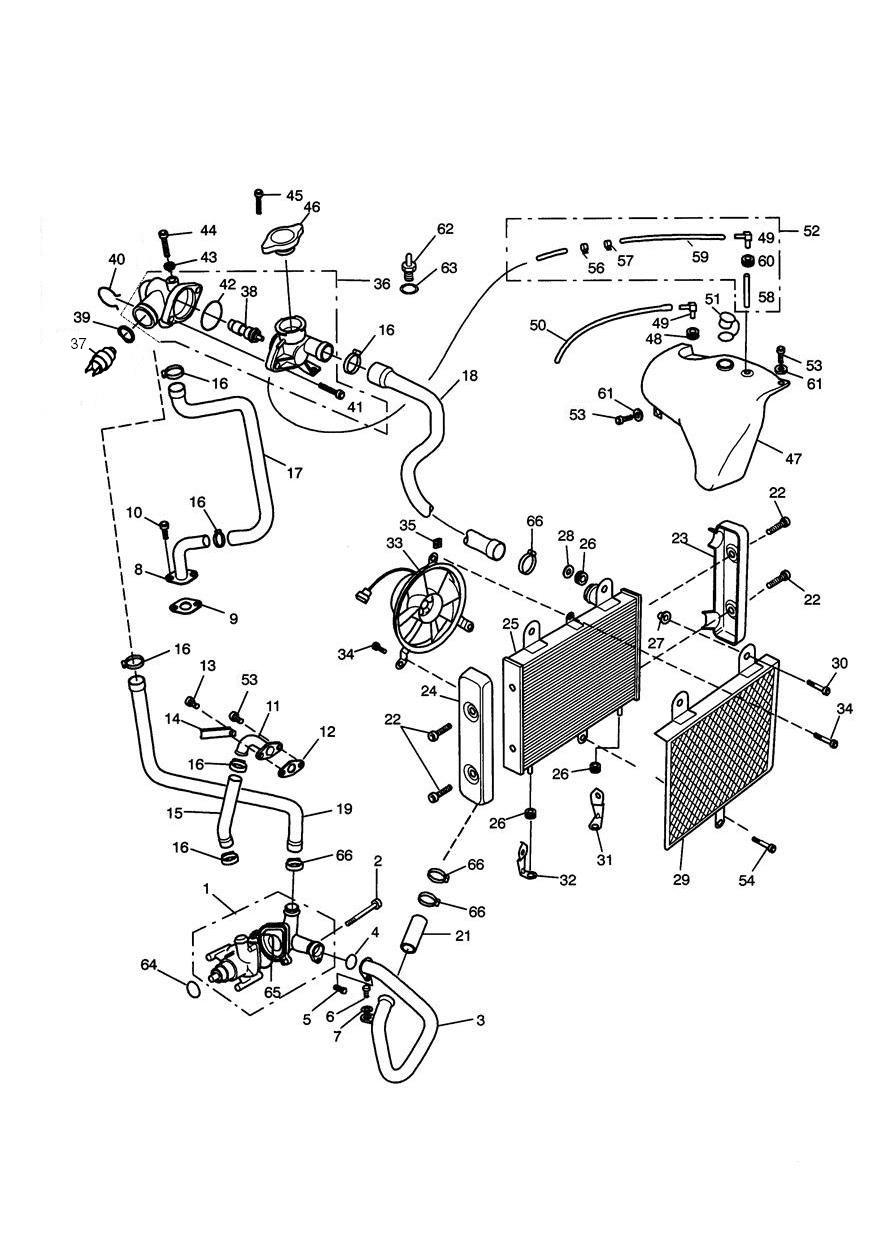

1
T2100100
Water pump assy
6810:-
4
T3600036
O ring
25:-
5
T3203115
Bolt, RHHF, M6x1.0x12, S/S
55:-
6
T3205653
Bolt, HHF, Lghtd, M8 x 30, Slv
25:-
9
T2100054
Gasket, Cyl Head Outlet
30:-
10
T3205063
Bolt, M6 x 20, åtgår 2st
M6 x 16mm
60:-
12
T2102143
Gasket
25:-
13
T3331234
Screw, Torx, P/H, M6 x 20, Slv
90:-
14
T2100049
Bracket
35:-
15
T2100110
Hose outlet
390:-
16
T2102242
Hose Clip, 23-25, Bright, Ss, åtgår 6st
130:-
17
T2100311
Hose
435:-
18
T2100321
Hose top
1035:-
19
T2100333
Hose
370:-
21
T2100351
Hose bottom
305:-
22
T3330726
Screw, åtgår 4st
M6 x 10mm
65:-
26
T3020300
Grommet, Rubber, åtgår 4st
60:-
28
T3555033
Washer, M8, åtgår 2st
45:-
31
T2101314
Radiator bracket
LH
80:-
32
T2101315
Radiator bracket
RH
80:-
33
2101202-T0301
Fan assembly
6975:-
34
T3331517
Screw, P/HD Tx, Shld, M6 x 16, S, åtgår 3st
20:-
35
T3350111
Nut, Captive, M6
85:-
37
T2100789
Switch fan
1540:-
39
T3600210
O ring
25:-
41
T3331102
Bolt, HHF, M6 X 25, S/S, åtgår 2st
50:-
42
T3600200
O ring
65:-
43
T3550542
Washer, Cu, Od12.5 x Id6.4
20:-
45
T3331043
Screw, Pan/Hd, Tx, M6 x 12, Slv, åtgår 2st
20:-
46
T2100074
Cap Assy
465:-
47
T2100450
Expansion tank
1500:-
48
T3450035
Grommet, Dia 8, Dia 12.5, 3
35:-
49
T2100405
Elbow, ID 8.0 Tube, åtgår 2st
25:-
50
T3620300
Overflow pipe
Expansion Tank Overflow
210:-
51
T2100997
Cap, Expansion Tank
165:-
53
T3330334
Screw, Tx, Pan/HD, M6 x 16, Slv, åtgår 3st
45:-
54
T3331299
Screw, Torx PH, M6 x 40, Black
65:-
56
T3700077
Clip, 10.5 Rer Oetiker
70:-
57
T3700440
Clip, Hose, 11-12.5mm
90:-
58
T3620317
Pipe
Internal Expansion tank
40:-
59
T3620348
Pipe, Expansion Tank To T.stat
150:-
61
T3550603
Washer, 6.5 x 20 x 2, åtgår 2st
10:-
62
2102150-T0301
Sensor temperature
670:-
64
3600160-T0301
O Ring, Water Pump
150:-
65
T3600230
Seal
95:-
66
T2102113
Clip, Hose, 20-32, Bright, Ss, åtgår 4st
130:-
