11009
92065-058
GASKET CHECK VALVE
39:-
14024
14025-1895
COVER,SOUND ARRESTER
212:-
14032
14032-1179
COVER-CLUTCH
3272:-
16115
16115-1009
CAP-OIL FILLER
127:-
32033
32033-1204
PIPE,CLUTCH COVER
255:-
92002
92001-1855
BOLT,BANJO,8X20
77:-
92002
92002-1449
BOLT,6X10, åtgår 5st
39:-
92037
92037-1539
CLAMP,WIRING HARNESS, åtgår 2st
46:-
92037
92037-1541
CLAMP,OIL HOSE
132:-
92043
92042-007
PIN-DOWEL, åtgår 4st
55:-
92049
92049-1017
OIL SEAL,SD-8187
78:-
92049
92049-1186
SEAL-OIL,TB13205
72:-
92055
92055-049
"0" RING,31MM
39:-
92055
92055-1146
RING-O
76:-
92066
92066-1163
PLUG,COVER,LH
130:-
92075
92075-1633
DAMPER,CLUTCH COVER
1104:-

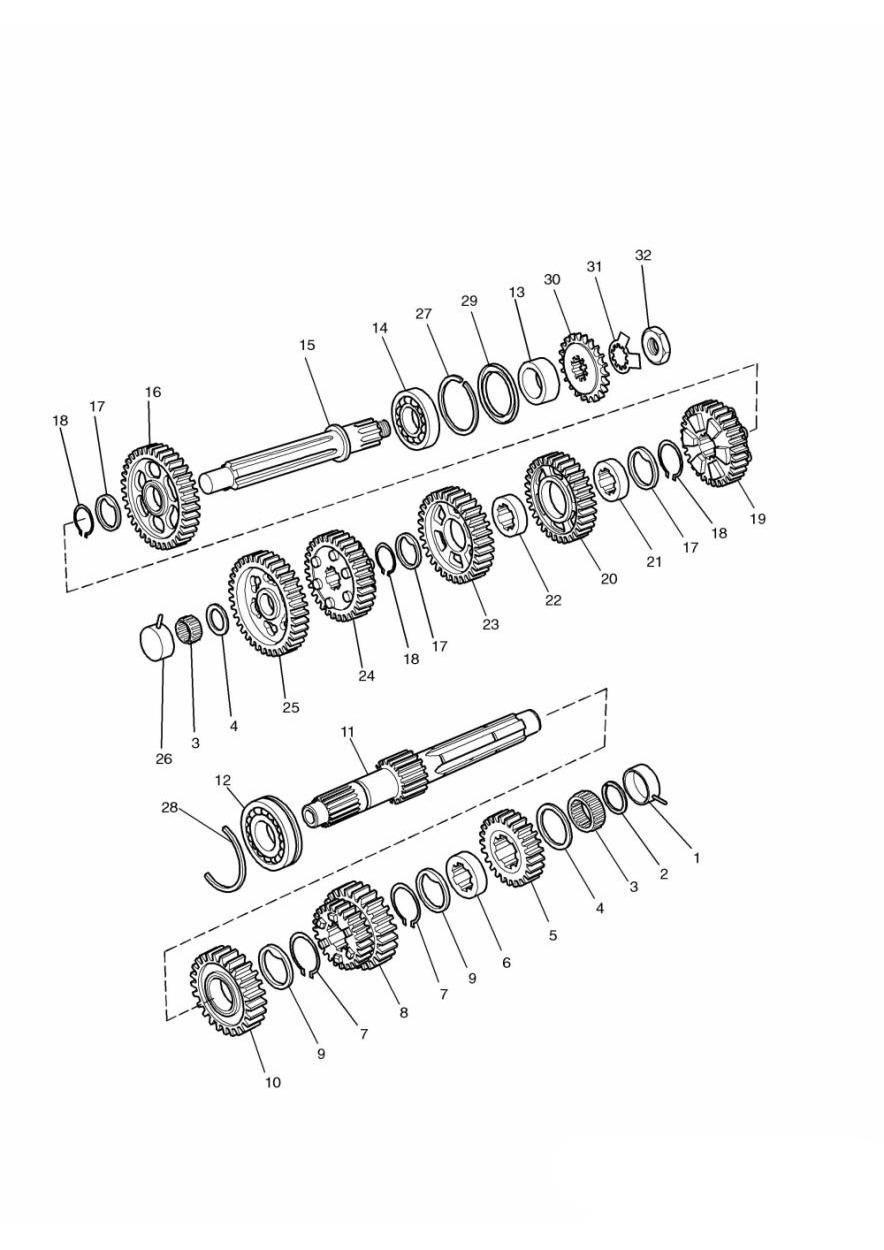

1
T1180156
Sleeve Assy, Needle bearing
1135:-
2
T3500201
Circlip, EXT, 23.5 x 1.2
75:-
3
T3800006
Bearing, Needle, K25x32x16, åtgår 2st
270:-
4
T3555005
Washer, 25.5 x 38 x 1.5, åtgår 2st
55:-
7
T3500003
Circlip, 32mm Shaft, åtgår 2st
120:-
12
3800002-T0301
Bearing, Ball, DG2868 GN1C3
710:-
14
T3800132
Bearing, 30 x 62 x 16, DGB
1950:-
17
1180290-T0301
Thrust washer, åtgår 3st
30:-
18
T3500202
Circlip, åtgår 3st
95:-
20
1180450-T0301
Gear output
4th
1950:-
27
T3800300
Snap Ring, Ext, 62 x 1.7
60:-
28
T3800196
Retaining Ring, Bearing
85:-
29
T3600112
Oil seal
185:-
30
T1180177
Sprocket Gearbox, 18 T
490:-
31
T1180181
Washer, Gearbox Sprocket
165:-
