13091
13091-1274
HOLDER,OIL FILTER
120:-
13091
13091-1333
HOLDER,PUMP GEAR
255:-
13107
13107-1105
SHAFT,OIL PUMP
759:-
14024
14025-1422
COVER,OIL FILTER,F.BL
348:-
14043
16111-003
STRAINER,OIL
149:-
16082
16082-1060
PUMP-ASSY-OIL
2571:-
16085
16085-1103
GEAR,OIL PUMP,35T
1152:-
16126
16126-1108
VALVE,OIL FILTER
371:-
16130
16130-1001
RELEAF VALVE ASSY
349:-
16142
16142-1052
COVER-PUMP,LH
380:-
16142
16142-1054
COVER-PUMP,RH
380:-
16154
16154-1007
ROTOR ASSY,OIL PUMP
607:-
16154
16154-1053
ROTOR-PUMP
607:-
32099
32099-1083
CASE,OIL FILTER
1075:-
52010
16099-003
FILTER,OIL
105:-
92001
92001-1105
BOLT,FLANGED,6X38, åtgår 4st
44:-
92022
92022-1012
WASHER,20.5X30X1.0
40:-
92026
92026-1230
SPACER,OIL PUMP
39:-
92036
92036-1052
RING-SNAP,PUMP GEAR
55:-
92043
92042-007
PIN-DOWEL
55:-
92043
92043-1061
PIN,DOWEL 5X17.8, åtgår 2st
46:-
92043
92043-111
SPRING PIN
54:-
92043
92043-1213
PIN,18X20X12, åtgår 3st
54:-
92043
92043-1302
PIN,DOWEL,8X10, åtgår 2st
17:-
92055
92055-077
"O" RING, åtgår 3st
58:-
92062
92062-1055
NOZZLE
85:-
92081
92081-109
SPRING
99:-

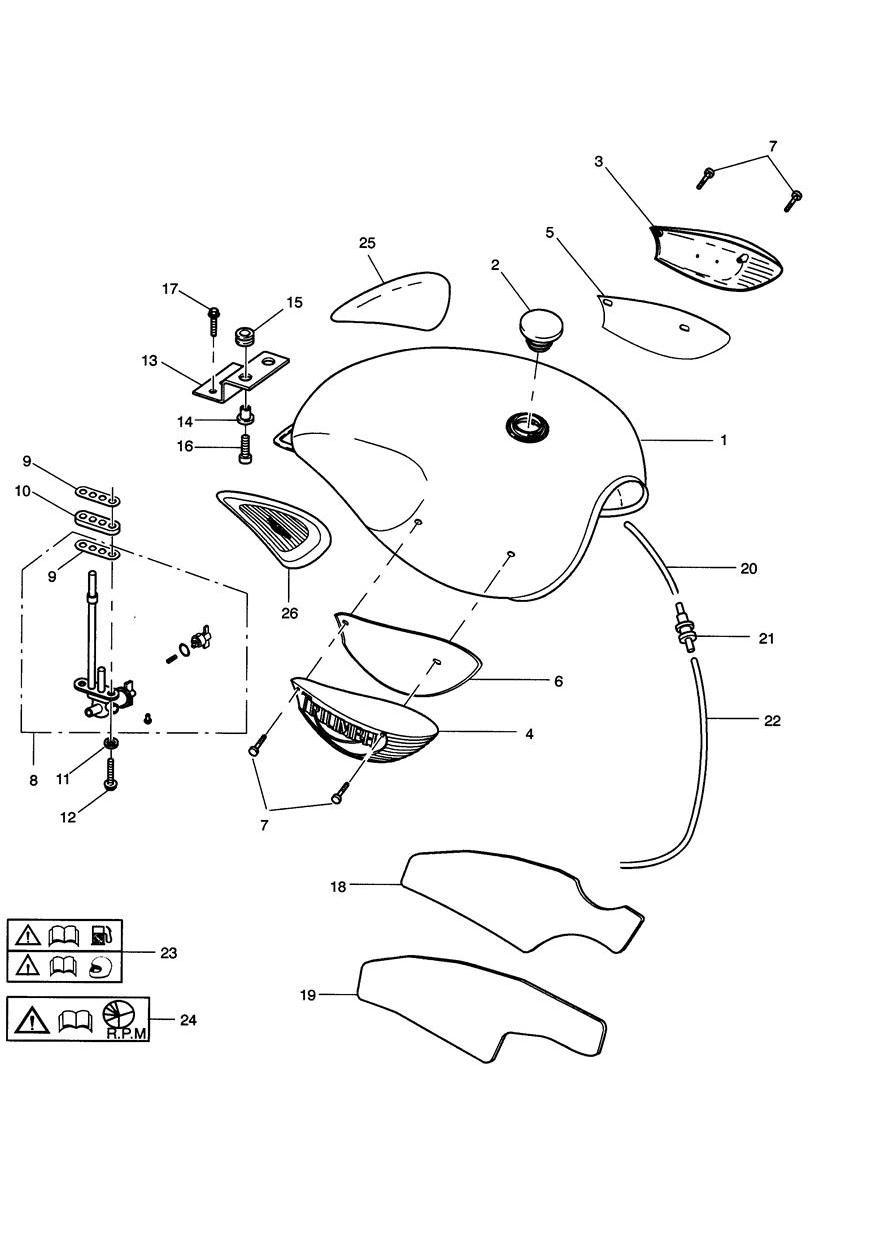

2
T2400597
Fuel Filler Cap, Screw Type
1865:-
3
T3900066
Badge, Tank, LH, Type B
LH
1705:-
4
T3900067
Badge, Tank, RH, Type B
RH
1705:-
5
T3660128
Gasket, Tank Badge, LH
LH
210:-
6
T3660129
Gasket, Tank Badge, RH
RH
210:-
7
T3330529
Screw, Raised C'sunk, Trx, åtgår 4st
M5 x 16mm
120:-
8
T2400150
Fuel Tap Assy, T309RT
2085:-
9
2400086-T0301
Seal, Fuel Tap (EN), åtgår 2st
80:-
10
T2400151
Spacer, Fuel Tap Assy, T309RT
855:-
11
3550150-T0301
Washer, Sealing, 11.5x6.4x0.64, åtgår 2st
25:-
12
T3331102
Bolt, HHF, M6 X 25, S/S, åtgår 2st
M6 x 25mm
50:-
14
T3010042
Flanged Sleeve, M6 x 10 x 18, åtgår 2st
30:-
15
T2400602
Grommet, Long, Tank Rear Mount, åtgår 2st
35:-
16
T3205083
Bolt, HHF, LGHTD, M6 x 28, Slv, åtgår 2st
45:-
17
T3203222
Bolt, HHF, M6 x 12, Slv, åtgår 2st
30:-
18
T2301033
Heat shield
LH
975:-
20
T3620285
Pipe breather
» 82479
75:-
22
T3620278
Hose
Lower
150:-
23
T3900194
Label, Fuel Tank
95:-
24
T3900154
Label, Running In
50:-
26
T2300303
Pad rubber
RH
539:-
