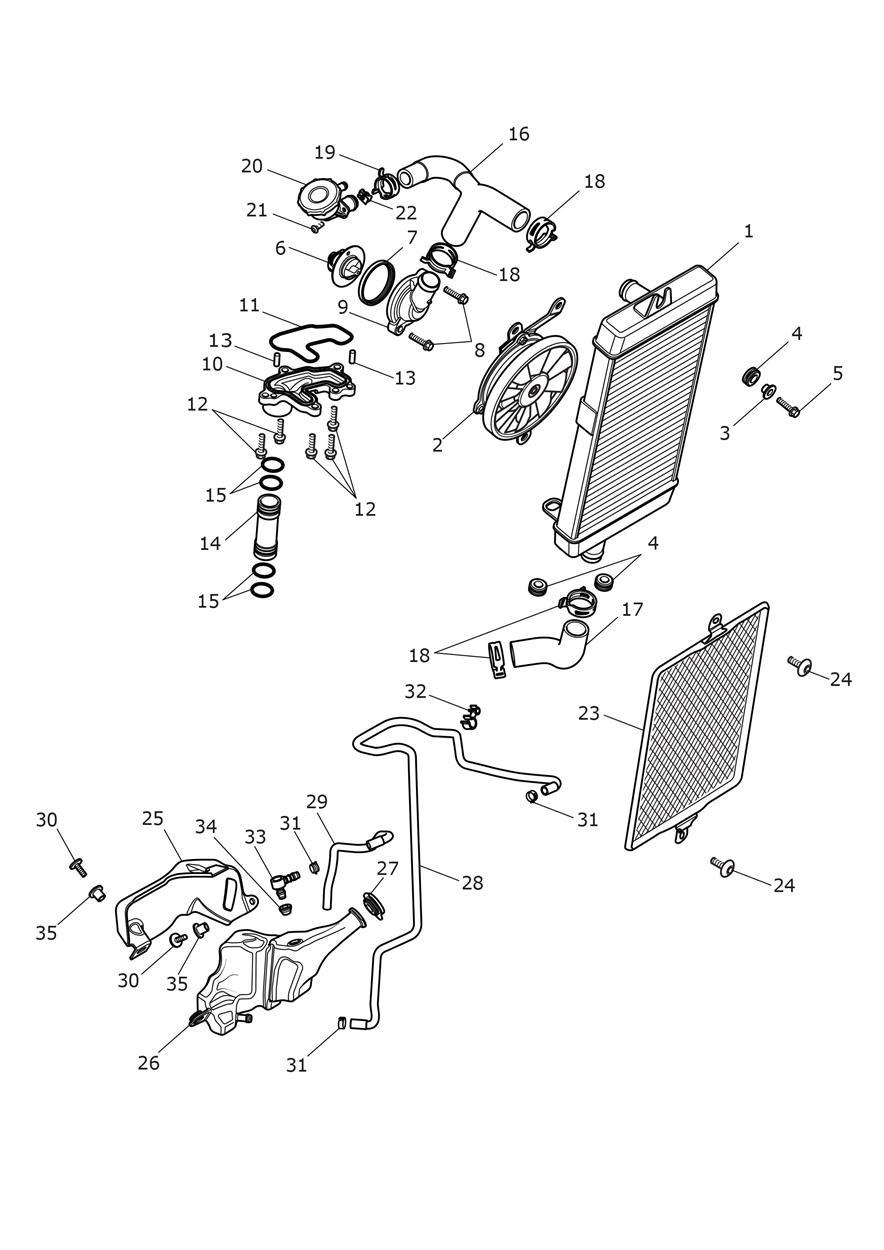

1
T2101333
Radiator
14785:-
2
T2101666
Fan, Radiator
7835:-
3
T3010702
Flanged Sleeve, 6.4 x 10 x 8.5
95:-
4
T3020153
Grommet, 13 x 3 x 10, åtgår 3st
35:-
5
T3205067
Bolt, HHF, Lghtd, M6 x 25, Slv
45:-
6
T2100676
Thermostat
1035:-
7
T2100201
Seal, Thermostat
110:-
8
T3205083
Bolt, HHF, LGHTD, M6 x 28, Slv, åtgår 2st
45:-
9
T2101255
Cover, Water Outlet
845:-
10
T2101266
Coolant Manifold
1970:-
11
T2101277
Sealing Ring, Coolant Manifold
225:-
12
T3200134
Bolt, RHHF, M6x25, Encaps, åtgår 5st
50:-
13
T3000005
Dowel, Dia 6.0 x 16, åtgår 2st
20:-
14
T2101233
Pipe, Coolant Feed, Internal
455:-
15
T3600124
O Ring, ID 21.5 x 3, åtgår 4st
60:-
16
T2101180
T-Piece, Coolant, Assy
470:-
17
T2101477
Hose, Coolant, Rad to Engine
210:-
18
T3706215
Clamp, Constant Tension, Dia 30, åtgår 4st
200:-
19
T3706212
Clamp, Constant Tension, Dia 23
200:-
20
T2101499
Filler Neck, Coolant
1220:-
21
T3330627
Screw, Pan/HD, TPT, Tx, M5 x 12
20:-
22
T3350129
Nut, Captive, M5
55:-
23
T2109602
Grill, Radiator
1805:-
24
T3330945
Screw, But/Hd, M5 x 16, Blk, åtgår 2st
140:-
25
T2101305
Kit, Expansion Tank Cover
> 775177
1000:-
25
T2101185
Expansion Tank Cover
775178 >
675:-
27
T2101015
Cap, Expansion Tank
35:-
28
T2100773
Hose, Rad to Expansion Tank
255:-
29
T2100687
Hose, Expansion Tank Overflow
815:-
30
T3330727
Screw, But/Hd, M6 x 20, Slv, åtgår 2st
60:-
31
T3700440
Clip, Hose, 11-12.5mm, åtgår 3st
90:-
32
T3700190
Clip, Rear Brake Hose
55:-
33
T2100433
Elbow, Overflow, Quickfit
100:-
34
T3450141
Grommet, TPE, Quickfit
35:-
35
T3010707
Sleeve, Flanged, 6.4 x 10 x 6.5, åtgår 2st
775178 >
55:-
