13271
13271-1058
PLATE
293:-
14001
14001-1258
SET-CRANKCASE
19854:-
14013
14013-1051
RING-POSITION, åtgår 2st
25:-
14014
14014-1140
PLATE-POSITION
70:-
27010
27010-1313
SWITCH,OIL PRESSURE
352:-
32152
32152-1545
PIPE,RH,L=76.8
251:-
32152
32152-1546
PIPE,L=137.2
460:-
92002
92002-1449
BOLT,6X10, åtgår 5st
39:-
92002
92002-1778
BOLT,SOCKET,6X16, åtgår 3st
46:-
92005
92005-1238
FITTING,BREATHER
99:-
92009
92009-1360
SCREW,6X16
40:-
92043
92043-1037
PIN,DOWEL,10X8.2X14, åtgår 5st
15:-
92046
92046-1148
BEARING-NEEDLE,HK1312
218:-
92049
92049-1474
SEAL-OIL,TC32578
153:-
92066
92066-1110
PLUG, åtgår 2st
58:-
92150
92150-1981
BOLT, åtgår 4st
44:-
92160
92160-1681
DAMPER, åtgår 4st
35:-
92160
92160-1868
DAMPER, åtgår 2st
208:-
92160
92160-1925
DAMPER
474:-
92170
92170-1577
CLAMP
44:-
92170
92170-1911
CLAMP
92:-
92191
92191-1167
TUBE,BREATHER
190:-

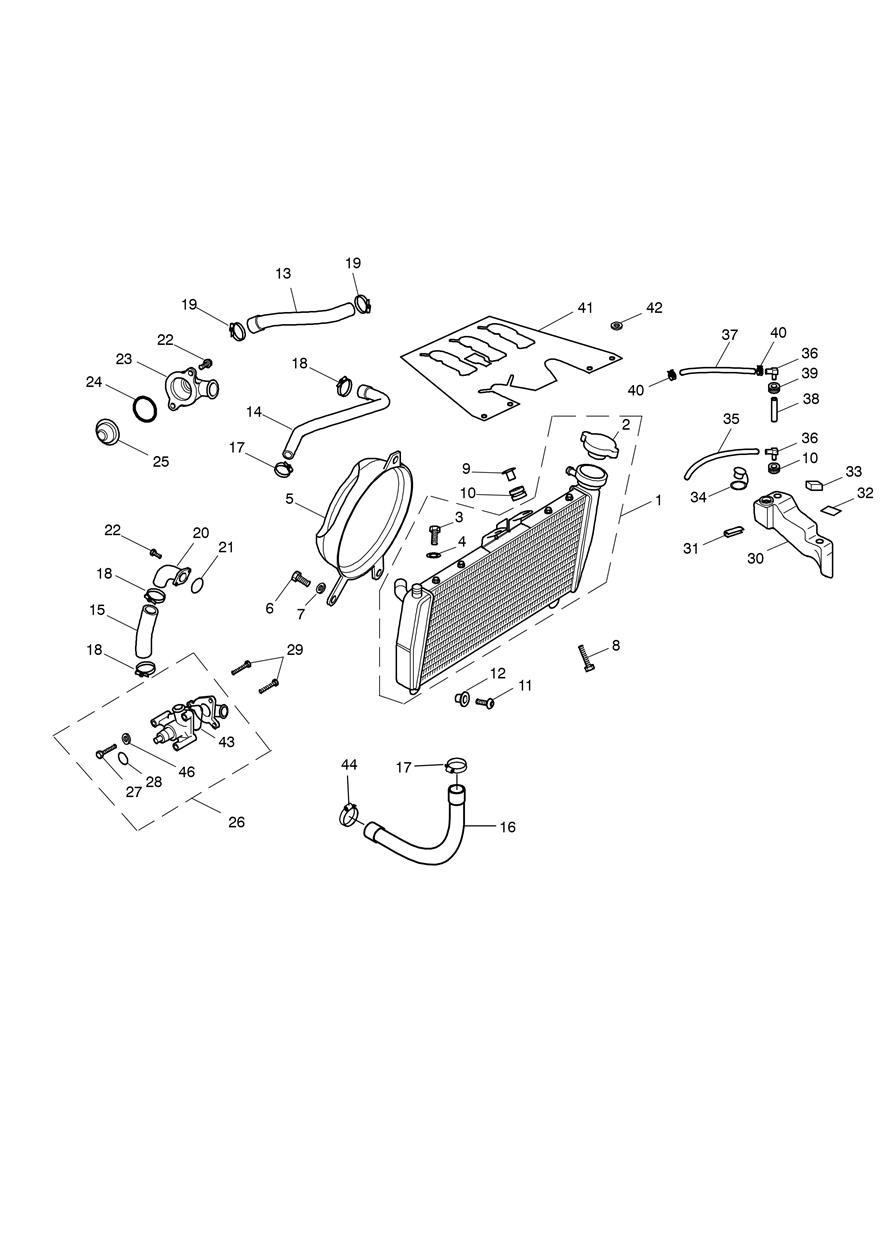

2
T2100699
Radiator cap
175:-
3
T3203222
Bolt, HHF, M6 x 12, Slv
30:-
4
T3550542
Washer, Cu, Od12.5 x Id6.4
20:-
5
T2100698
Fan assembly
8205:-
6
T3331043
Screw, Pan/Hd, Tx, M6 x 12, Slv, åtgår 3st
20:-
7
T3555004
Washer, 6.4 x 14 x 1.6, åtgår 3st
25:-
8
T3205083
Bolt, HHF, LGHTD, M6 x 28, Slv, åtgår 2st
45:-
9
T3010710
Flanged Sleeve, 6.4 x 9.6 x 13.4, åtgår 2st
60:-
10
T3021200
Grommet, Dia 14x4, Panel, åtgår 2st
55:-
11
T3205066
Bolt, RHHF, Domed, M6 x 20, S/S, åtgår 2st
75:-
12
T3010014
Flanged Sleeve, M6, Black, åtgår 2st
25:-
14
T2100751
Hose, Cyl Head to Rad
440:-
15
T2100112
Hose
> 227651
1115:-
15
T2107010
Kit, Water Elbow, Black
227652 >
1340:-
17
T3707580
Hose Clip, Dia 20-32, åtgår 2st
150:-
18
T3707585
Clip, Hose, Dia 27-35, åtgår 3st
80:-
19
T3700171
Hose Clip, Dia 14.0, åtgår 2st
115:-
20
T2107009
Kit, Water Elbow, Cast
915:-
21
T3600190
O Ring, 24 x 2.5
20:-
22
T3202304
Bolt, RHHF, M6 x 20, Slv, åtgår 4st
» 161317
90:-
23
T2100145
Elbow, Water, Cyl Hd, Raw
900:-
24
T2100713
O Ring, Water Elbow
60:-
25
T2100715
Thermostat
1190:-
26
T2100680
Water Pump Assy
3055:-
27
T3330804
Bolt, HHF, M6 x 25
20:-
28
3600160-T0301
O Ring, Water Pump
150:-
29
T3205075
Bolt, HHF, Lghtd, M6 x 65, Slv, åtgår 2st
65:-
30
T2100463
Expansion tank
1180:-
32
T3660112
Rubber Pad
30:-
33
T2072235
Pad, Tank Support
70:-
34
T2100997
Cap, Expansion Tank
165:-
35
T3620305
Pipe
Expansion Tank Overflow
90:-
36
T2100405
Elbow, ID 8.0 Tube, åtgår 2st
25:-
37
T3620300
Overflow pipe
Expansion Tank To Thermostat
210:-
38
T3620320
Pipe, Expansion Tank, Internal
Internal Expansion tank
30:-
39
T3450035
Grommet, Dia 8, Dia 12.5, 3
35:-
40
T3700440
Clip, Hose, 11-12.5mm, åtgår 2st
90:-
42
T3550253
Washer, Dia 5 mm, Retaining, åtgår 4st
20:-
43
T3600230
Seal
95:-
44
T3707590
Hose Clip, 30-38
155:-
46
T3550542
Washer, Cu, Od12.5 x Id6.4
20:-
