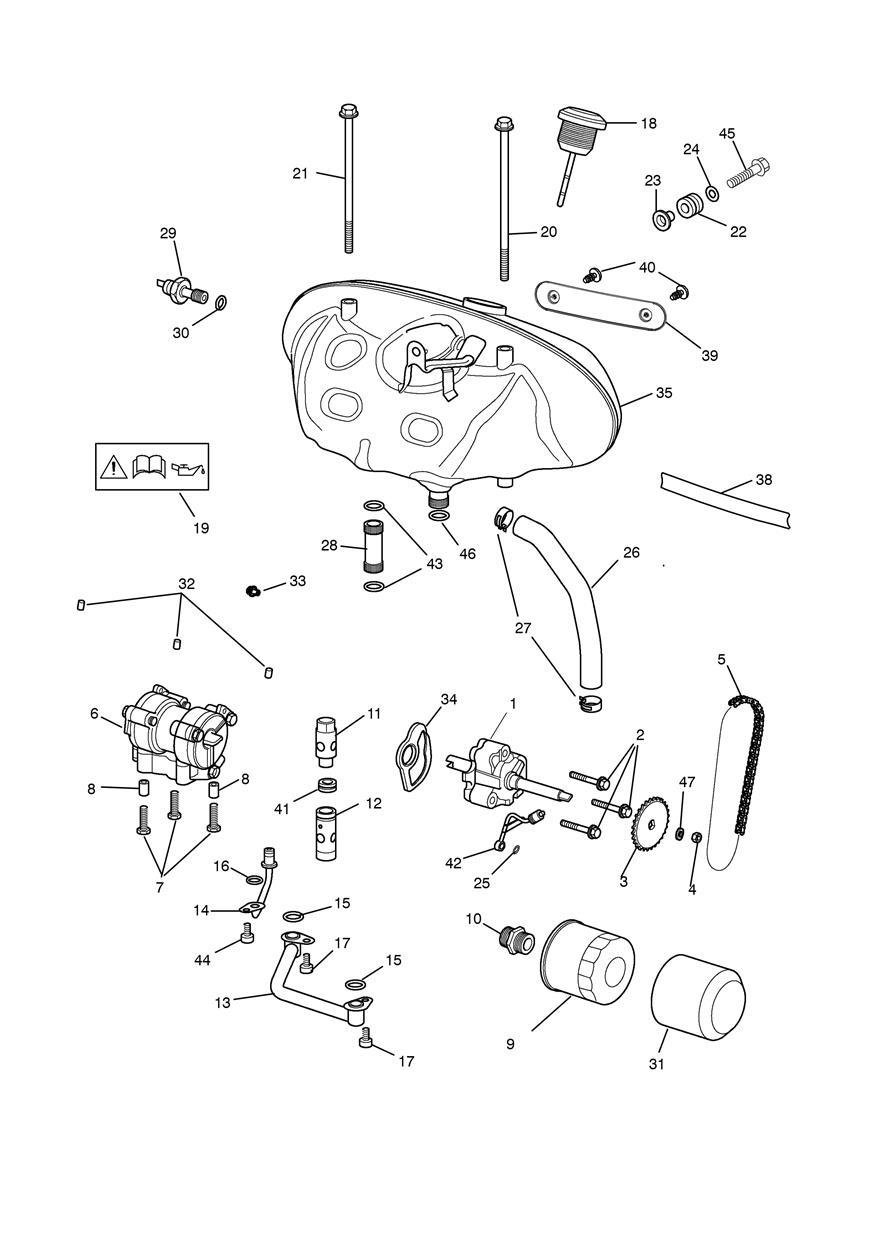

1
T1210092
Oil Pump
Eng No 219207 >
5580:-
2
T3201029
Bolt, RHHF, M6 x 40, Raw, åtgår 3st
35:-
3
T1210810
Sprocket, Oil Pump Drive, 25T
560:-
4
T3350134
Locknut, M10 x 1.25
45:-
5
T1210007
Chain, 6.35 Pitch, 70 Links
1840:-
6
T1210002
Oil Pump, Twin Rotor
8390:-
7
T3331041
Screw, Pan/Hd, Tx, M6 x 25, Enc, åtgår 3st
20:-
8
T3000101
Dowel, Hollow, 8 x 14, åtgår 2st
65:-
9
T1218001
Oil Filter, OES
215:-
9
T1210440
Oil Filter Multipack (24)
4720:-
9
T1210443
Oil Filter Multipack (80)
16495:-
10
T1210438
Oil Filter Adaptor
200:-
11
T1210059
Pressure Relief Valve
320:-
12
T1210003
Check Valve, Oil
625:-
13
T1210008
Pipe, Oil Feed
795:-
14
T1210009
Pipe, Oil Feed
140:-
15
T3600085
O-Ring, ID 14.6, SD 2.4, åtgår 2st
75:-
17
T3051062
Screw, M6 x 12, Enc, Raw, åtgår 2st
25:-
18
T1213000
Cap, Filler, Oil Tank
795:-
19
T3900136
Label, Engine Oil
50:-
20
T3203094
Bolt, RHHF, M8 x 165, Slv, Enc
170:-
21
T3203090
Bolt, RHHF, M8 x 150, Slv, Enc
170:-
22
T3021200
Grommet, Dia 14x4, Panel
55:-
23
T3010701
Flanged Sleeve, 6.4 x 10 x 14.5
90:-
24
T3555004
Washer, 6.4 x 14 x 1.6
25:-
25
T3550542
Washer, Cu, Od12.5 x Id6.4
20:-
26
T1210024
Breather Pipe, Oil Tank
310:-
27
T3700051
Hose Clip, Dia 18.1-20 x 8mm, åtgår 2st
40:-
28
T1210239
Oil Pipe
915:-
29
T1210504
Switch & Banjo Bolt, Oil Press.
340:-
30
T3550546
Washer, Cu, OD 16 x ID 10.2/
20:-
31
T1210041
Oil Filter Cover, Chromed
N/A to Rocket X
1235:-
31
T1210245
Cover, Oil Filter, Black
Rocket X Only
815:-
32
T1211000
Sleeve, Oil Jet, Piston, åtgår 3st
105:-
33
T1210057
Oil Cooling Jet
535:-
34
T1210064
Strainer, Oil Pump
795:-
35
T1210259
Catch Tank, Oil, Painted Black
Eng No 280584 >
8185:-
38
T1215575
Badge, Oil Tank
Rocket X Only
975:-
39
T1210053
Embellisher, Catch Tank
> 574812
2235:-
39
T1215000
Embellisher, Oil Tank
Roadster Only - N/A to Rocket X
1990:-
39
T1215565
Badge Mount, Oil Tank
Rocket X Only
1765:-
40
T3332666
Screw, But/Hd ,Skt, M6 x 1.0 x 12, S/S, åtgår 2st
> 452829
75:-
40
T3330726
Screw, Btn/Hd, M6 x 12, Slv, åtgår 2st
452830 >
65:-
41
T3550970
Spring OD 15.24, 12.70 FL
115:-
43
T3600134
O Ring 14.3 x 2.4, åtgår 2st
70:-
44
T3051063
Screw, Cap/HD, M6 x 16, Enc, Raw
20:-
45
T3205067
Bolt, HHF, Lghtd, M6 x 25, Slv
45:-
46
T3600134
O Ring 14.3 x 2.4
> Eng No 280584
70:-
46
T3600117
O Ring 17.0 x 3.0
Eng No 280584 >
125:-
47
T3550632
Washer, 10.5 x 21 x 2
50:-
