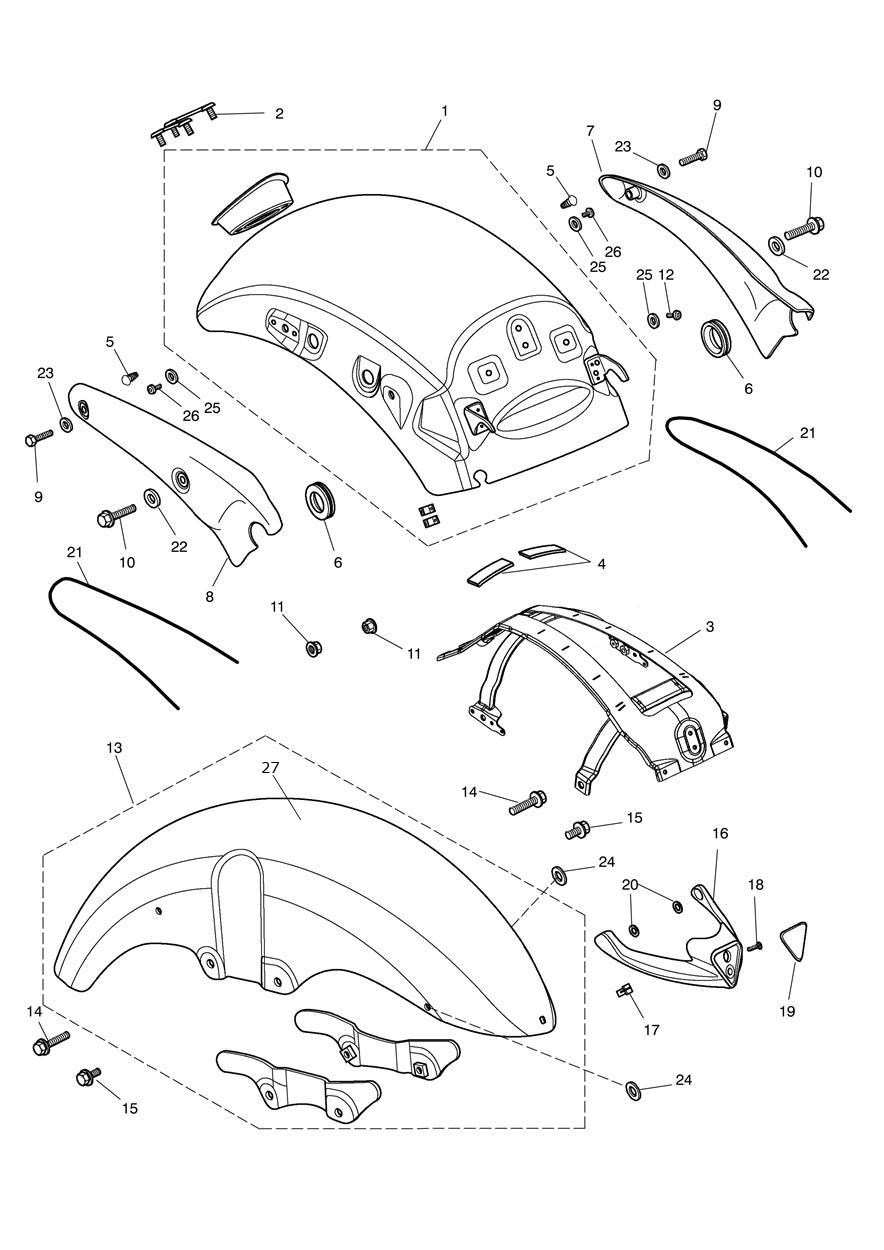

1
T2306000-CL
Mudguard, Rear Assy
Cardinal Red > 281465
16490:-
1
T2306000-PG
Mudguard, Rear Assy
Jet Black > 281465
16490:-
1
T2306000-LC
Mudguard, Rear Assy
Graphite 210262 > 281465
16490:-
1
T2306000-FG
Mudguard, Rear Assy
Scorched Yellow 241570 > 281465
16915:-
1
T2306336-JR
Mudguard, Rear Assy
Caeruleus Blue - Tribal only > 281465
14165:-
1
T2305860-PG
Mudguard, Rear Assy
Jet Black & Sunset Red - Classic only > 281465
16915:-
1
T2305852-CS
Mudguard, Rear Assy
Mulberry Red 281466 > 317246
16915:-
1
T2305852-CT
Mudguard, Rear Assy
Claret - 317247 >
16490:-
1
T2305862-PR
Mudguard, Rear Assy
Phantom Black 281466 > 574812
15550:-
1
T2305862-PS
Mudguard, Rear Assy
Matt Black - Roadster Only > 574812
19920:-
1
T2305852-PU
Mudguard, Rear Assy
Phantom Red Haze - Roadster Only - 477033 > 550006
16465:-
1
T2305872-PR
Mudguard, Rear Assy
Phantom Black (Red Stripe) - 574813 >
16490:-
1
T2305862-PD
Mudguard, Rear Assy
Matt Phantom Black (White Stripe) 574813 >
16490:-
2
T2306008
Brkt, No Plate Mounting, åtgår 2st
> 227708
215:-
2
T2306018
Bracket, Number Plate Mounting, åtgår 2st
227709 >
200:-
3
T2306030
Pressing, Mudguard Support
1335:-
4
T3660112
Rubber Pad, åtgår 2st
> 207889
30:-
5
T3450290
Fir Tree, M5, Dia 12.1 x 15, åtgår 2st
25:-
6
T2306035
Grommet, Dia 38 x Dia 28 x 14, åtgår 2st
40:-
7
T2306010
Cover, Mudguard Rear, LH
> 574812
5435:-
7
T2306016
Cover, Mudguard, Rear, LH
574813 >
3980:-
8
T2306020
Cover, Mudguard Rear, RH
> 574812
5435:-
8
T2306026
Cover, Mudguard, Rear, RH
574813 >
3980:-
9
T3200455
Bolt, HHF, M8 x 33, A2 S/S, åtgår 2st
> 458361
115:-
9
T3205868
Bolt, HHF, Lghtd, M8 x 33, Slv, åtgår 2st
458362 > 636929
100:-
9
T3205882
Bolt, Truss/Hd, TRX, M8 x 35, åtgår 2st
636930 >
135:-
10
T3200452
Bolt, HHF, M10x1.25x45, A2, SS, åtgår 2st
> 458361
135:-
10
T3205825
Bolt, HHF, Lghtd, M10 x 45, Slv, åtgår 2st
458362 > 636929
110:-
10
T3205883
Bolt, Truss/Hd, TRX, M10 x 45, åtgår 2st
636930 >
135:-
11
T3350012
Locknut, Flgd, M6, Black, Zinc, åtgår 2st
> 438422
20:-
11
T3350003
Locknut, Flanged, M6 x 1.0, åtgår 2st
438423 >
20:-
12
T3331043
Screw, Pan/Hd, Tx, M6 x 12, Slv
20:-
13
T2305900-CL
Mudguard Assy, Front
Cardinal Red > 281465
13050:-
13
T2305900-PG
Mudguard Assy, Front
Jet Black > 281465
13050:-
13
T2305900-LC
Mudguard Assy, Front
Graphite 210262 > 281465
13050:-
13
T2305900-FG
Mudguard Assy, Front
Scorched Yellow 241570 > 281465
13050:-
13
T2305930-JR
Mudguard Assy, Front
Caeruleus Blue - Tribal only > 281465
10410:-
13
T2305930-CS
Mudguard Assy, Front
Mulberry Red - Tribal only > 281465
13050:-
13
T2305855-PG
Mudguard Assy, Front
Jet Black & Sunset Red - Classic only > 281465
13050:-
13
T2305849-CS
Mudguard Assy, Front
Mulberry Red 281466 > 317246
10625:-
13
T2305853-PR
Mudguard Assy, Front
Phantom Black 281466 > 574812
13050:-
13
T2305849-CT
Mudguard Assy, Front
Claret - 317247 >
13050:-
13
T2305869-TB
Mudguard Assy, Front
Cherry Red/New England White Classic only - 317247 >
13050:-
13
T2305854-PS
Mudguard Assy, Front
Matt Black - Roadster Only > 574812
13050:-
13
T2305851-PU
Mudguard Assy, Front
Phantom Red Haze - Roadster Only - 477033 > 550006
13050:-
13
T2305851-PV
Mudguard Assy, Front
Phantom Blue Haze - Roadster Only - 479185 > 550006
10165:-
13
T2305864-PR
Mudguard Assy, Front
Phantom Black (Red Stripe) - 574813 >
13050:-
13
T2305854-PD
Mudguard Assy, Front
Matt Phantom Black (White Stripe) 574813 >
13050:-
15
T3205254
Bolt, HHF, Lghtd, M8 x20, Slv, åtgår 2st
30:-
16
T2305910
Mudguard Trimmer
N/A to Rocket X
650:-
16
T2305917-PS
Mudguard Trimmer, Matt Black
Rocket X Only
3455:-
17
T3351095
Nut, Plastic, Captive, 9.5 x 9.5
35:-
18
T3331431
Screw, P/HD, Phil, M4 x 18, Slv
20:-
19
T3950100
Triumph Badge, Triangular
N/A to Rocket X
230:-
19
T3951010
Badge, Symbol
Rocket X Only
620:-
20
T3500025
Spire nut, åtgår 2st
60:-
21
T3660088
Trim, Cover Edge, åtgår 2st
150:-
22
T3551283
Washer, M10, 10.5x18x1.6, Slv, åtgår 2st
35:-
23
T3551282
Washer, M8, 8.4 x 15 x 1.6, Slv, åtgår 2st
60:-
24
T3650005
Pad, Adhesive, M/Guard Trimmer, åtgår 2st
40:-
25
T3555004
Washer, 6.4 x 14 x 1.6, åtgår 3st
25:-
26
T3331042
Screw, Pan/Hd, Tx, M6 x 12, Enc, åtgår 2st
25:-
27
T2303244
Decal, Mudguard, Front, White
Matt Phantom Black mudguards
675:-
27
T2303134
Decal, Mudguard, Front, Red
Phantom Black muguards
675:-
