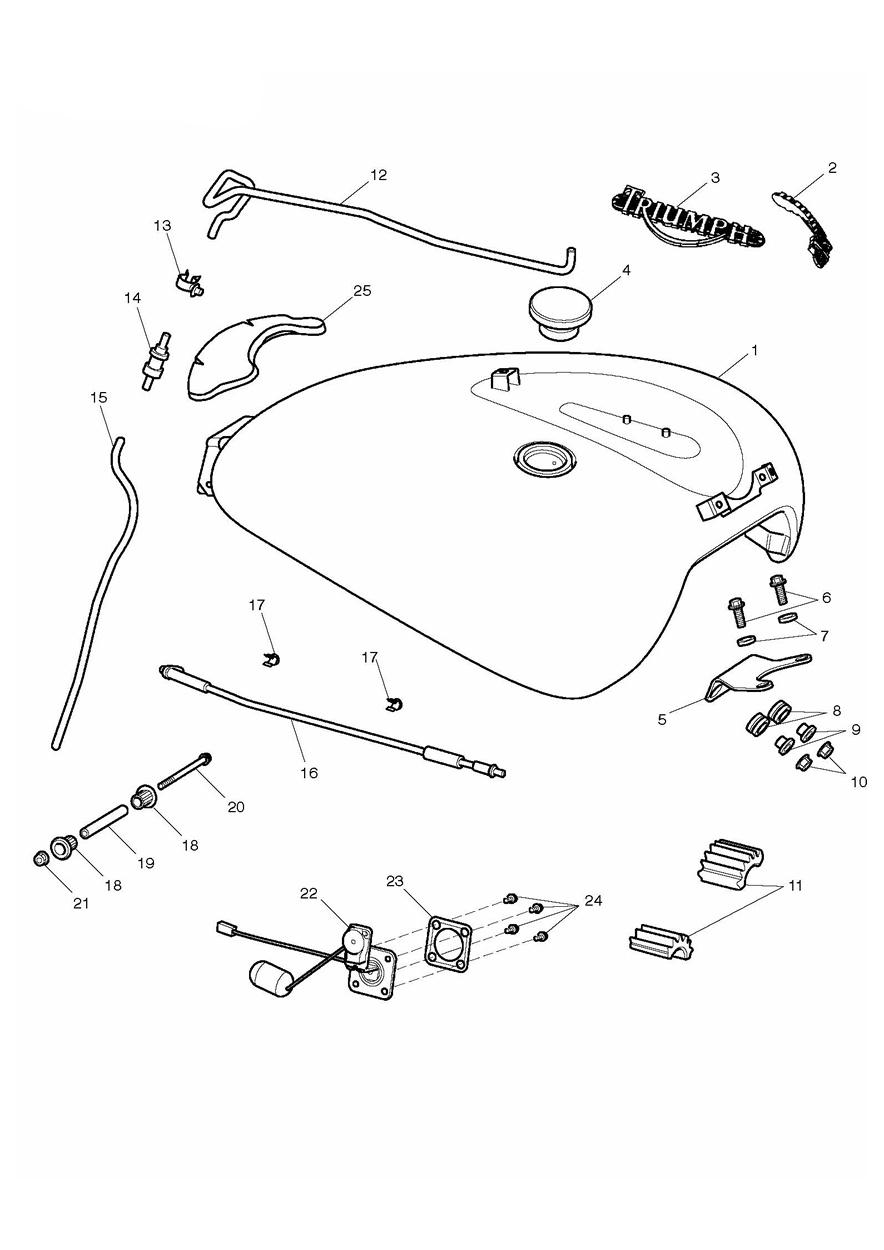

2
T2409030
Kit, Fuel Tank Badge
> 343445 (see Tech News 100)
1005:-
2
T2409010
Badge, Fuel Tank, LH
343446 > 574820
1005:-
2
T2409012
Badge, Fuel Tank, LH
574821 >
965:-
3
T2409030
Kit, Fuel Tank Badge
> 343445 (see Tech News 100)
1005:-
3
T2409020
Badge, Fuel Tank, RH
343446 > 574820
1005:-
3
T2409022
Badge, Fuel Tank, RH
574821 >
965:-
4
T2400597
Fuel Filler Cap, Screw Type
1865:-
5
T2400567
Front Mount Pressing
240:-
6
T3330334
Screw, Tx, Pan/HD, M6 x 16, Slv, åtgår 2st
45:-
7
T3550603
Washer, 6.5 x 20 x 2, åtgår 2st
10:-
8
T3020153
Grommet, 13 x 3 x 10, åtgår 2st
35:-
9
T3010702
Flanged Sleeve, 6.4 x 10 x 8.5, åtgår 2st
95:-
10
T3350305
Locknut, Flgd, M6 x 10, åtgår 2st
35:-
11
T2400478
Rubber, Tank Support, åtgår 2st
340:-
12
T2400780
Formed Hose
240:-
13
T3700072
Cable Clip, Dia 15-16mm BK
80:-
14
T2400074
Roll Over Valve
660:-
15
T2400778
Hose, Twin Wall, Swaged
175:-
16
T2402901
Support, Fuel Tank
265:-
18
T2400446
Rubber Bush, åtgår 2st
55:-
19
T2400449
Sleeve,OD 8.0X91
110:-
20
T3205079
Bolt, HHF, Lghtd, M6 x 105, Slv
55:-
21
T3350003
Locknut, Flanged, M6 x 1.0
20:-
22
T1241194
Level Sender
2895:-
23
T2401225
Seal, Fuel Level Sender, E25
150:-
24
T3330892
Bolt, RHHF, M5 x 15, S5041, åtgår 4st
20:-
25
T2401640
Foam Pad, Fuel Tank
395:-
