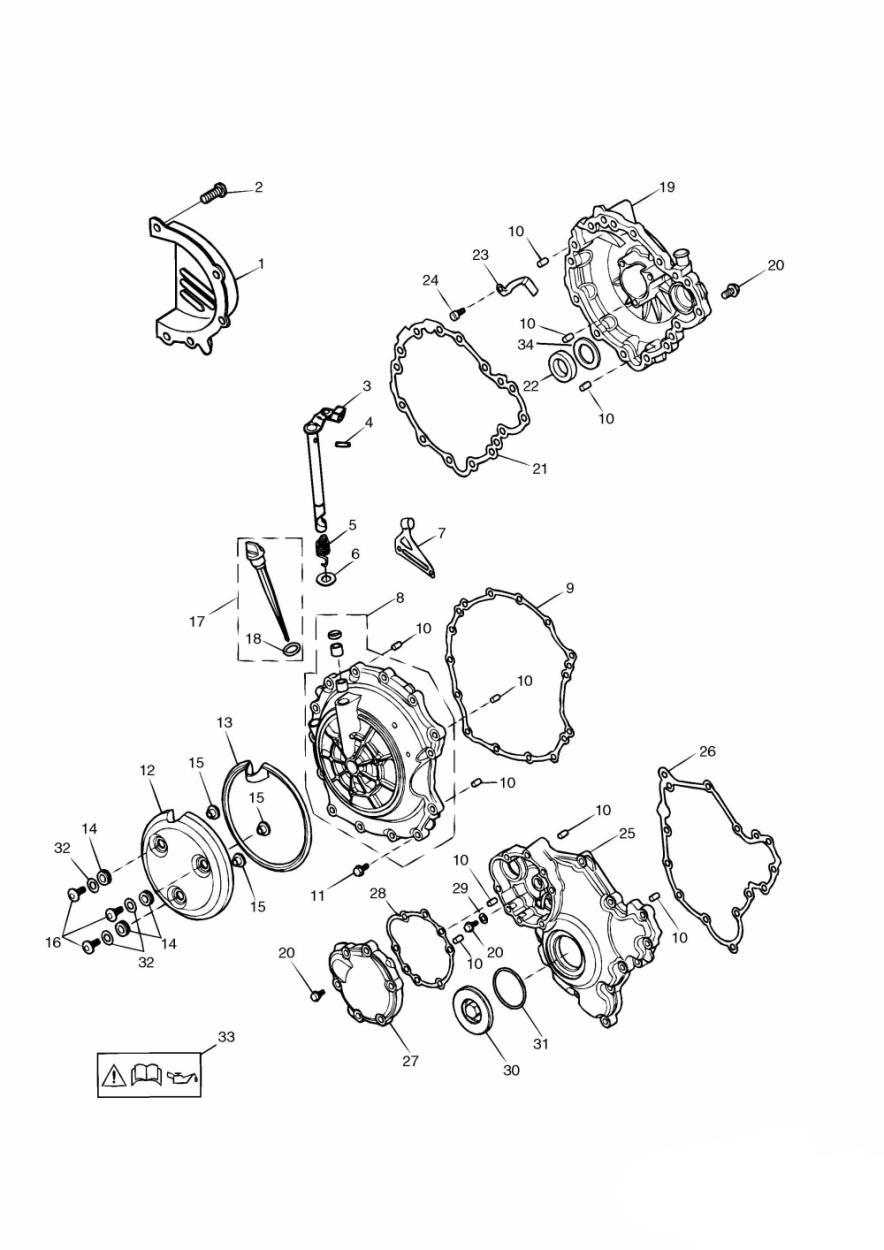

1
T1261020
Sprocket cover
855:-
2
T3202304
Bolt, RHHF, M6 x 20, Slv, åtgår 5st
» 161317
90:-
3
T1170683
Lifter Arm, Clutch
186151 »
1620:-
4
T3000014
Spirol pin
20:-
5
T1170234
Return Spring
100:-
6
T3555014
Washer, 13 x 18 x 1
25:-
7
T1171990
Holder, Clutch Cable
186151 » Clutch Cable
130:-
8
T1261160
Clutch cover assembly
6155:-
9
T1261097
Gasket, Clutch Cover
170:-
10
T3000005
Dowel, Dia 6.0 x 16, åtgår 10st
6mm dia
20:-
11
T3202303
Bolt, RHHF, M6 x 28, Slv, åtgår 14st
» 161317
30:-
11
T3331103
Bolt, HHF, M6 x 28, S/S, åtgår 14st
161318 »
20:-
12
T1261165
Outer casing
Black
870:-
13
T1261166
Gasket
110:-
14
T3020153
Grommet, 13 x 3 x 10, åtgår 3st
35:-
15
T3010702
Flanged Sleeve, 6.4 x 10 x 8.5, åtgår 3st
95:-
16
T3330727
Screw, But/Hd, M6 x 20, Slv, åtgår 3st
M6 x 22mm
60:-
17
T1261180
Oil Filler Cap & Dipstick
285:-
18
T3600136
O ring
20:-
19
T1260003
Cover
Alternator Black
3490:-
20
T3200190
Bolt, RHHF, M6 x 25, SLV, åtgår 32st
» 161317
45:-
20
T3331102
Bolt, HHF, M6 X 25, S/S, åtgår 32st
161318 » M6 x 25mm, s/s
50:-
21
T1261098
Gasket, Metal, Alternator Cover
320:-
22
T3600089
Oil Seal, Rotary
900:-
23
T1261217
Plate, Wire Retainer
65:-
24
T3050341
Screw, Cap/Hd, M5 x 10, Slv
60:-
26
T1261103
Gasket, Crank Cover
285:-
27
T1261202
Starter Cover, Black
Starter Motor Black
2380:-
28
T1261104
Gasket, Starter Cover
285:-
30
T1261223
Plug, M45 x 1.25, Black
545:-
31
T3600222
O ring
185:-
32
T3555026
Washer, 6.4 x 18 x 1.6, åtgår 3st
M6
20:-
33
T3900136
Label, Engine Oil
Oil & filter
50:-
34
T1260858
Spacer
310:-
