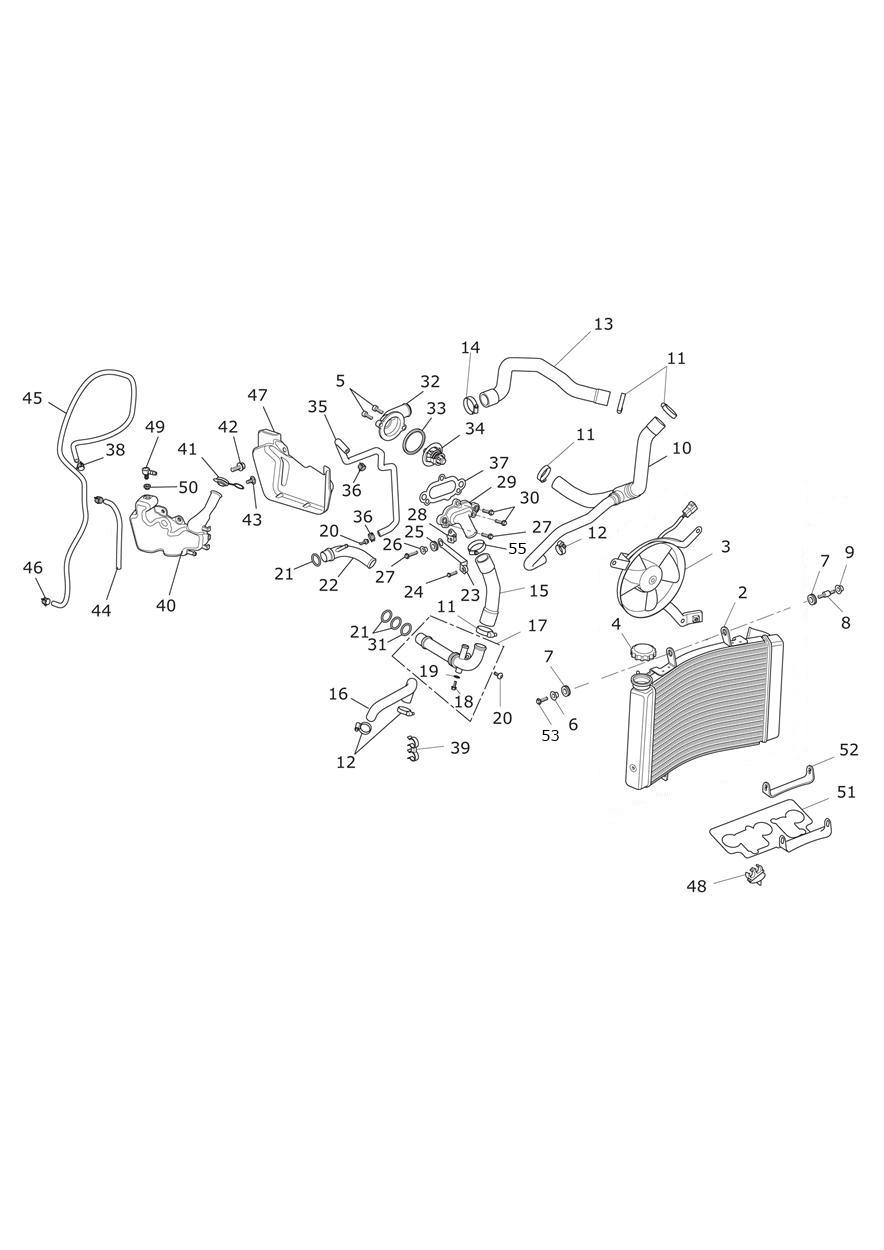

2
T2100840
Radiator
> 597973
13820:-
2
T2101621
Radiator Assy
597974 >
12795:-
3
T2100274
Fan, Cooling, 170 Dia
> 597973
6750:-
3
T2101622
Fan Assy
597974 >
5845:-
4
T2100164
Cap Assy, Radiator
> 597973
325:-
4
T2101623
Cap Assy
597974 >
275:-
5
T3205066
Bolt, HHF, Lghtd, M6 x 20, Slv, åtgår 2st
75:-
6
T3010702
Flanged Sleeve, 6.4 x 10 x 8.5
95:-
7
T3020153
Grommet, 13 x 3 x 10, åtgår 2st
35:-
8
T2100513
Stud, M6, Bar, Radiator
> 626497
135:-
8
T2100498
Stud, M6, Bar, Radiator
626498 >
120:-
9
T3350305
Locknut, Flgd, M6 x 1.0, Slv
35:-
10
T2100841
Hose, Water Inlet, T-Piece
525:-
11
T3707580
Hose Clip, Dia 20-32, åtgår 4st
> 632887
150:-
11
T3706214
Clamp, Constant Tension, Dia 29, åtgår 4st
632888 >
200:-
12
T3707570
Hose, Clip Dia 12-22, åtgår 3st
> 632887
170:-
12
T3706211
Clamp, Constant Tension, Dia 19, åtgår 3st
632888 >
260:-
13
T2100919
Hose, Water, Head to Rad
550:-
14
T3707585
Clip, Hose, Dia 27-35
> 632887
80:-
14
T3706216
Clamp, Constant Tension, Dia 32
632888 >
200:-
15
T2105201
Hose, Water Pump, Outlet
475:-
16
T2105111
Hose, Coolant, Pump Outlet
365:-
17
T2107013
Pipe, Water Pump Outlet
655:-
18
T3200444
Bolt, M6 x 10
180:-
19
T3551111
Copper Washer, M6 x 12
40:-
20
T3205064
Bolt, RHHF, Domed, S/S, M6 x 16, Enc, åtgår 2st
65:-
21
T3600124
O Ring, ID 21.5 x 3, åtgår 3st
60:-
22
T2107012
Pipe, Water Pump Inlet
655:-
23
T2100842
Bracket, Radiator, Lower, Front
145:-
24
T3205063
Bolt, HHF, Lghtd, M6 x 16, Slv
60:-
27
T3205067
Bolt, HHF, Lghtd, M6 x 25, Slv, åtgår 3st
> 626497
45:-
28
T2100168
Bracket, Radiator, Lower, Rear
150:-
29
T2100224
Cover, Water Inlet
535:-
30
T3205066
Bolt, HHF, Lghtd, M6 x 20, Slv, åtgår 2st
75:-
31
T3600190
O Ring, 24 x 2.5
20:-
32
T2100206
Cover, Water Outlet
855:-
33
T2100201
Seal, Thermostat
110:-
34
T2100675
Thermostat
1070:-
35
T2100408
Hose, Bypass, Water
200:-
36
T3700440
Clip, Hose, 11-12.5mm, åtgår 2st
90:-
37
T2100205
Gasket, Water Inlet
55:-
38
T3700077
Clip, 10.5 Rer Oetiker
70:-
39
T2100848
Twin Hose Clip
55:-
40
T2103004
Expansion Tank
1130:-
41
T2101015
Cap, Expansion Tank
35:-
42
T3205254
Bolt, HHF, Lghtd, M8 x20, Slv
30:-
43
T3330858
Bolt, But/Hd, M6 x 15, Shld, Slv
40:-
44
T2103006
Hose, Expansion Tank Overflow
335:-
45
T2103005
Hose, Expansion Tank to Rad
250:-
46
T3700440
Clip, Hose, 11-12.5mm, åtgår 2st
> 684904
90:-
47
T2103007
Cover, Expansion Tank, Mldg
470:-
48
T3700235
Multi Brake Hose Clip
110:-
49
T2100433
Elbow, Overflow, Quickfit
100:-
50
T3450141
Grommet, TPE, Quickfit
35:-
51
T2106001
Air Deflector
> Eng No 627856
940:-
52
T2106002
Retainer
> 626497
45:-
52
T2106003
Retainer
626498 >
50:-
53
T3205070
Bolt, HHF, Lghtd, M6 x 30, Slv
626498 >
35:-
55
T3707580
Hose Clip, Dia 20-32
> 632887
150:-
55
T3706215
Clamp, Constant Tension, Dia 30
632888 >
200:-
