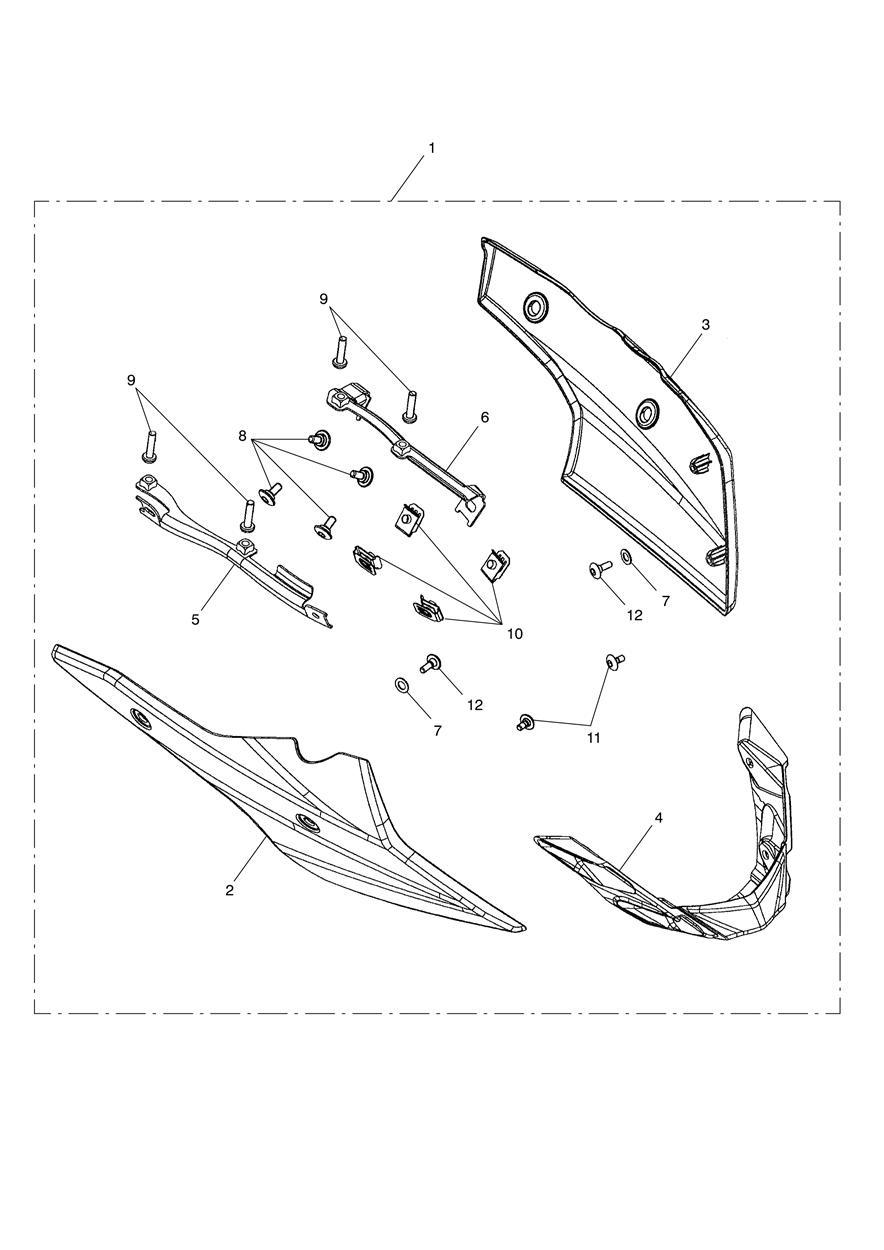

1
A9708345-PR
Belly Pan Kit
Phantom Black
UTGÅTT
1
A9708345-JV
Belly Pan Kit
Caribbean Blue
919:-
2
T2307337-PR
Bellpan, RH, Coloured
Phantom Black - If T2307332 needs to be replaced then part number T2307337 must be ordered as a replacement. Original fasteners (T3331075 Qty 1 and T3331076 Qty 1) must also be replaced by T3331075 Qty 2
3045:-
2
T2307337-NW
Bellypan, RH, Coloured
Crystal White - If T2307332 needs to be replaced then part number T2307337 must be ordered as a replacement. Original fasteners (T3331075 Qty 1 and T3331076 Qty 1) must also be replaced by T3331075 Qty 2
3160:-
3
T2307336-PR
Bellypan, LH, Coloured
Phantom Black - If T2307331 needs to be replaced then part number T2307336 must be ordered as a replacement. Original fasteners (T3331075 Qty 1 and T3331076 Qty 1) must also be replaced by T3331075 Qty 2
3045:-
3
T2307336-NW
Bellypan, LH, Coloured
Crystal White - If T2307331 needs to be replaced then part number T2307336 must be ordered as a replacement. Original fasteners (T3331075 Qty 1 and T3331076 Qty 1) must also be replaced by T3331075 Qty 2
3160:-
3
T2307336-JV
Bellypan, LH, Coloured
Caribbean Blue - If T2307331 needs to be replaced then part number T2307336 must be ordered as a replacement. Original fasteners (T3331075 Qty 1 and T3331076 Qty 1) must also be replaced by T3331075 Qty 2
3045:-
4
T2309607
Bellypan, Centre, Moulding
595:-
5
T2309771
Bracket, Bellypan, Front, RH
275:-
6
T2309772
Bracket, Bellypan, Front, LH
275:-
7
A9910369
Washer, 7.5 x 13.25 x 1.0, Slv, åtgår 2st
40:-
8
T3330858
Bolt, But/Hd, M6 x 15, Shld, Slv, åtgår 4st
40:-
9
T3331041
Screw, Pan/Hd, Tx, M6 x 25, Enc, åtgår 4st
20:-
10
T3350111
Nut, Captive, M6, åtgår 4st
85:-
11
T3331075
Bolt, But/Hd, M5 x 14, Slv, åtgår 2st
80:-
12
T3331076
Bolt, But/Hd, M5 x 16, Shld, Enc, åtgår 2st
110:-
