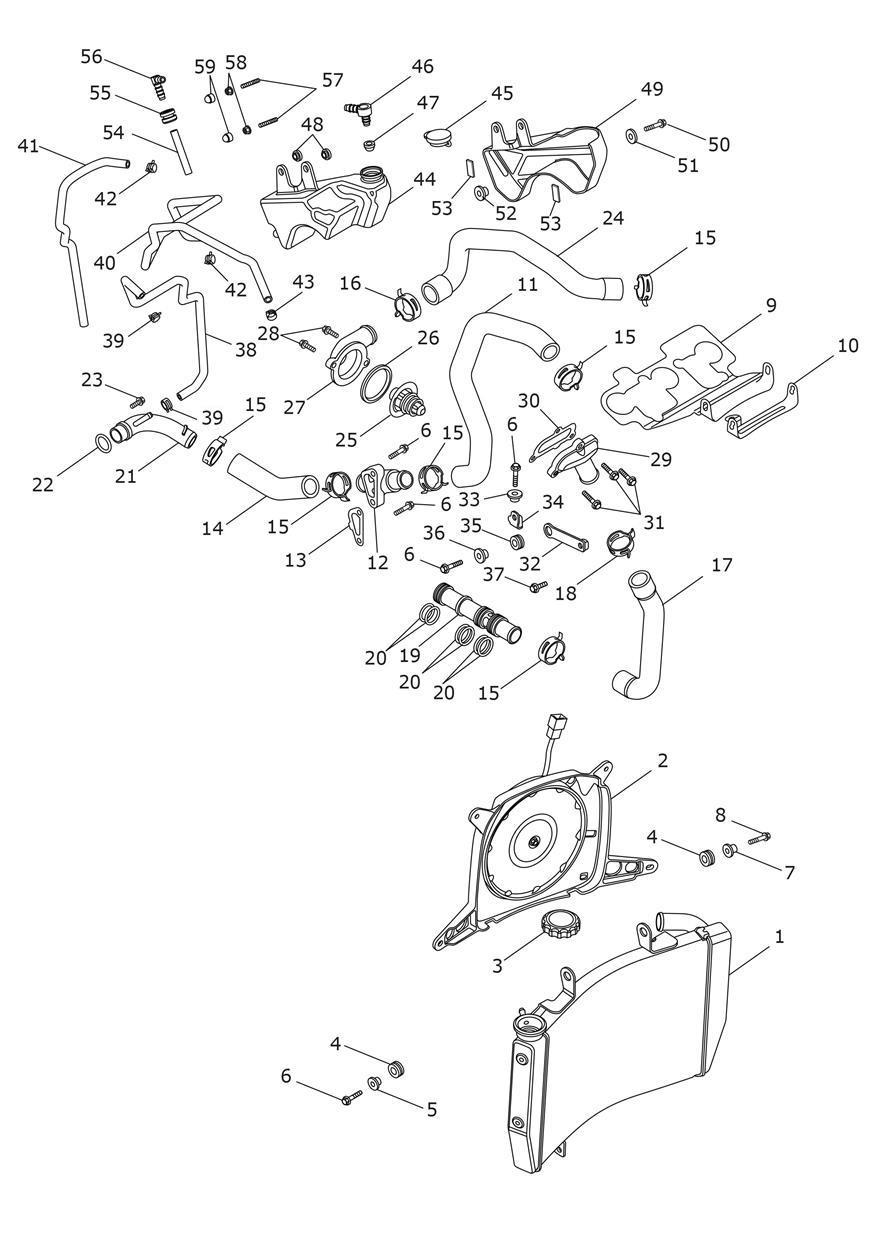

2
T2101744
Fan and Cowl Assembly
6810:-
3
T2101623
Cap Assy
275:-
4
T3020153
Grommet, 13 x 3 x 10, åtgår 2st
35:-
5
T3010702
Flanged Sleeve, 6.4 x 10 x 8.5
95:-
6
T3205070
Bolt, HHF, Lghtd, M6 x 30, Slv, åtgår 5st
35:-
7
T3010701
Flanged Sleeve, 6.4 x 10 x 14.5
90:-
8
T3205082
Bolt, HHF, Lghtd, M6 x 35, Slv
40:-
9
T2106008
Air Deflector
1005:-
10
T2106003
Retainer
50:-
11
T2109001
Hose, Radiator to T-Piece
555:-
12
T2104100
T-Piece, Water, Black
385:-
13
T2100435
Gasket, T-Piece, Water
60:-
14
T2109091
Hose, T-Piece to Pump
555:-
15
T3706214
Clamp, Constant Tension, Dia 29, åtgår 6st
200:-
16
T3706216
Clamp, Constant Tension, Dia 32
200:-
17
T2100425
Hose, Formed, Water Pump Outlet
480:-
18
T3706215
Clamp, Constant Tension, Dia 30
200:-
19
T2100426
Pipe, Water, Pump Outlet
700:-
20
T3600290
O Ring, 23.7 x 2.0, åtgår 6st
25:-
21
T2107012
Pipe, Water Pump Inlet
655:-
22
T3600124
O Ring, ID 21.5 x 3
60:-
23
T3205064
Bolt, RHHF, Domed, S/S, M6 x 16, Enc
65:-
24
T2101992
Hose, Water, Head to Radiator
590:-
25
T2100675
Thermostat
1070:-
26
T2100201
Seal, Thermostat
110:-
27
T2100206
Cover, Water Outlet
855:-
28
T3205066
Bolt, HHF, Lghtd, M6 x 20, Slv, åtgår 2st
75:-
29
T2104020
Cover, Water Inlet
525:-
30
T2102800
Gasket, Water Inlet
55:-
31
T3205066
Bolt, HHF, Lghtd, M6 x 20, Slv, åtgår 3st
75:-
32
T2100875
Bracket, Radiator, Lower
160:-
33
T3010702
Flanged Sleeve, 6.4 x 10 x 8.5
95:-
34
T2100492
Bracket, Radiator, Lower, Rear
245:-
37
T3205063
Bolt, HHF, Lghtd, M6 x 16, Slv
60:-
38
T2100408
Hose, Bypass, Water
200:-
39
T3700440
Clip, Hose, 11-12.5mm, åtgår 2st
90:-
40
T2109035
Hose, Expansion Tank to Radiator
285:-
41
T2109040
Hose, Expansion Tank Overflow
915:-
42
T3700440
Clip, Hose, 11-12.5mm, åtgår 2st
90:-
43
T3700077
Clip, 10.5 Rer Oetiker
70:-
45
T2101015
Cap, Expansion Tank
35:-
46
T2100433
Elbow, Overflow, Quickfit
100:-
47
T3450141
Grommet, TPE, Quickfit
35:-
48
T3010145
Flanged Sleeve, M6 x 9 x 5.1, åtgår 2st
45:-
49
T2100912
Cover, Expansion Tank
540:-
50
T3331041
Screw, Pan/Hd, Tx, M6 x 25, Enc
20:-
51
T3552004
Washer, M6 x 14 x 2.0
30:-
52
T3010059
Flanged Sleeve, M6 x 9 x 3.2
50:-
53
T3660171
Pad, Rubber, 30 x 10 x 5, thick, åtgår 2st
135:-
54
T2102490
Hose, Expansion Tank, 65mm
175:-
55
T3021200
Grommet, Dia 14x4, Panel
55:-
56
T2100405
Elbow, ID 8.0 Tube
25:-
57
T3100020
Stud, M6, åtgår 2st
35:-
58
T3350003
Locknut, Flanged, M6 x 1.0, åtgår 2st
20:-
59
T3450124
Cap, åtgår 2st
95:-
