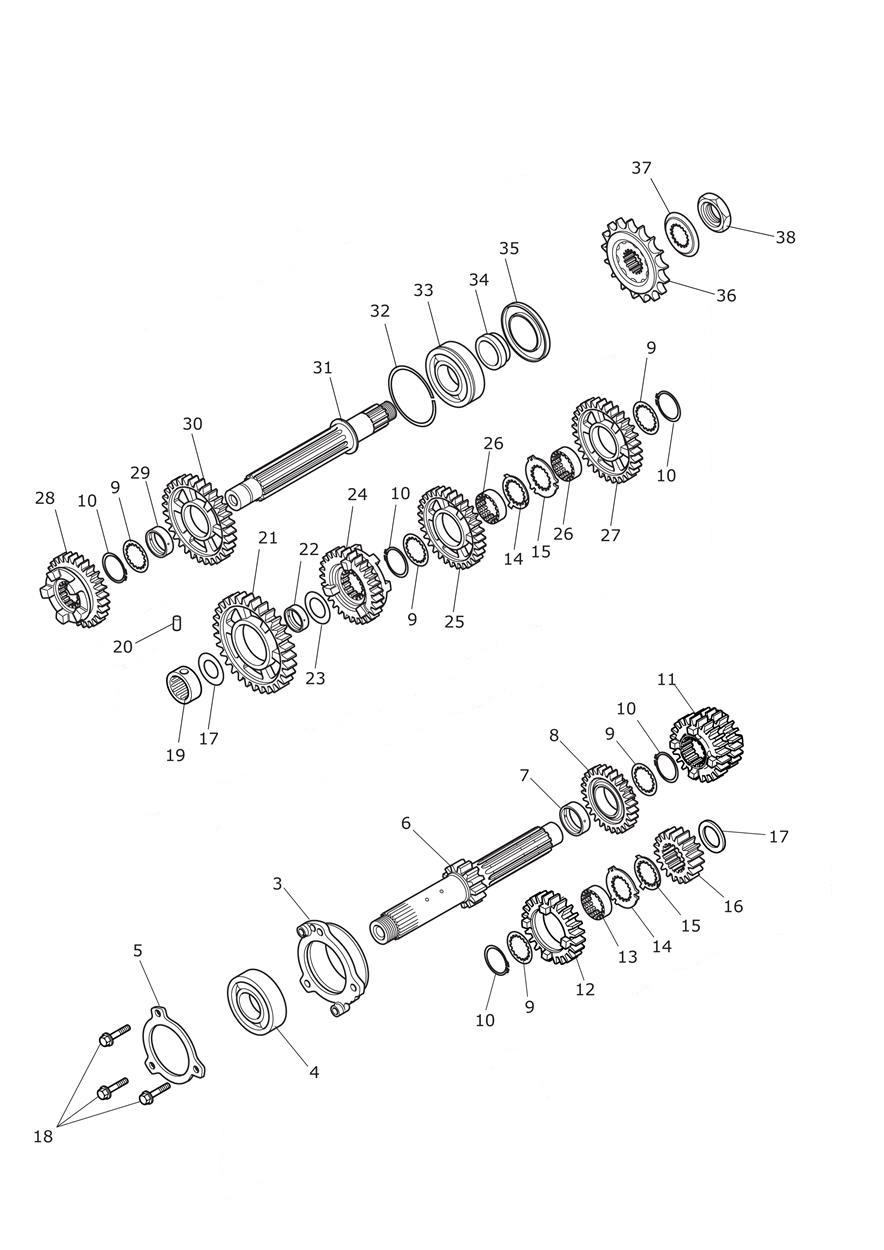

3
T1180299
Input Shaft Bearing Housing
330:-
4
T3800123
Bearing Ball, 25 x 62 x 17
1745:-
5
T1180297
Bearing Retainer Plate
325:-
6
T1180094
Gearbox Shaft, Input & 1st, 16t
5765:-
7
T1180354
Bush, 28 x 31 x 11.2, Input 5th
920:-
8
T1180114
Gear, Input, 5th, 22T
1415:-
9
T1180331
Washer, Splined, 28 x 34 x 1.5, åtgår 5st
105:-
10
T3500058
Circlip, 28mm, åtgår 5st
135:-
11
T1180115
Gear, Input, 3rd/4th, 24T/21T
2030:-
12
T1180116
Gear, Input, 6th, 23T
1550:-
13
T1180357
Collar, Splined, 18x11.5, Input6
1090:-
14
T1180347
Washer, Splined, 28mm, åtgår 2st
105:-
15
T1180348
Washer, Lock, 28mm, åtgår 2st
110:-
16
T1180352
Gear, Input, 2nd, 21T
1090:-
17
T1180334
Washer, Thrust, 20mm, åtgår 2st
105:-
18
T3205065
Bolt, HHF, Lghtd, M6 x 20, Enc, åtgår 3st
95:-
19
T3800068
Bearing, Needle Roller, Dowel
2260:-
20
T3000032
Dowel, Dia 6 x 10.8
110:-
21
T1180118
Gear, Output, 1st, 37T
2195:-
22
T1180359
Bush, 22 x 25 x 11, Output 1st
1090:-
23
T1180358
Washer, Thrust 22mm
150:-
24
T1180119
Gear, Output, 5th, 25T
2155:-
25
T1180124
Gear, Output, 4th, 27T
2010:-
26
T1180368
Collar, Spline, 28 x 9, Output 3, åtgår 2st
1090:-
27
T1180123
Gear, Output, 3rd, 36T
1610:-
28
T1180121
Gear, Output, 6th, 24T
1645:-
29
T1180367
Bush, 28 x 31 x 8.4, Output, 2nd
985:-
30
T1180362
Gear, Output 2nd, 39T
2155:-
31
T1180360
Shaft, Gearbox, Output
7405:-
32
T3800094
Ring Bearing Retainer
60:-
33
T3800066
Bearing 6305, High Duty
3385:-
34
T1180369
Spacer, Sprocket
195:-
35
T3600113
Seal, Oil 35 x 62 x 5
385:-
36
T1180182
Sprocket, Output, 16T
475:-
37
T1180328
Washer, Tab, Sprocket
165:-
38
T1180183
Nut, M20 x 1.5, 6 Deep
185:-
