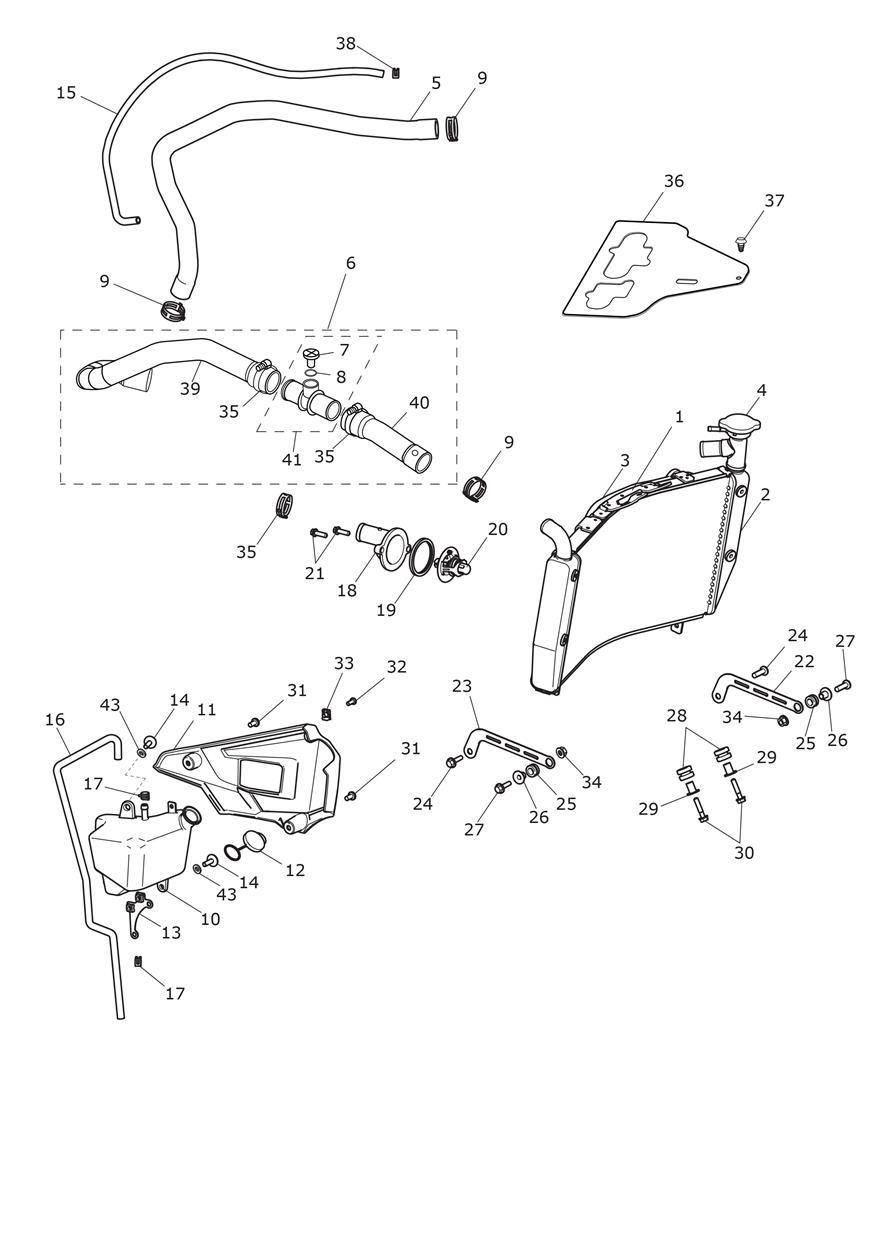

1
T2100954
Cowl, Fan
1230:-
2
T2100951
Radiator, Curved
18415:-
3
T2100952
Fan, Cooling
6665:-
4
T2100081
Cap Assy, Radiator
230:-
5
T2100544
Hose, Radiator to Pump
770:-
6
T2100910
Hose, Thermostat to Radiator
> Eng No 579787
1235:-
7
T3330677
Bleed Screw, M6 x 16
> Eng No 579787
115:-
8
T2100909
O Ring, 11.20 x 1.78 Dia
Eng No 579788 >
65:-
9
T3707580
Hose Clip, Dia 20-32, åtgår 3st
> 630346
150:-
9
T3706214
Clamp, Constant Tension, Dia 29, åtgår 3st
630347 >
200:-
10
T2108355
Expansion Tank
1725:-
11
T2100461
Cover, Expansion Tank
890:-
12
T2101015
Cap, Expansion Tank
35:-
13
T2100462
Bracket, Expansion Tank
185:-
14
T3330334
Screw, Tx, Pan/HD, M6 x 16, Slv, åtgår 2st
45:-
15
T2100636
Pipe, Radiator to Expansion Tank
785:-
16
T2100637
Pipe, Expansion Tank Overflow
375:-
17
T3700440
Clip, Hose, 11-12.5mm, åtgår 3st
90:-
18
T2100479
Cover, Water Outlet, åtgår 2st
785:-
19
T2100201
Seal, Thermostat
110:-
20
T2100676
Thermostat
1035:-
21
T3205066
Bolt, HHF, Lghtd, M6 x 20, Slv, åtgår 2st
75:-
22
T2100901
Bracket, LH, Radiator
555:-
23
T2100902
Bracket, RH, Radiator
555:-
24
T3205254
Bolt, HHF, Lghtd, M8 x20, Slv, åtgår 2st
30:-
25
T3020030
Grommet, Rubber, åtgår 2st
145:-
26
T3010052
Flanged Sleeve, M6 x 12 x 10.75, åtgår 2st
85:-
27
T3205067
Bolt, HHF, Lghtd, M6 x 25, Slv, åtgår 2st
45:-
28
T3021200
Grommet, Dia 14x4, Panel, åtgår 2st
55:-
29
T3010701
Flanged Sleeve, 6.4 x 10 x 14.5
90:-
30
T3200148
Bolt, M6 x 30, Silver, åtgår 2st
75:-
31
T3331042
Screw, Pan/Hd, Tx, M6 x 12, Enc, åtgår 2st
25:-
32
T3330649
Screw, Pan/Hd, Tx, M5 x 12, Slv
80:-
34
T3350305
Locknut, Flgd, M6 x 1.0, Slv, åtgår 2st
35:-
35
T3707585
Clip, Hose, Dia 27-35
> Eng No 579787
80:-
35
T3706216
Clamp, Constant Tension, Dia 32, åtgår 3st
630347 >
200:-
37
T3450299
Firtree, M6
60:-
38
T3700077
Clip, 10.5 Rer Oetiker
70:-
39
T2100906
Hose, T'Stat to Bleed Spigot
Eng No 579788 >
1235:-
40
T2100907
Hose, Bleed Spigot to Rad
Eng No 579788 >
1235:-
41
T2100905
Spigot, Coolant Bleed
Eng No 579788 >
290:-
43
T3555012
Washer, 6.4 x 16 x 2, åtgår 2st
60:-
