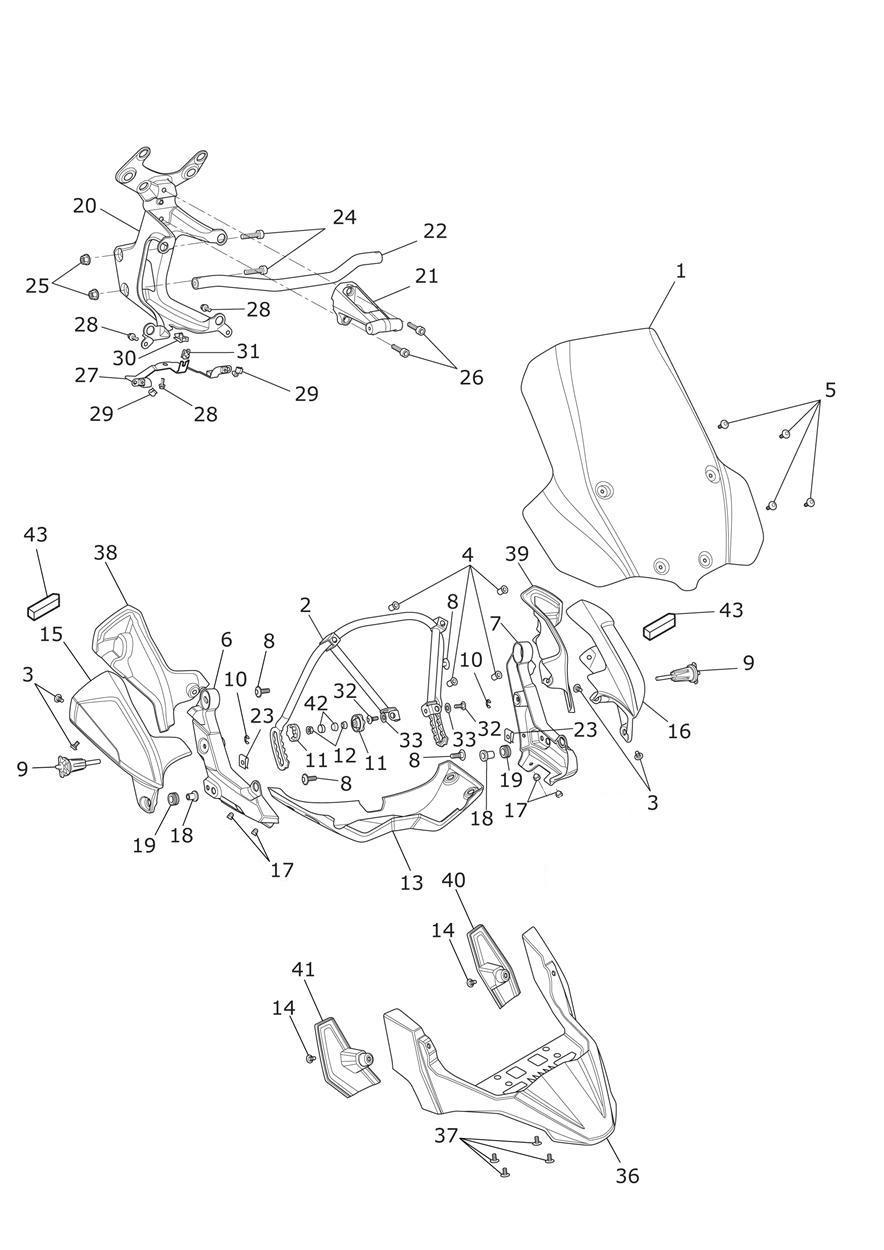

1
T2303310
Screen, Moulding
All Except US & CA
6810:-
1
T2303317
Screen, Moulding
US & CA Only
6605:-
2
T2303375
Screen Subframe
3220:-
3
T3330943
Screw, But/Hd, M5 x 14, Slv, åtgår 4st
85:-
4
T3350050
Wellnut, M5, åtgår 4st
110:-
5
T3330941
Screw, But/Hd, Skt, M5 x 16, Slv, åtgår 4st
110:-
6
T2303396
Headlight Support Casting, RH
1275:-
7
T2303397
Headlight Support Casting, LH
1275:-
8
T3330727
Screw, But/Hd, M6 x 20, Slv, åtgår 4st
60:-
9
T2301327
Thumbwheel, Adjustable Screw, åtgår 2st
80:-
10
T3500207
Circlip, Ext 8 X 0.89, åtgår 2st
50:-
11
T2303880
Clamp, Screen Frame, åtgår 2st
65:-
12
T3350003
Locknut, Flanged, M6 x 1.0, åtgår 2st
20:-
13
T2303315
Moulding, Chin Panel
555:-
14
T3330943
Screw, But/Hd, M5 x 14, Slv, åtgår 2st
85:-
15
T2303311-HS
Cover Panel, RH
Matt Khaki
6020:-
15
T2303311-NW
Cover Panel, RH
Crystal White/Matt Graphite; 603096 >
6020:-
15
T2303311-LC
Cover Panel, RH
Graphite; 603096 > 627681
6020:-
16
T2303312-HS
Cover Panel, LH
Matt Khaki
6020:-
16
T2303312-NW
Cover Panel, LH
Crystal White/Matt Graphite; 603096 >
6020:-
16
T2303312-LC
Cover Panel, LH
Graphite; 603096 >
6020:-
17
T3350010
Locknut, Flgd, M5, åtgår 4st
35:-
18
T3013360
Flanged Sleeve, M6 x 12, åtgår 2st
110:-
19
T3020153
Grommet, 13 x 3 x 10, åtgår 2st
35:-
20
T2303404
Cockpit Subframe
5715:-
21
T2303931
Casting, Screen Frame, Support
2075:-
22
T2303865
Brace, Subframe, Front
1190:-
23
T3350129
Nut, Captive, M5, åtgår 2st
55:-
24
T3050324
Screw, Cap/Hd, M8 x 1.25 x 35, Slv, åtgår 2st
70:-
25
T3350004
Locknut, Flanged, M8 x 1.25, åtgår 2st
45:-
26
T3051097
Screw, Cap/Hd, M8 x 25, Silver, åtgår 2st
70:-
27
T2303308
Bracket, High Mudguard Mount
130:-
28
T3330891
Bolt, RHHF, M5 x 0.8 x 12, S5041, åtgår 3st
55:-
29
T3700162
Clip, Cable/Pipe, åtgår 2st
20:-
30
T3351052
Nut, Captive, 4-5.5mm
75:-
31
T3350129
Nut, Captive, M5
55:-
32
T3331076
Bolt, But/Hd, M5 x 16, Shld, Enc, åtgår 2st
110:-
33
T3550315
Nylon Washer, ID9, OD19, åtgår 2st
50:-
36
T2303334-HS
Mudguard, Upper
Matt Khaki
6025:-
36
T2303334-LS
Mudguard, Upper
Matt Graphite; 603096 > 627681
6025:-
36
T2303334-LC
Mudguard, Upper
Graphite; 603096 >
6025:-
36
T2303334-NW
Mudguard, Upper
Crystal White; 627682 >
6025:-
37
T3330726
Screw, Btn/Hd, M6 x 12, Slv, åtgår 4st
65:-
38
T2303359
Infill, Cockpit, RH
1950:-
39
T2303358
Infill, Cockpit, LH
1805:-
40
T2303363
Infill, High Mudguard, LH
785:-
41
T2303364
Infill, High Mudguard, RH
785:-
42
T3450510
Cap, Nut, 7mm A/F, åtgår 2st
90:-
43
T3660171
Pad, Rubber, 30 x 10 x 5, thick, åtgår 2st
135:-
