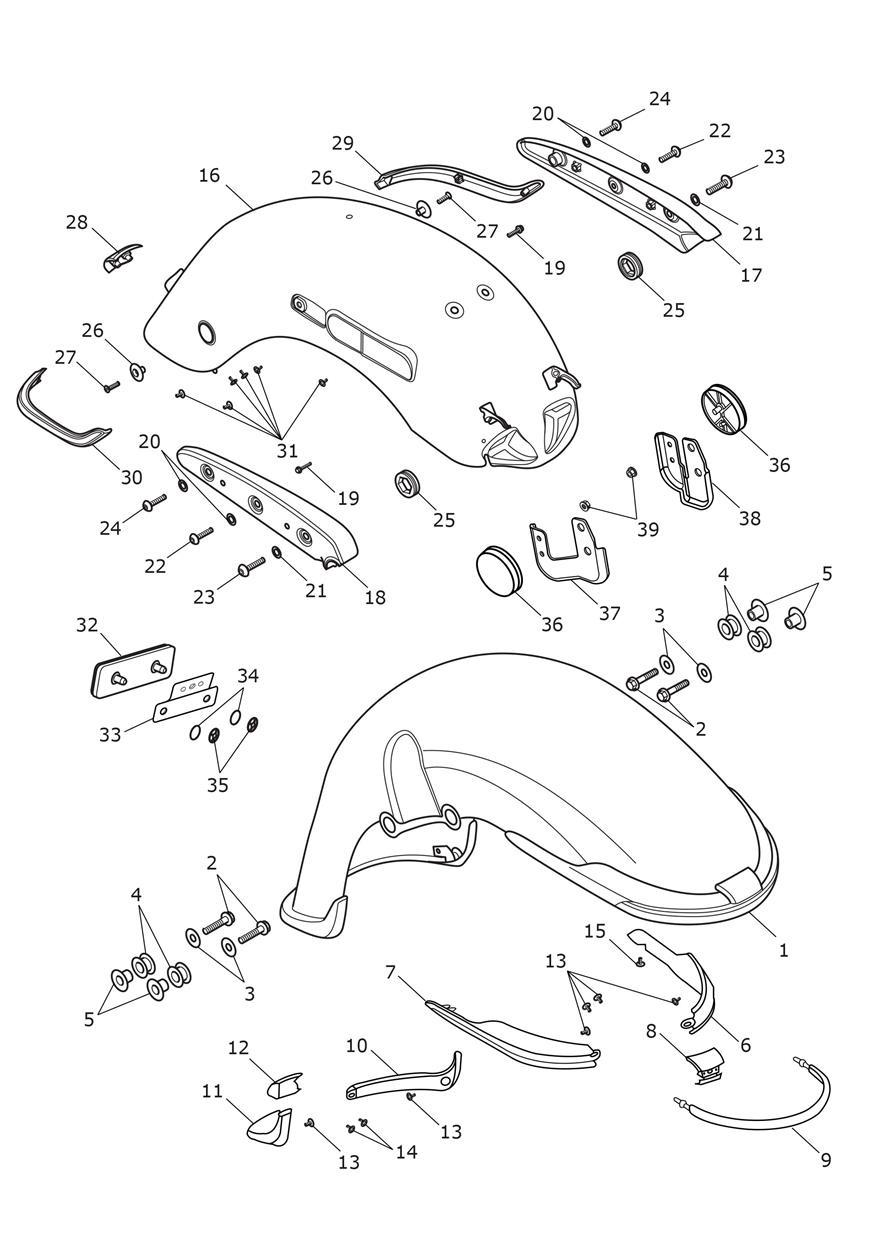

1
T2302284-CD
Front Mudguard
Lava Rad / Phantom Black
13050:-
1
T2302284-JD
Front Mudguard
Caspian Blue / Crystal White > 713760
13050:-
1
T2302284-PG
Front Mudguard
Jet Black; 676648 >
13050:-
1
T2302284-NW
Front Mudguard
Crystal White / Phantom Black - 713761 >
13050:-
2
T3202319
Bolt, HHF, M8 x 35, Slv, åtgår 4st
45:-
3
T3555033
Washer, 8.4 x 24 x 2, åtgår 4st
45:-
4
T3020037
Grommet OD19 THK9 ID12, åtgår 4st
40:-
5
T3010235
Flanged Sleeve, M8, åtgår 4st
285:-
6
T2308112
Embellisher, LH, Front
1190:-
7
T2308113
Embellisher, RH, Front
1190:-
8
T2308114
Embellisher, Centre, Front
1395:-
9
T2308115
Rubber, Embellisher, Front
405:-
10
T2308116
Embellisher, LH, Rear
1065:-
11
T2308117
Embellisher, RH, Rear
1065:-
12
T2308118
Embellisher, Centre, Rear
435:-
13
T3331436
Screw, S/Tap, Pan, Torx, 4 x 11, PT, åtgår 6st
20:-
14
T3331414
Screw, S/Tap, Torx, 5 x 16, åtgår 2st
25:-
15
T3330955
Screw, But/Hd, M5 x 14, Slv, Enc, åtgår 2st
135:-
16
T2301164-JD
Rear Mudguard Assembly
Caspian Blue / Crystal White > 713760
16490:-
16
T2301164-CD
Rear Mudguard Assembly
Lava Rad / Phantom Black
16490:-
16
T2301164-PG
Rear Mudguard Assembly
Jet Black; 676648 >
16490:-
16
T2301164-NW
Rear Mudguard Assembly
Crystal White / Phantom Black - 713761 >
16490:-
17
T2306409
Pressing, Mudgard Support, LH
1480:-
18
T2306408
Pressing, Mudguard Support, RH
1480:-
19
T3205067
Bolt, HHF, Lghtd, M6 x 25, Slv, åtgår 2st
45:-
20
T3551282
Washer, M8, 8.4 x 15 x 1.6, Slv, åtgår 4st
60:-
21
T3551283
Washer, M10, 10.5x18x1.6, Slv, åtgår 2st
35:-
22
T3205882
Bolt, Truss/Hd, TRX, M8 x 35, åtgår 2st
135:-
23
T3205883
Bolt, Truss/Hd, TRX, M10 x 45, åtgår 2st
135:-
24
T3205881
Bolt, Truss/Hd, TRX, M8 x 30, åtgår 2st
130:-
25
T2306414
Grommet, RSU Mount, åtgår 2st
45:-
26
T3010180
Flanged Sleeve, CSK, M6, åtgår 2st
265:-
27
T3331196
Screw, Skt, C'sk, M6 x 25, Slv, åtgår 2st
70:-
28
T2305913
Rear Mudguard Embellisher, Centre
785:-
29
T2305912
Rear Mudguard Embellisher, LH
1235:-
30
T2305911
Rear Mudguard Embellisher, RH
1275:-
31
T3331436
Screw, S/Tap, Pan, Torx, 4 x 11, PT, åtgår 6st
20:-
33
T2701999
Bracket, Rear Reflector
135:-
34
T3600109
O Ring, ID 5.6 x 2.3, åtgår 2st
95:-
35
T3550253
Washer, Dia 5 mm, Retaining, åtgår 2st
20:-
36
T2700464
Reflector, Red, Circular, åtgår 2st
115:-
37
T2705500
Reflector Bracket, RH
135:-
38
T2705501
Reflector Bracket, LH
955:-
39
T3350010
Locknut, Flgd, M5, åtgår 2st
35:-
