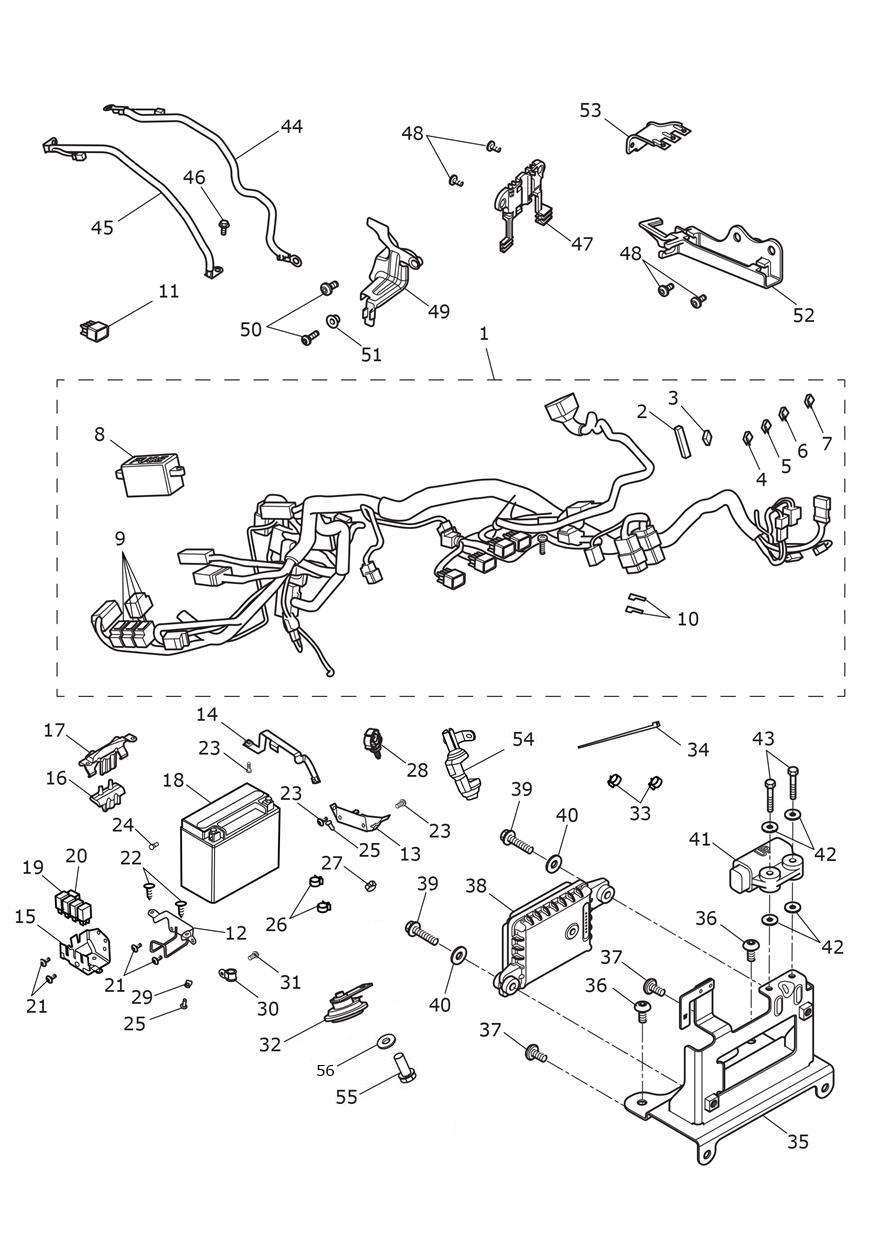

1
T2500716
Main Harness, ABS
13985:-
2
T2501300
Tool, Mini Fuse Replacement
2015:-
3
T2500805
Fuse, 30A, åtgår 2st
25:-
4
T2501305
Fuse, Mini, 5A
85:-
5
T2501310
Fuse, Mini, 10A, åtgår 4st
85:-
6
T2501315
Fuse, Mini, 15A, åtgår 5st
85:-
7
T2501320
Fuse, Mini, 20A, åtgår 2st
85:-
8
T2501335
Fusebox Lid
260:-
9
T2506025
Relay, Grommet, åtgår 4st
80:-
10
T2500583
Boot, Connector, Horn, åtgår 2st
670:-
11
T2506015
Blanking Plug, EXBV
780498 > - UK, GR, IN, DE, ES, FR, IT, NL, PT & SE
115:-
12
T2509922
Bracket, Harness, RH
250:-
13
T2509911
Bracket, Harness, LH
250:-
14
T2501699
Bracket, ECU
235:-
15
T2509934
Bracket, Harness, Relay
295:-
16
T2505998
Rubber, Battery Bracket
715:-
17
T2505999
Bracket, Battery
1395:-
18
T2502450
Battery
2100:-
21
T3331043
Screw, Pan/Hd, Tx, M6 x 12, Slv, åtgår 4st
20:-
22
T3450255
Plug, Retainer, Plastic, åtgår 2st
25:-
23
T3331044
Screw, Pan/Hd, Tx, M6 x 16, Slv, åtgår 3st
20:-
24
T3700091
Clip cable
25:-
25
T3701098
Firtree, Dia 5 x 18, åtgår 2st
90:-
26
T2046017
Clip, Cable, Black, åtgår 2st
100:-
27
T2040884
Clip, Twin, Speedo, Brake
85:-
28
T3700101
Clip, Cable, Dia 8-18
200:-
29
T3701094
P Clip, Dia 4.4, Black
55:-
30
T3700192
P Clip, ID 8mm
190:-
31
T3202304
Bolt, RHHF, M6 x 20, Slv
90:-
32
T2500103
Horn Assy, Low-Tone
785:-
33
T3700182
Clip, Omega, 18mm x 14mm, åtgår 2st
70:-
34
T3700016
Cable Tie, 370 Long
20:-
35
T2500762
RCU Cradle
265:-
37
T3330858
Bolt, But/Hd, M6 x 15, Shld, Slv, åtgår 4st
40:-
38
T2504061
Immobiliser ECU, with RF 434
All Markets Except JP
22105:-
38
T2504071
Immobiliser ECU, with RF 315
JP Only
22105:-
39
T3331041
Screw, Pan/Hd, Tx, M6 x 25, Enc, åtgår 2st
20:-
40
T3555004
Washer, 6.4 x 14 x 1.6, åtgår 2st
25:-
41
T2502405
Switch, Fall Detection
1480:-
42
T3555021
Washer, 4.3 x 16 x 1, åtgår 4st
25:-
43
T3330390
Screw, H/Hd, M4 x 25, Slv, Enc, åtgår 2st
45:-
44
T2501314
Subharness, Battery, Positive
295:-
45
T2501304
Subharness, Battery, Negative
295:-
46
T3205062
Bolt, HHF, Lghtd, M6 x 12, Slv
70:-
47
T2500616
Block, Hose Routing
195:-
48
T3331517
Screw, P/HD Tx, Shld, M6 x 16, S, åtgår 5st
20:-
49
T2500369
Moulding, Hose Routing
115:-
50
T3331234
Screw, Torx, P/H, M6 x 20, Slv
90:-
51
T3010702
Flanged Sleeve, 6.4 x 10 x 8.5
95:-
52
T2500563
Guide, Alternator Cable
190:-
53
T2501414
Bracket, Front Sub Harness
395:-
54
T2505995
Cover, Connector, Rubber
105:-
55
T3205081
Bolt, HHF, Lghtd, M6 x 28, Enc
25:-
