1
T2051174

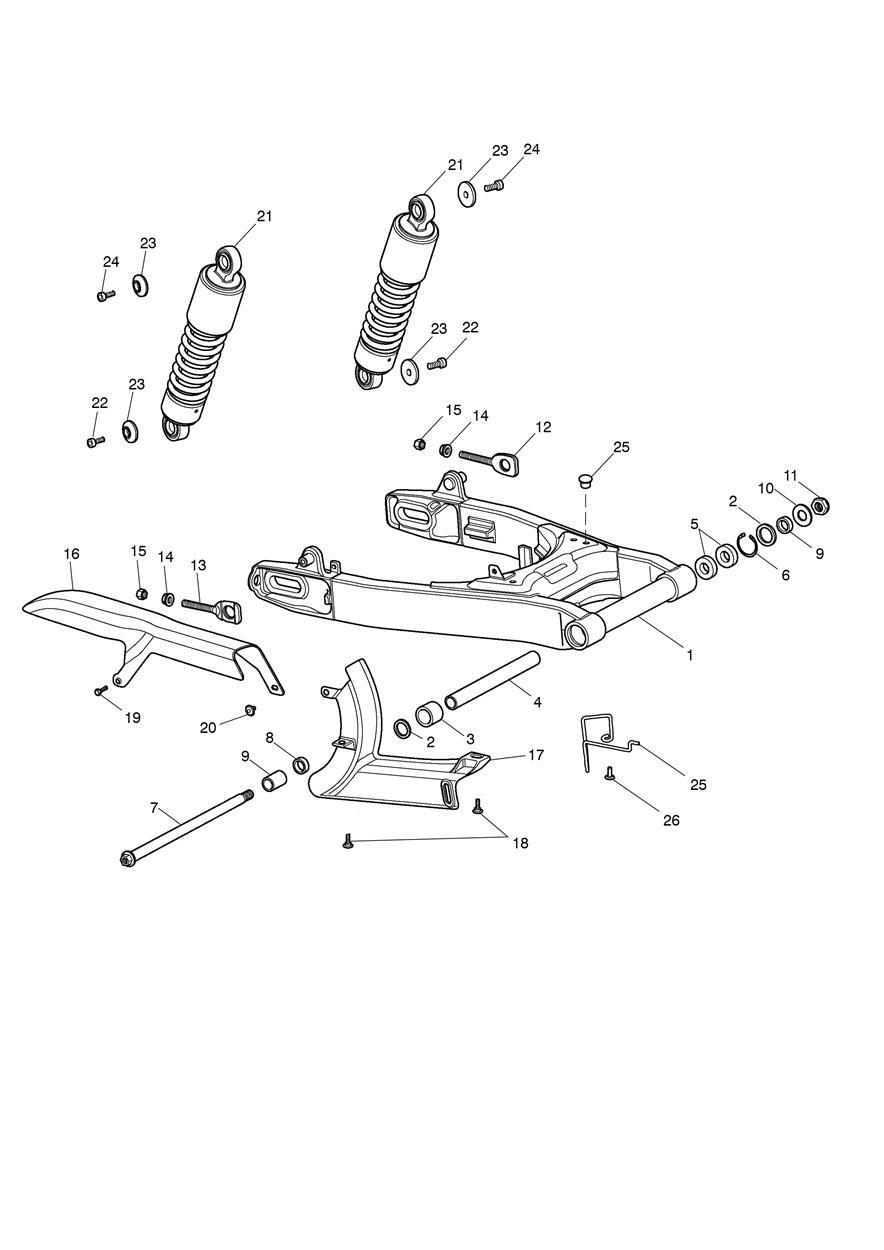

Swingarm Assembly
Inc Bearings Etc, items 2, 3, 4, 5 & 6
22125:-
2
T3600044
Oil Seal, 35 25 4, åtgår 2st
170:-
3
T3800014
Roller bearing
235:-
4
T2054089
Spacer, 22 x 17 x 212
340:-
5
T3800081
Bearing, Ball, 17 35 10, åtgår 2st
315:-
6
T3500204
Circlip, Int, 35 x 1.5
20:-
7
T2054088
Spindle, Swingarm
1600:-
8
T2054255
Sleeve, Ground, 25 17 28.5
215:-
9
T2054063
Spacer, 25 x 17 x 8.5, åtgår 2st
130:-
10
T3551240
Washer, M16 x 34 x 3
45:-
11
T3350155
Locknut, Thin, M16
175:-
12
T2050567
Belt Adjuster, LH
545:-
13
T2050568
Belt Adjuster, RH
545:-
14
T3350203
Nut, M10 x 1.25, Flanged, åtgår 2st
40:-
15
T3350302
Nut, M10, Slv, åtgår 2st
20:-
16
T2054015
Belt Guard, Upper
1415:-
17
T2050301
Belt Guard Lower
820:-
18
T3330848
Bolt, But/Hd, M6 x 21, Shld, Slv, åtgår 2st
95:-
19
T3205064
Bolt, RHHF, Domed, S/S, M6 x 16, Enc
65:-
20
T3330726
Screw, Btn/Hd, M6 x 12, Slv
65:-
21
T2050702
RSU, Preload Adjustable, åtgår 2st
12510:-
22
T3050158
Screw, Cap/Hd, M8 x 20, Enc, åtgår 2st
80:-
23
T2056777
Finisher, RSU, Styled, åtgår 4st
795:-
24
T3050158
Screw, Cap/Hd, M8 x 20, Enc, åtgår 2st
80:-
24
T3050410
Screw, Cap/HD, M8 x 25, Slv, Enc, åtgår 2st
Longer screw required with dresser bars
105:-
25
T2057999
Wire Guide, Rear Brake Line
130:-
26
T3331191
Screw, Pan/Hd Tx, M6 x 20, Enc, Slv
35:-
