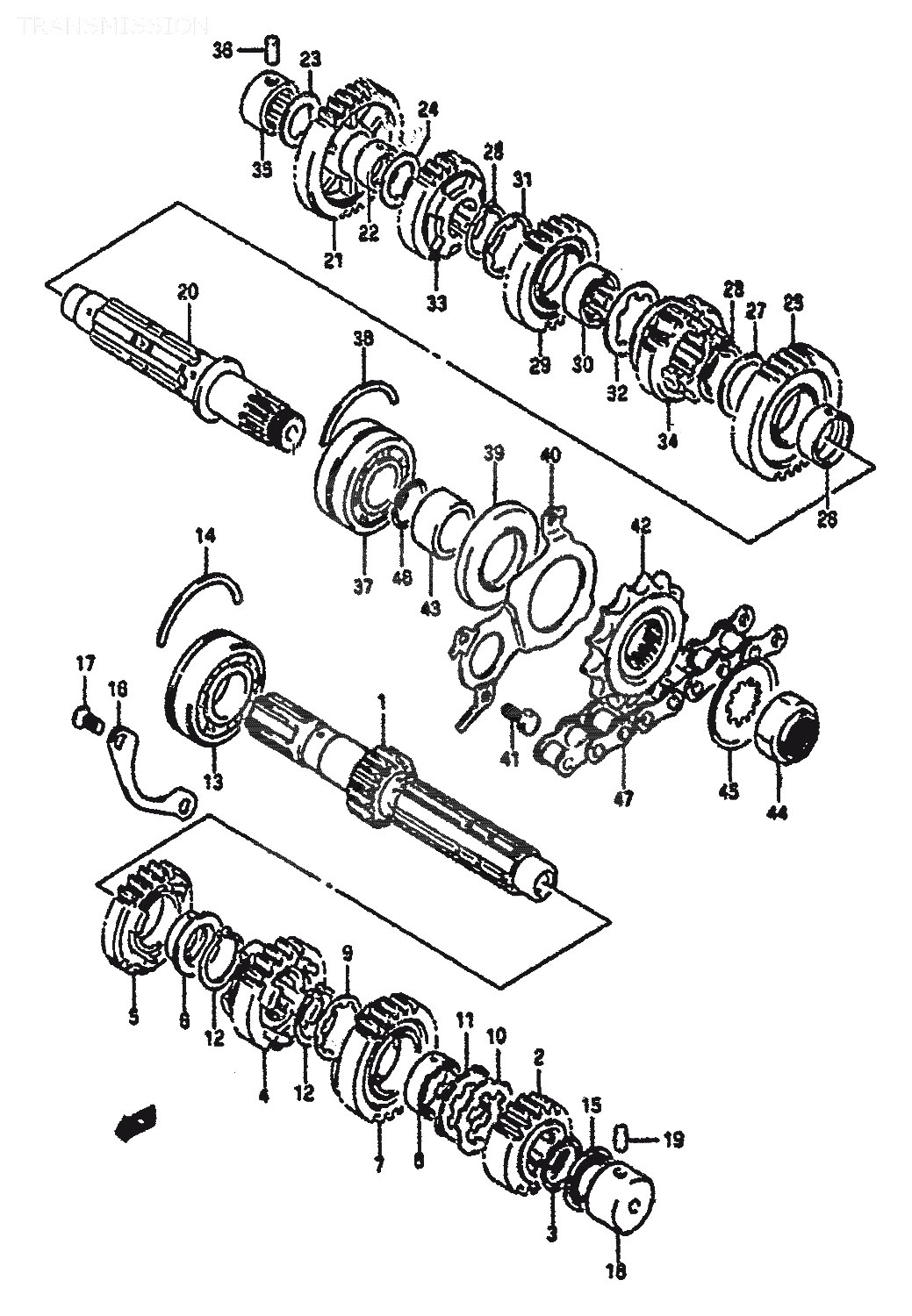

1
24121-40C03
COUNTERSHAFT (NT:13)
*
2
24221-40C00
GEAR, 2ND DRIVE (NT:19)
1505:-
3
09380-25013
CIRCLIP, 2ND DRIVE
44:-
8
24252-48B00
BUSH
295:-
9
09167-25021
WASHER, 3RD DRIVEN
40:-
10
09167-25013
LOCK WASHER, 3RD DRIVEN
37:-
11
09169-25001
WASHER, 3RD DRIVEN LOCK
29:-
12
09380-25003
CIRCLIP, åtgår 2st
45:-
13
09262-25051
BEARING, RH
1158:-
14
09390-62011
C RING
*
15
09285-20006
SEAL, OIL
84:-
16
24741-27A00
RETAINER, CNTR SHAFT
147:-
17
02122-06167
SCREW, åtgår 2st
21:-
18
09263-20049
BEARING, CNTR SHAFT, LH
1109:-
19
04221-07129
PIN
25:-
20
24131-40C10
DRIVESHAFT
*
23
08211-20341
WASHER, RH
30:-
24
08211-22341
WASHER, LH
40:-
26
09300-28002
BUSH, 2ND DRIVEN
288:-
27
08211-28361
WASHER
49:-
31
09167-28001
WASHER (28.1X38X1.0)
49:-
32
09167-28008
WASHER, LH (T:2)
99:-
35
09263-20040
BEARING, DRIVE SHAFT RH
865:-
36
04221-07209
PIN, DRIVE SHAFT BRG RH
27:-
37
09267-25011
BEARING, DRIVE SHAFT LH
2987:-
38
09390-62011
C RING
*
39
09283-34005
SEAL, DRIVE SHAFT OIL
248:-
40
24751-40C01
RETAINER, DRIVE SHAFT
144:-
42
27510-48B00
SPROCKET, ENGINE (NT:15)
1075:-
44
09159-20004
NUT, ENGINE SPROCKET
212:-
45
09167-25019
WASHER (25X40X1.4)
28:-
46
09280-25001
O RING (D:1.0,ID:24.5)
43:-
47
27600-40C20-118
CHAIN, DRIVE (RK532GSV2X118LE
*
* Kontakta kundtjänst för prisuppgift: 018-15 60 00
